Norton 7500 Door Closer With Regular Arm

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Norton 7500 Door Closer With Regular Arm
More from Norton
Price: $341.95 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
1 - Dark Bronze - 690,LH Left Hand,Not Required
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

1-844-809-3667

Sales
Technical Support
Product Description:



alarm lock logo 7500 Door Closer With Regular Arm



  • ANSI A156.4, Grade 1
  • 10-year limited warranty
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum body
  • 2-1/8" (54mm) projection
  • 1-1/2" (38mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • Staked valves
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Backcheck positioning valve
  • NorGlide® Fluid
  • Molded plastic cover
  • All standard arm applications allow doors to swing 180°, conditions permitting
  • Self-drilling screws
  • Full-size templates
Norton Closers
Norton Closer

Norton Closers
Norton Closers
Norton Closers
Norton Closers


  Specifications
;


Finishes
All door closers are painted in water-borne acrylics. All steel parts, arms, brackets and mounting plates are powder coated. The closers will withstand 100 hours of salt spray.

Aluminum Alloy Housing
Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interaction with steel components and operating conditions.

Rack & Pinion Operation
Provides a smooth constant control of the door through its full opening and closing cycle. 180° door swing can be achieved when door, frame, hardware and arm function do not limit door swing.

Non-Handed
With few exceptions all series 1600BC and series 1601 door closers are non-handed and can be installed on either right or left hand swing doors. Pinion shaft extends vertically through the closer body in both directions. This permits the closer to be positioned on either right or left hand doors for most applications. Some options (such as Parallel Rigid hold open arms) will require that the hand of the closer be specified.

Sweep Speed Control Valve
Allows adjustment of door speed from the door's full open position down to approximately 10° from the closed position.

Latch Speed Control Value
Allows adjustment of door speed from approximately 10° down to the door’s fully closed position.

Adjustable Backcheck Cushion Valve
Provides control of the door in the opening cycle, beginning at approximately 75° of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

Warranty
These closers carry a limited ten-year warranty against defects and a limited lifetime warranty on the aluminum housing.

Closer Fluid
NorGlide® door closer fluid is a specially formulated hydraulic fluid that contains lubricity and anti oxidation agents that provide optimum performance and efficiency. This fluid complements the interaction of the door closer's aluminum housing with its steel and zinc components, while maintaining stable viscosity to allow the door closer to perform in temperatures ranging from extremely high to as low as -40° F.


  Handing Chart



handing chart

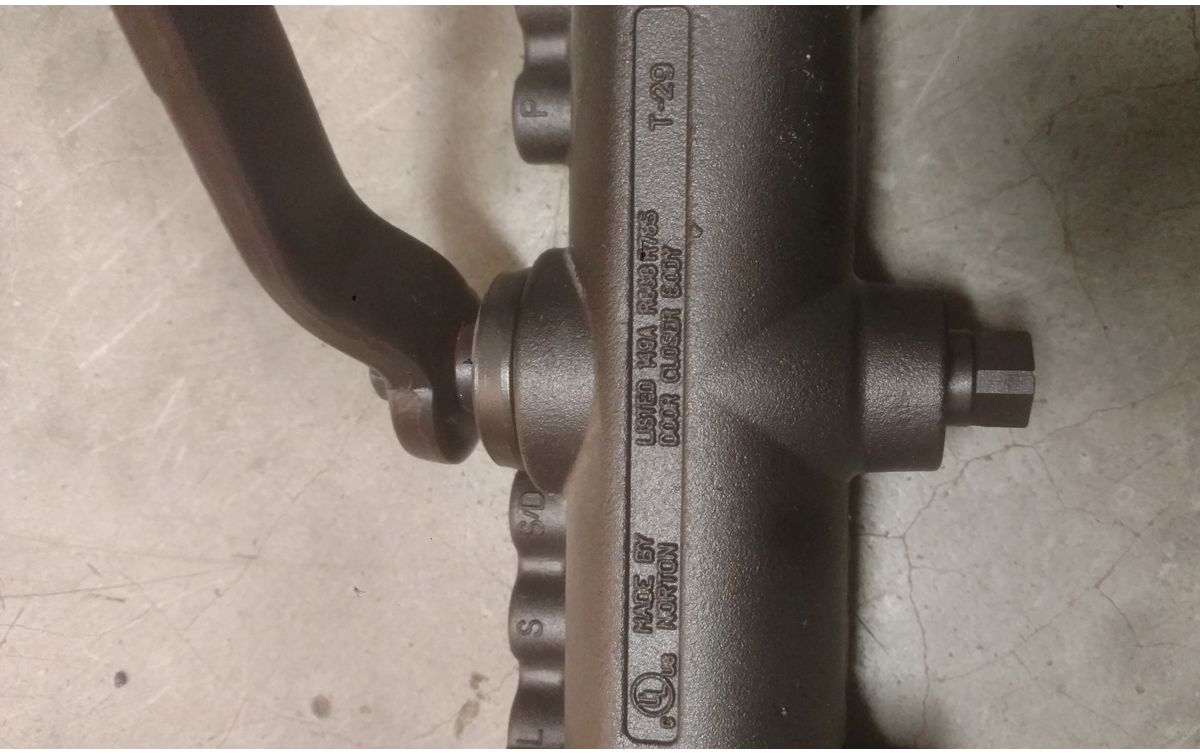

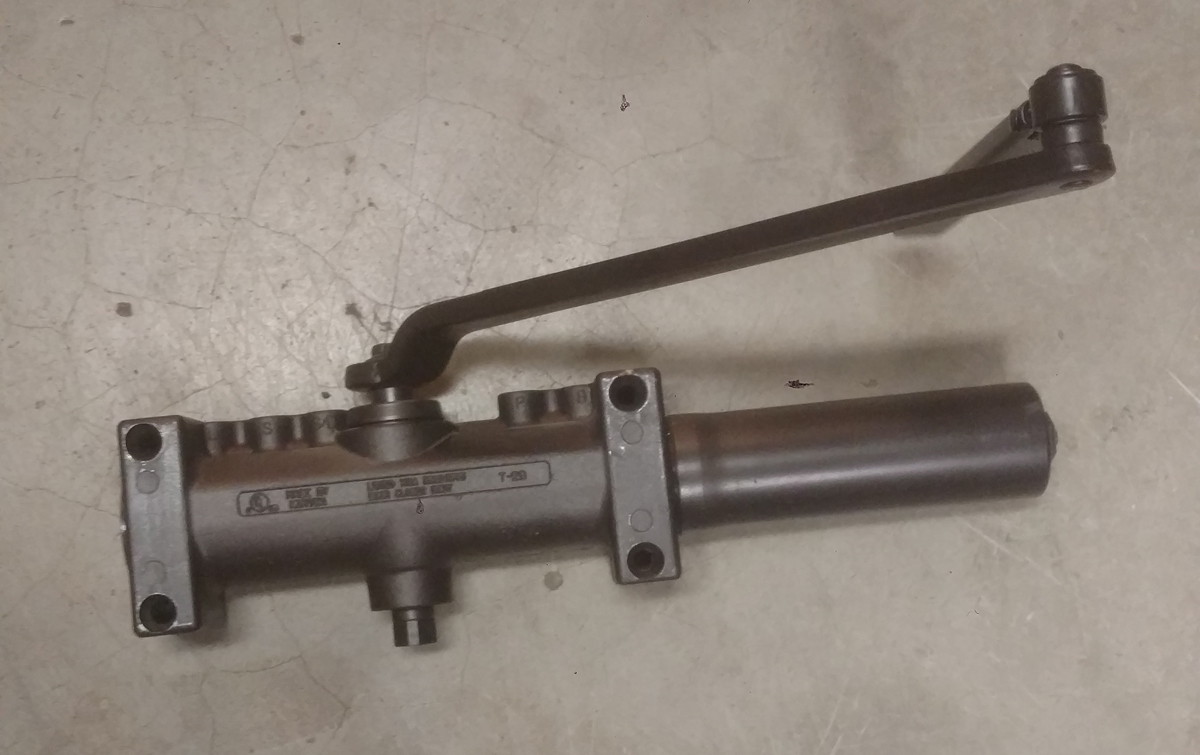

Customer Supplied Photos
Norton 7500 Door Closer With Regular Arm
(Click to Enlarge)

Questions and Answers
Q: Do they make a heavy duty door closer that can go on the exterior side of a building exit door? If so, standard aluminum color is fine and how much?
A: They do make models with a:

CWF (cold weather fluid) closer fluid is a specially formulated multi-viscosity hydraulic fluid that contains lubricity and anti-oxidation agents that provide optimum performance and efficiency. This fluid complements the interaction of the door closer's aluminum housing with its steel and brass components, while maintaining stable viscosity to allow the door closer to perform in temperatures ranging from extremely high to as low as -40° F.

SS (Corrosion-resistant) Corrosion-Resistant Door Closer is prepared with molded plastic cover are available for use where corrosive conditions exist. This series is provided with brass adjustment valves, a 440 grade stainless steel pinion shaft, an all-aluminum body and bronze closer arm bushings; all other components are of 302/303 grade stainless steel. Fasteners are 8-18 stainless steel. This product is available for standard regular arm, top jamb and parallel arm, non-hold open, applications only.

The Norton 7500SS is an example of this closer and can be seen here:

Click Here

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: What LCN closer is comparable to the Norton 7500?
A: According to LCN:

The Falcon SC71 is an exact replacement for the Norton 7500.

Q: I loosened a screw to much and it came out with fluid. can i replace the fluid or do i need to buy a new unit
A: Once the fluid has come out of the valve the only options would be to buy a new door closer body or send us yours for repair.
Q: Want to install Norton 7500/7700 on fire exit (Non Hold Open and no Delayed Action). Door is RHR and needs Parallel Arm installation. I dont know if I need to be concerned about difference between 7500 and 7700 - and what the difference is. What should I order and do you have it in stock? PS - Have a Norton 7702 (without mounting hardware) that had been used on an interior door. Little fluid leakage so not comfortable re-using it, plus mounting hardware is missing. Would hate to throw away - can send in for rebuild.
A: The 7700 was a Sized Door Closer where as the 7500 is a Multi-Sized Door Closer as mentioned on page 6 of this product cut sheet as seen here:

Download File
