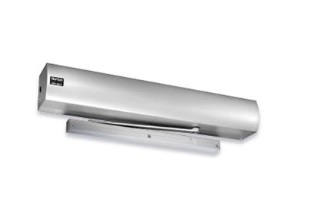

Norton 5910-694

The 5900 Series is a full-featured, extremely quiet, low energy door operator designed for moderate to high traffic doors.

This cost-effective operator is available for either push- or pull-side mounting and is ideal for any application designed to meet the Americans with Disabilities Act (A.D.A). “One touch" programming combined with the operators' built-in ability to calibrate door mass, offers Norton customers a smart, dependable solution.

Functions:

• Power Assist - When unit is activated, it allows the door to be opened manually with a force less than 5 lbs
• Push and Go (selectable) - As the door is manually opened, the operator “senses" movement and opens door to the full-open position.
• Obstruction Detection

- Open ; Door closes if it hits an obstruction while opening

- Close (Stop on Stall) ; Door will stop once it hits an obstruction and rest against the obstruction until obstruction is removed

• Motor Startup Delay - Delays operator opening
• Infinite Hold Open - Door will hold open at set position until power is turned off
• Power Latch (selectable) - Increases latch power

Features:

• Low Energy Power Door Operator
• Pull Side Mount
• Rigid Arm and Slide Track
• Buffered stop assembly in slide track
• 85° to 110° templated door openings in 5° increments
• 1/8" (3mm) maximum frame revea
• Minimum ceiling clearance: 5-5/8" (143mm)
• Minimum door width: 32" (81cm); maximum 48" (122cm)
• Minimum frame face: 2" (5mm)
• Minimum top rail: 1-5/8" (41mm)
• Finish: Medium Bronze Painted
• Product color shown may vary

Certifications:

• ANSI/BHMA A156.19 certified
• UL325 certified
• UL10C listed for positive pressure fire test


• Images may not represent actual product and finish.
• Packing & Sold as: Each.
