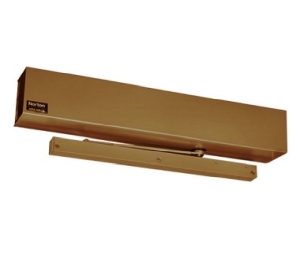

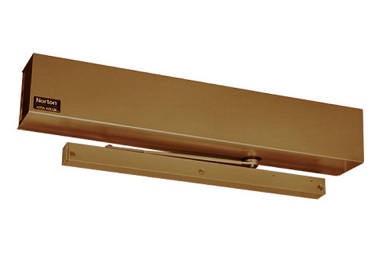

Norton 5710-691

The 5700 Series design is based on ease and simplicity

This unit installs in minutes rather than hours and consists of three basic components: inverter, motor and Norton's 1601 closer body. Quiet and dependable, the 5700 meets the requirements of the Americans with Disability Act (A.D.A.) and ANSI/BHMA A156.4. Available push- or pull- side mounting, this unit is perfect for applications that don't require special features but demands reliability.

Series Information:

• Door Controls (interior) (exterior) swinging door(s) shall be of rack and pinion design contained within a precision cast aluminum housing
• Door closing force shall be adjustable to ensure adequate closing control
• Door closing speed shall be controlled by independent hydraulic adjustment valves in the sweep and latch range of the closing cycle
• Door Operator shall provide conventional door closer opening forces unless the power operator motor is activated
• Door Operator shall provide conventional door closing forces at all times except in the event of power outage during powered door open cycle
• Door Operator opening force and speed shall be adjustable by independent electronic adjustment to ensure adequate opening control per accessibility codes
• Door Operator shall have an adjustable hydraulic backcheck valve to cushion the door speed if door is opened violently
• Door Operator shall have a manual adjustment to locate both full open and full closed door positions
• Maximum door open shall be adjustable and capable to a maximum 180° conditions permitting. [(Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e., wall switch, etc.)]
• Door operator shall have adjustable hold open time capability in range from 5 to 30 seconds

Features:

• Door Operator
• Type:Surface
• Technology: Electrohydraulic
• Mounting Location: Pull Side
• Mounting Style: Slide Track
• Arm Type: Slide Track Arm Standard
• Hand: Non-Handed
• Degree Swing: 110¼
• Closer Size: Adjustable 3-6
• Door Size: 29" Minimum
• Finish: Light Bronze Painted
• Application: Slide Track Arm, Pull Side
• Limited Warranty: 2 Years
• Fire Rated: 3 Hours

Certifications:

• C-UL US listed for use on fire and smoke barrier doors
• Meets ADA requirements
• ANSI/BHMA A156.19 certified
• Meets ANSI/BHMA A156.4 requirements


• Images may not represent actual product and finish.
• Packing & Sold as: Each.
