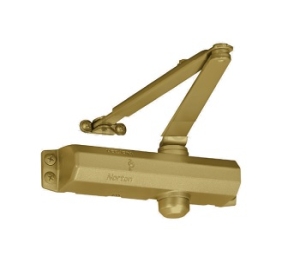

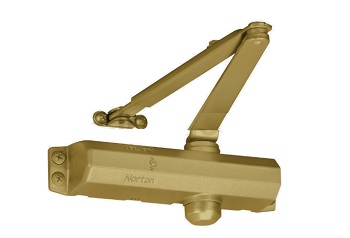

Norton 1701BC-696

Norton 1700 Series Door Closers are multi-feature closers whose compact design is ideal for application on interior doors.

This narrow-stile closer has distinctive lines that harmonize with most decors. It is available with a full cover to provide an installation with compatible appearance to other door closers with covers. The Norton 1700 Series Door Closer offers an economical alternative for those installations where a more heavy-duty closer is not necessary.

Series Information:

• Closers for interior doors shall be full rack-and-pinion type with cast aluminum alloy shell
• Closer shall be non-handed to permit installation on either hand of door
• Closer to be supplied with brackets to allow regular arm, parallel arm or top jamb mounting
• Closer to have non-critical valves to independently regulate sweep speed (and) latch speed (and backcheck cushioning.)
• The forearm bracket shall permit a 15% power adjustment by rotating the forearm and bracket 180° at the door or frame

Features:

• Door Closer
• Type:Surface
• Technology: Hydraulic
• Mounting Location: Push or Pull Side
• Mounting Style: Tri Mount (regular arm, top jamb and parallel arm mounting)
• Arm Type: Regular Arm
• Hand: Non-Handed
• Closer Size: 1
• Back Check: Adjustable
• Finish: Satin Brass Painted
• Application: Tri-Packed
• Fire Rated: 3 Hours

Certifications:

• ANSI/BHMA A156.4 Grade 3 certified
• UL/cUL listed for use on fire rated doors
• UL10C listed for positve pressure fire test


• Images may not represent actual product and finish.
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
