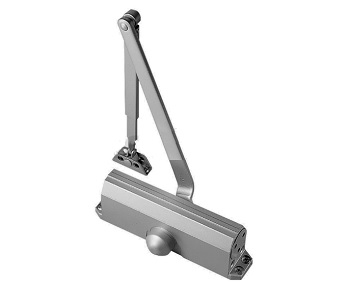

Norton 1606BC-689

The 1600 Series door closers offer proven quality, performance and reliability unmatched by the competition. A staple in the industry, these ANSI/BHMA Grade 1closers are designed for exterior or interior doors. A full complement of regular and heavy-duty arms, brackets and options make the 1600 Series closers ideal for virtually any medium traffic, commercial application.

Series Information:

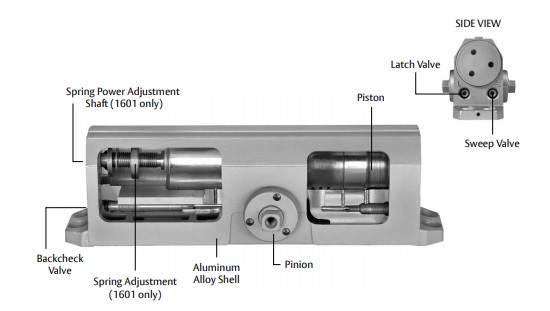

• One-piece, heavy duty cast aluminum body
• Adjustable 1-6 and fixed spring sizes 3 and 4 units available
• Full complement of arms available as hold open or non-hold open
• Maximum degree of swing is 180°, trim permitting
• Tri-style® packaging: regular, top jamb or parallel mounting
• Non-handed
• 2-7/8" projection
• Optional plastic cover
• Corrosion resistant model (specify 1601SS)

Features:

• Door Closer
• Type: Surface
• Technology: Hydraulic
• Mounting Location: Push or Pull Side
• Closer Size: 6
• Mounting Style: Tri Mount (regular arm, top jamb and parallel arm mounting)
• Arm Type: Regular Arm
• Hand: Non-Handed
• Finish: Aluminum
• Application: Tri-Packed, Hold Open
• Fire Rated: 3 Hours

Certifications:

• ANSI/BHMA A156.4, Grade 1 certified
• UL / cUL listed for use on fire rated doors
• UL10C listed for positive pressure fire test
• Meets requirements for Americans with Disabilities Act (ADA) and ANSI/BHMA standard A117.1


• Images may not represent actual product and finish.
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
