National Guard Products 320S 20"

Name: National Guard Products 320S 20" Mill Finish Aluminum Automatic Door Bottom with Silicone insert, for Hollow Metal Doors - Mortise Mount
Brand: National Guard Products
SKU: National Guard Products 320S 20"
Price: 120.92 USD

National Guard Products 320S 20" Mill Finish Aluminum Automatic Door Bottom with Silicone insert, for Hollow Metal Doors - Mortise Mount

× This image is for a similar product but it will differ in size, color and/or other attributes.

National Guard Products 320S 20" Mill Finish Aluminum Automatic Door Bottom with Silicone insert, for Hollow Metal Doors - Mortise Mount

Price: $120.92 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

National Guard Products 320S 20" Mill Finish Aluminum Automatic Door Bottom with Silicone insert, for Hollow Metal Doors - Mortise Mount

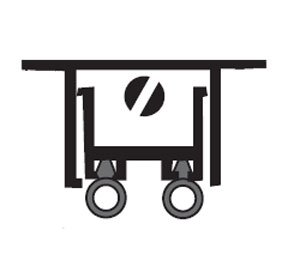

Automatic Door Bottom with Silicone Insert
Length: 20"
Max Drop: 1/2"
Material: Aluminum
Finish: Mill Finish
Insert : Gray Silicone
Mortise Mount
Smoke and Draft Control-UL Classified Category H
UL 10B Classified on wood doors up to 90 min.
UL 10B Classified on metal doors up to 3 hr.
UL 10C Classified on wood doors up to 90 min.
UL 10C Classified on metal doors up to 3 hr.
Air Infiltration Tested
ANSI/BHMA Certified
Use with a threshold for maximum sealing capability
Nylon brush recommended for carpet applications where no threshold is provided
Specify the exact net length required to avoid field sizing. Automatic Door Bottoms 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
End caps available - please specify

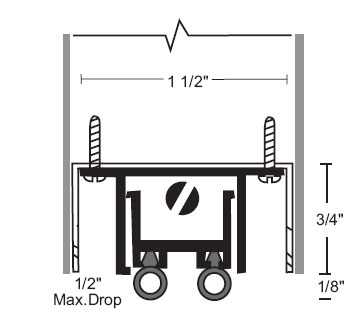

Fits in 1 5/8" x 3/4" channel. A "furring strip" may be used to lower automatic door bottom when a deeper channel is used
Furnished 1/2" shoter than ordered to fit within net door size. (i.e. 36" is furnished 35 1/2") Length may be field cut up to 4"
Fire ratings apply to metal doors only
#4 x 5/8" SMS furnished
