Home > Weatherstripping > Foam Door Seals > Q-Lon > 5/8" projection > 96" length > Brown > National Guard Products > National Guard Products 284Q 96"

National Guard Products 284Q 96"

copy to clipboard

National Guard Products 284Q 96" Brown Q-Lon Foam Seal

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
National Guard Products 284Q 96" Brown Q-Lon Foam Seal
Main ImageVideo Review National Guard Products 284Q Brown Q-Lon Foam Seal
More from National Guard Products
Price: $23.74 USD
Ships From
Comments (Optional)
ADD TO CART
In Stock (No Minimums):
Naples, FL Warehouse Qty: 3
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

This item will ship in a roll.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
National Guard Products 284Q 96" Brown Q-Lon Foam Seal

    DISCONTINUED.
    Potential replacement: Pemko Q102D 121

  • Q-Lon Foam Seal
  • Length: 96"
  • Projection: 5/8"
  • Size: 1"W x 9/16"H
  • Kerf Application: Fits 1/8" wide x 7/16" deep kerf
  • Material: Polyethylene liner with foam core
  • Color: Brown
  • Air Infiltration Tested
  • ANSI/BHMA Certified

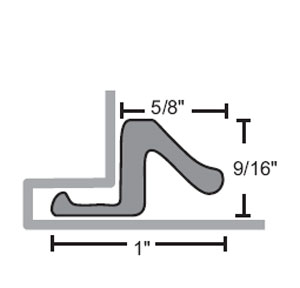

Dimensions
Brown Q-Lon Foam Seal
Brown Q-Lon Foam Seal
Brown Q-Lon Foam Seal

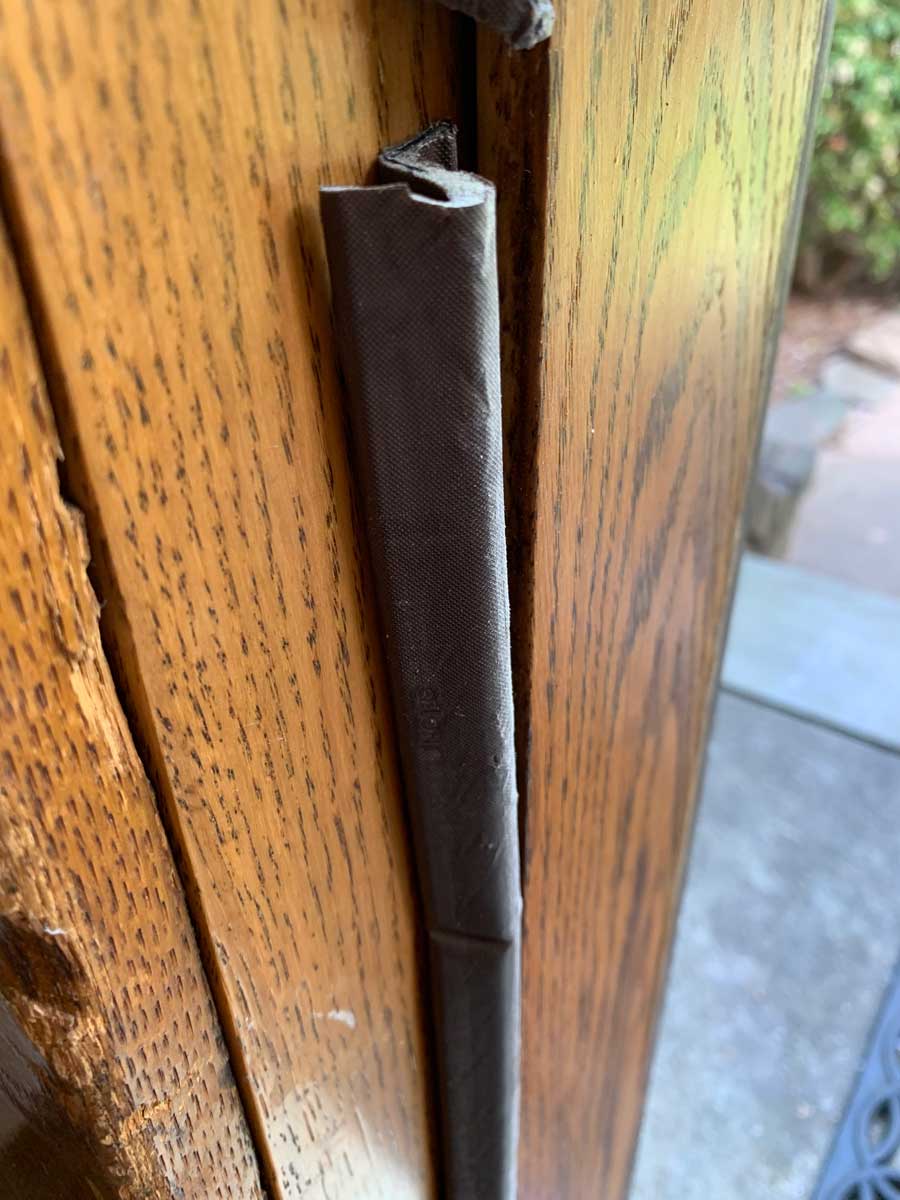

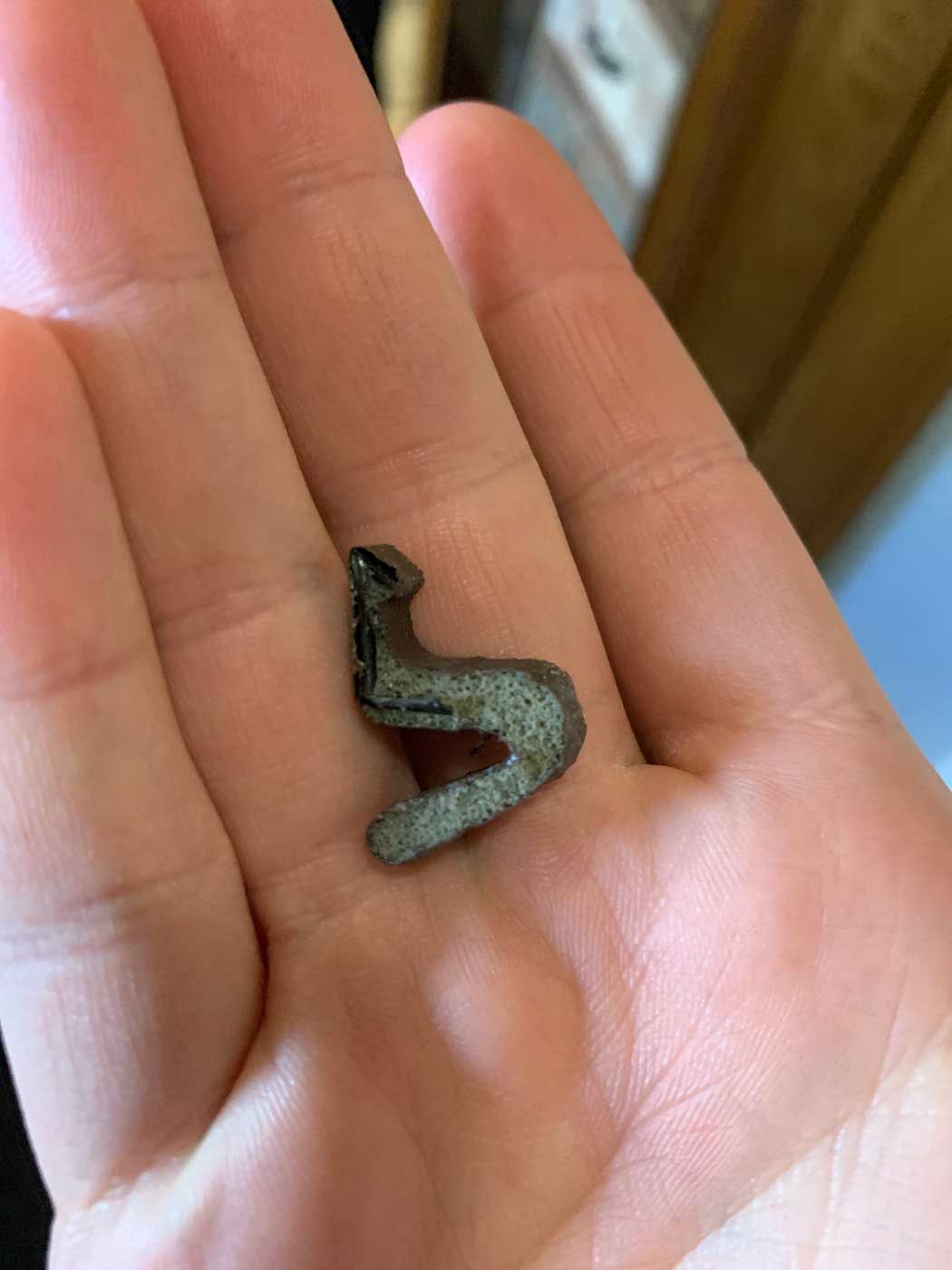

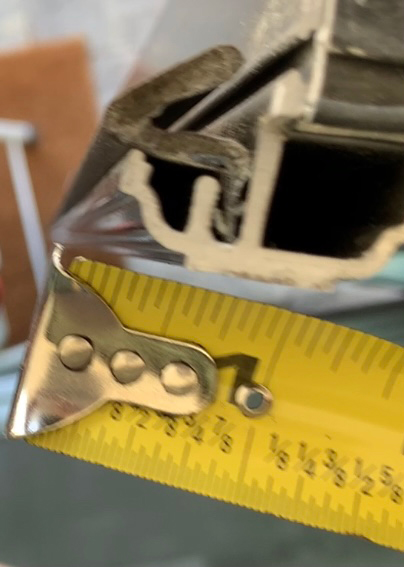

Customer Supplied Photos
National Guard Products 284Q Brown Q-Lon Foam Seal
(Click to Enlarge)
Customer Supplied Photo
National Guard Products 284Q Brown Q-Lon Foam Seal
(Click to Enlarge)
Video Review of National Guard Products 284Q Brown Q-Lon Foam SealVideo Detail Page
Questions and Answers
Q: looking for door kerf seal that fits a 1/4 slot every thing ii find is 1/8
A: Unfortunately all of the kerf type weather stripping that I have requires a kerf not greater than .125” (?”)

I can only suggest that you insert a shim permanently into the kerf area so as to reduce it down to the required .125” (?”).

Q: Any advice on how to remove an old one from a timber frame?

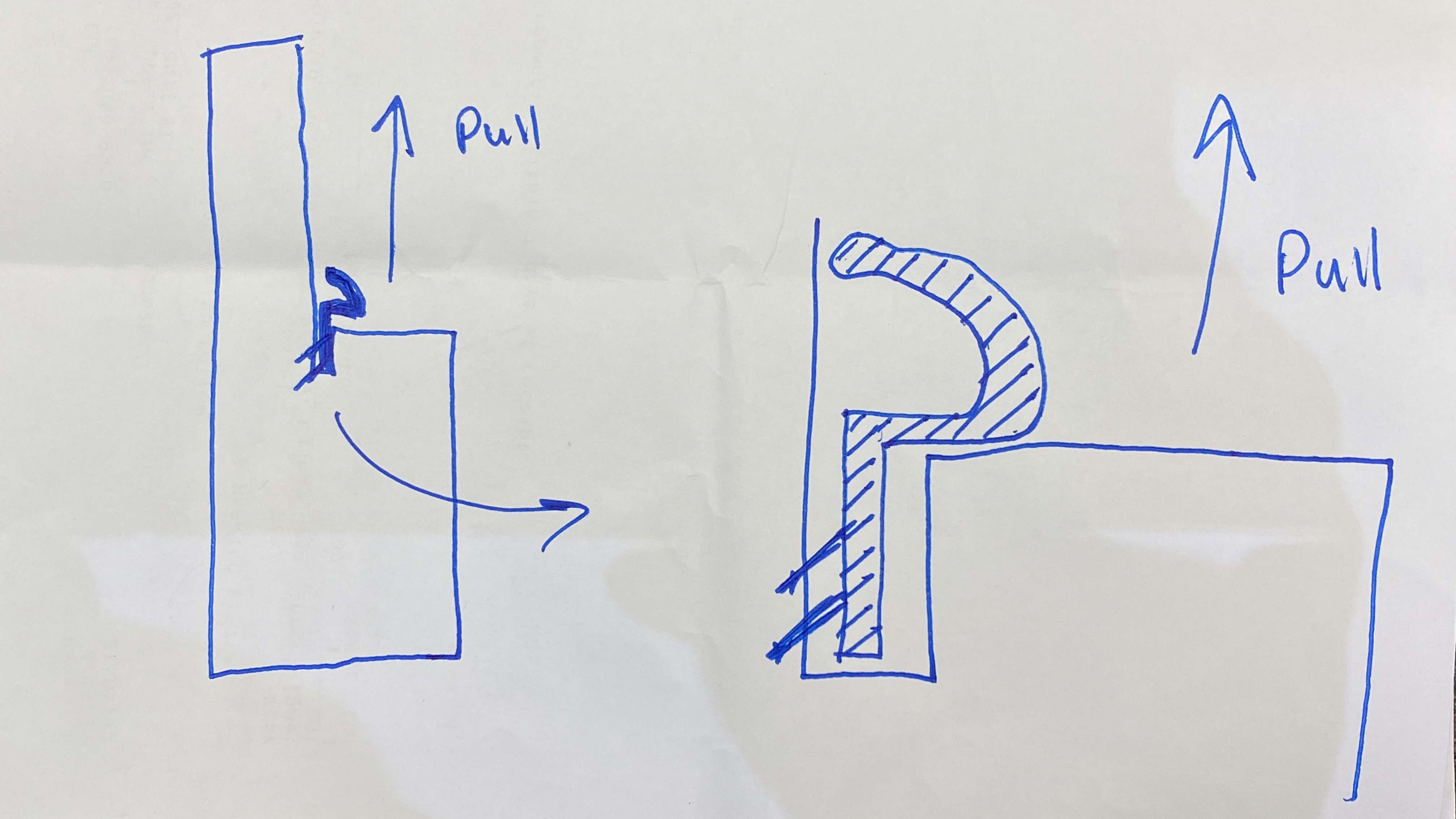

A: Kerfed weatherstripping such as the National Guard Products 284Q 96" Brown Q-Lon Foam Seal is removed from the frame by simply pulling it straight out. It is indeed as simple as it being pressure fit into the kerf of the frame. A quick hand sketch can be reviewed here:

View Image

(Required, used to email you once question is answered.)
