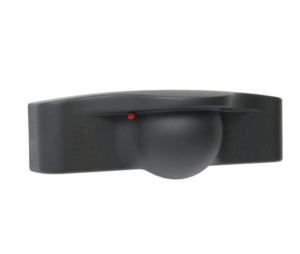

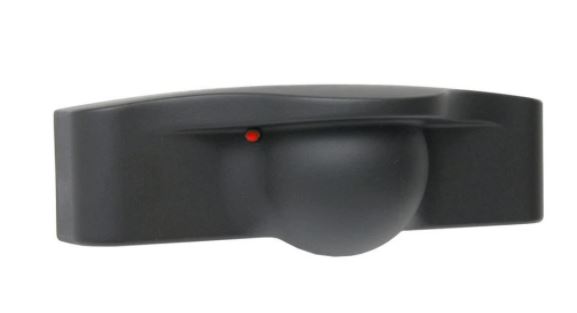

MS Sedco MICROSTAR-M

Microwave Motion Sensor w/ Human Presence Radar, for activating all types of automatic doors. Unparalleled motion detection protects slow moving pedestrians from doors closing prematurely. Fits 1 3/4" door frames, visible LEDs to verify activation, adjustable unidirectional & bi-directional, narrow and wide pattern antennas, and dual axis angle adjustment.

• Frequency: 24.125 GHz ± 50 MHz (K-Band)
• Detection Pattern: Selectable, wide or narrow
• Detection Angle: Adjustable, 21° to 90° ±25° Left/Right
• Directionality: Switch Selectable, Unidirectional or Bidirectional
• Range: Adjustable (range pot.)
• Max. Mounting Height: 15’ (4.5m)
• Power Requirements: 12V to 24V AC or DC ± 10%
• Power Consumption: 3.5W Maximum
• Output Contact: Form C, Rated at 1 Amp
• Output Power: 5mW Typical, 2mW Minimum
• Hold Time: Adjustable, 1.5 to 5 Seconds
• Mounting: Flush Mounted; Optional Universal Mounting Bracket (MS-BDB)
• Temperature: -22°F to 158°F (-30°C to 70°C)
• Color: Flat Black
• Weight: <1 lb. (0.45kg)
• Size: 6 1/2"W x 1 7/8"H x 2 3/4"D (16.5cmW x 4.8cmH x 7cmD)
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
