Monarch RDS-2 Power Supply
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
910.59 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (No Minimums
):
Naples, FL Warehouse Qty: 7
For quantities beyond the "In Stock" above, the item(s)
ships in 10-15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

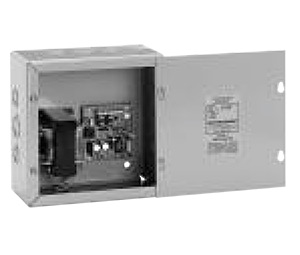

Monarch RDS-2 Power Supply
RDS-2 Power Supply for Electric Latch Retraction (ELR) for all 17 and 18 Series devices
The RDS-2, when energized by closing a dry contact switch, will activate the first ELR device and one second later will activate the second ELR device
For each RDS-2, two ELR devices can be controlled by one switch
To be able to control each independently, an RDS-2 would have to be ordered for each ELR feature. The ELR feature will not work properly without the RDS-2 power supply
Each RDS-2 comes in an 8" x 8" x 4" NEMA rated box

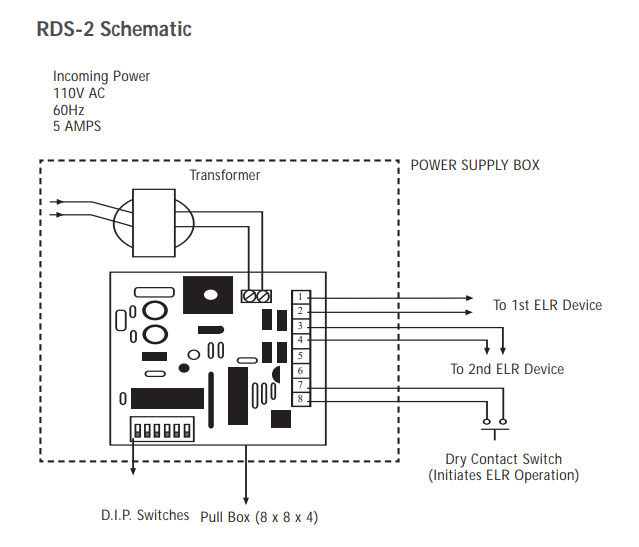

For hook-up, see schematic below
Data Sheet
ELR System
(Click to Enlarge)

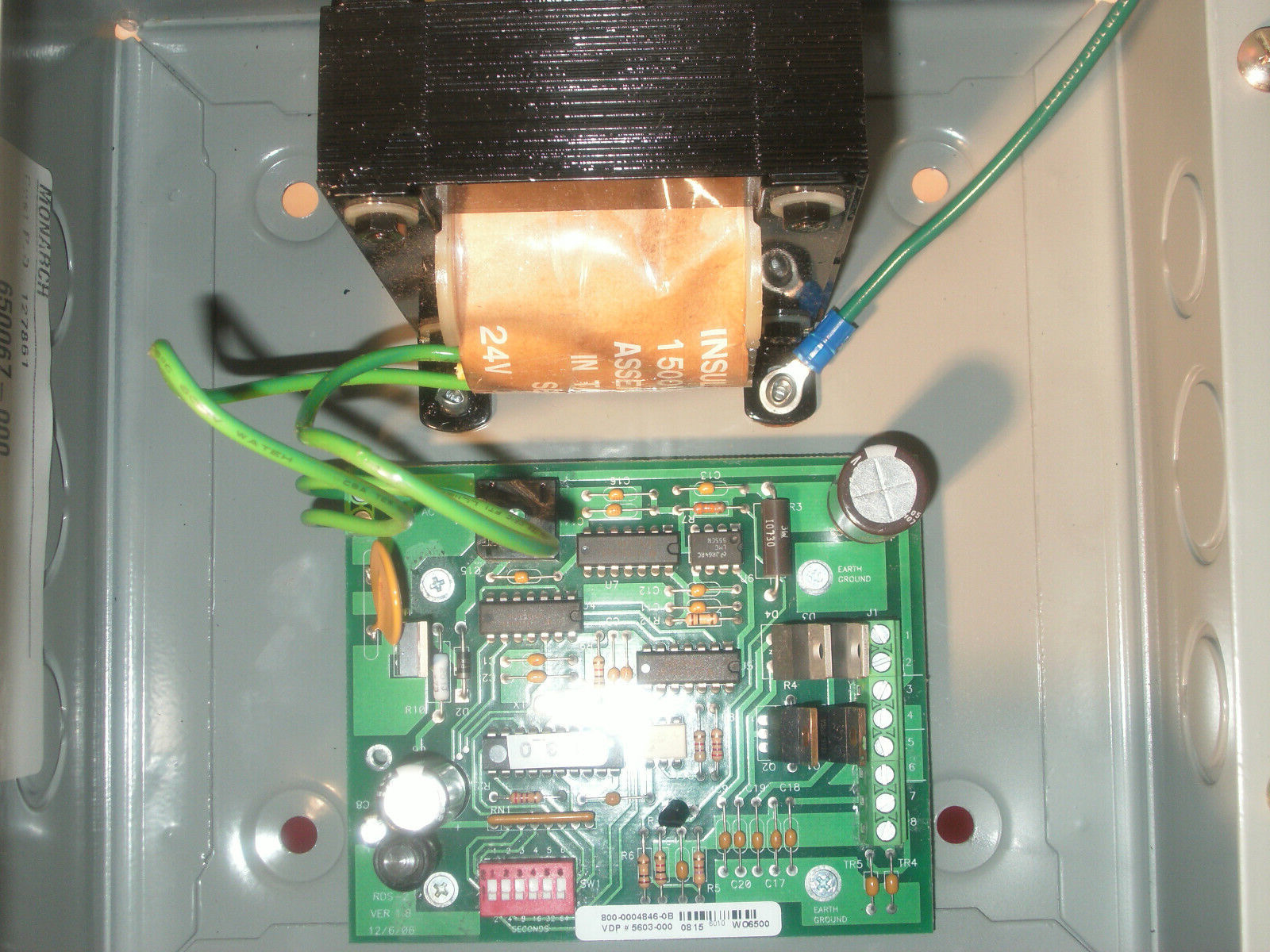

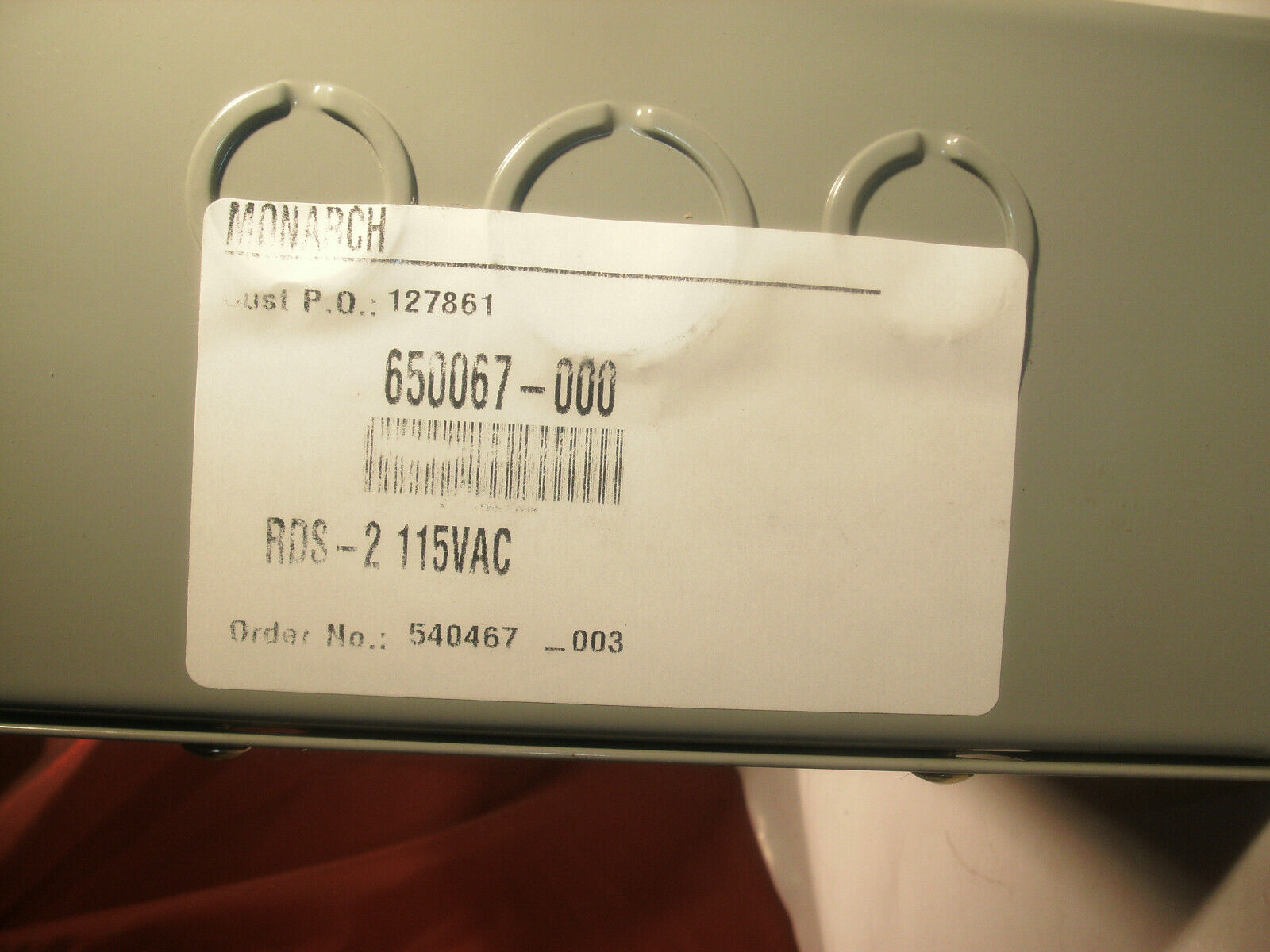

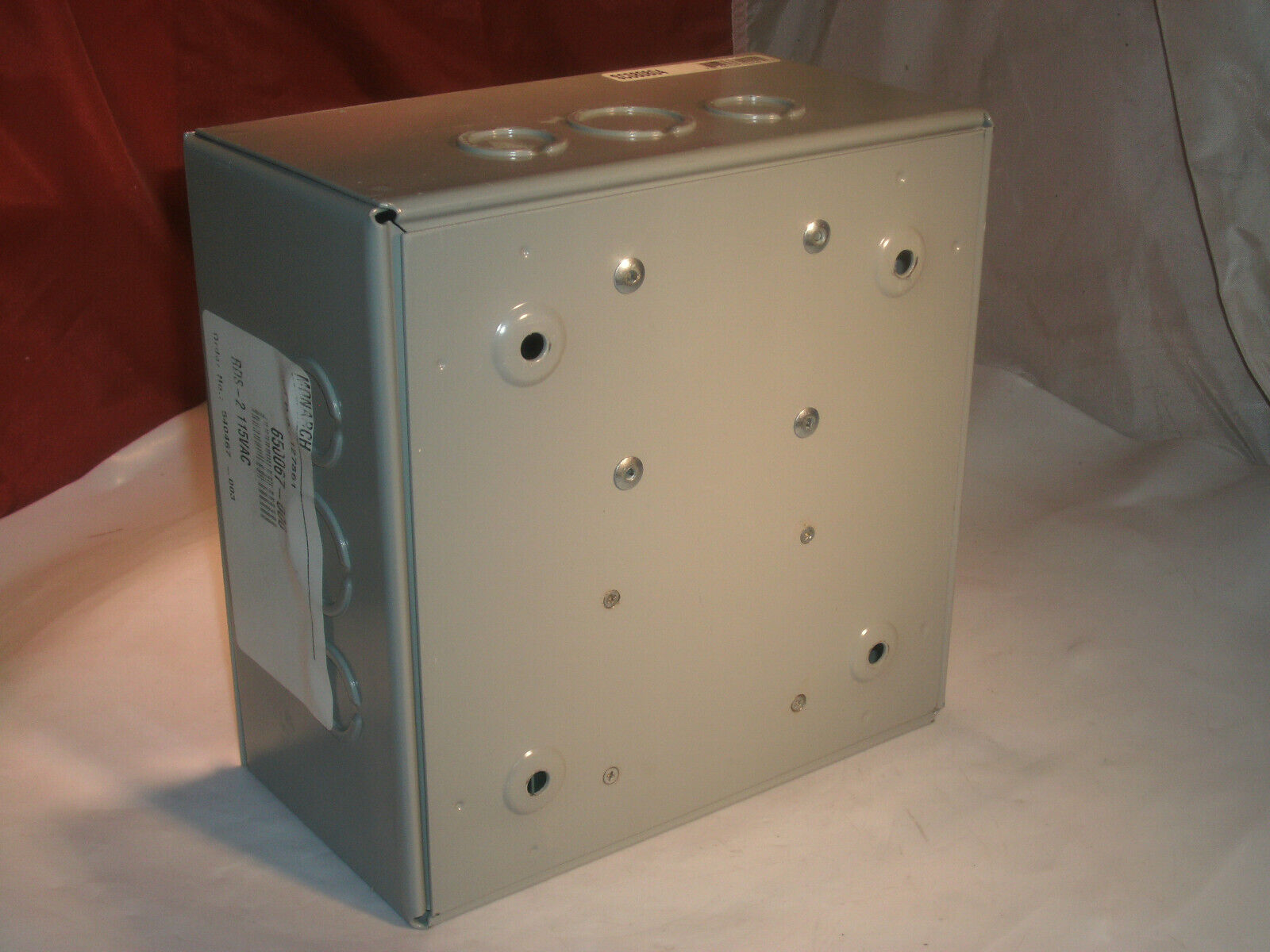

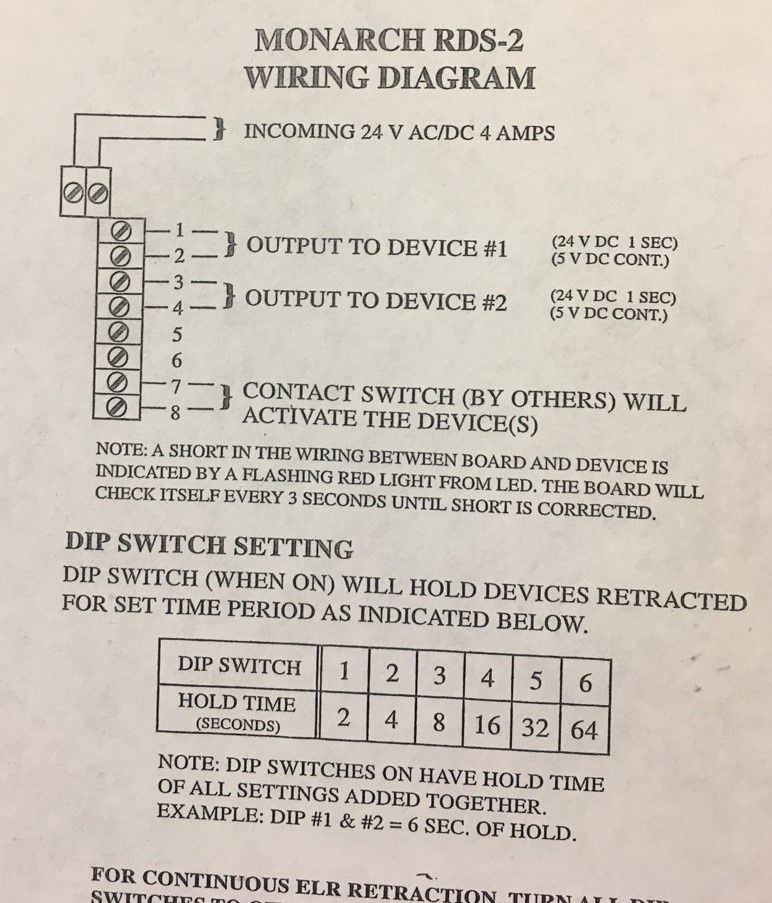

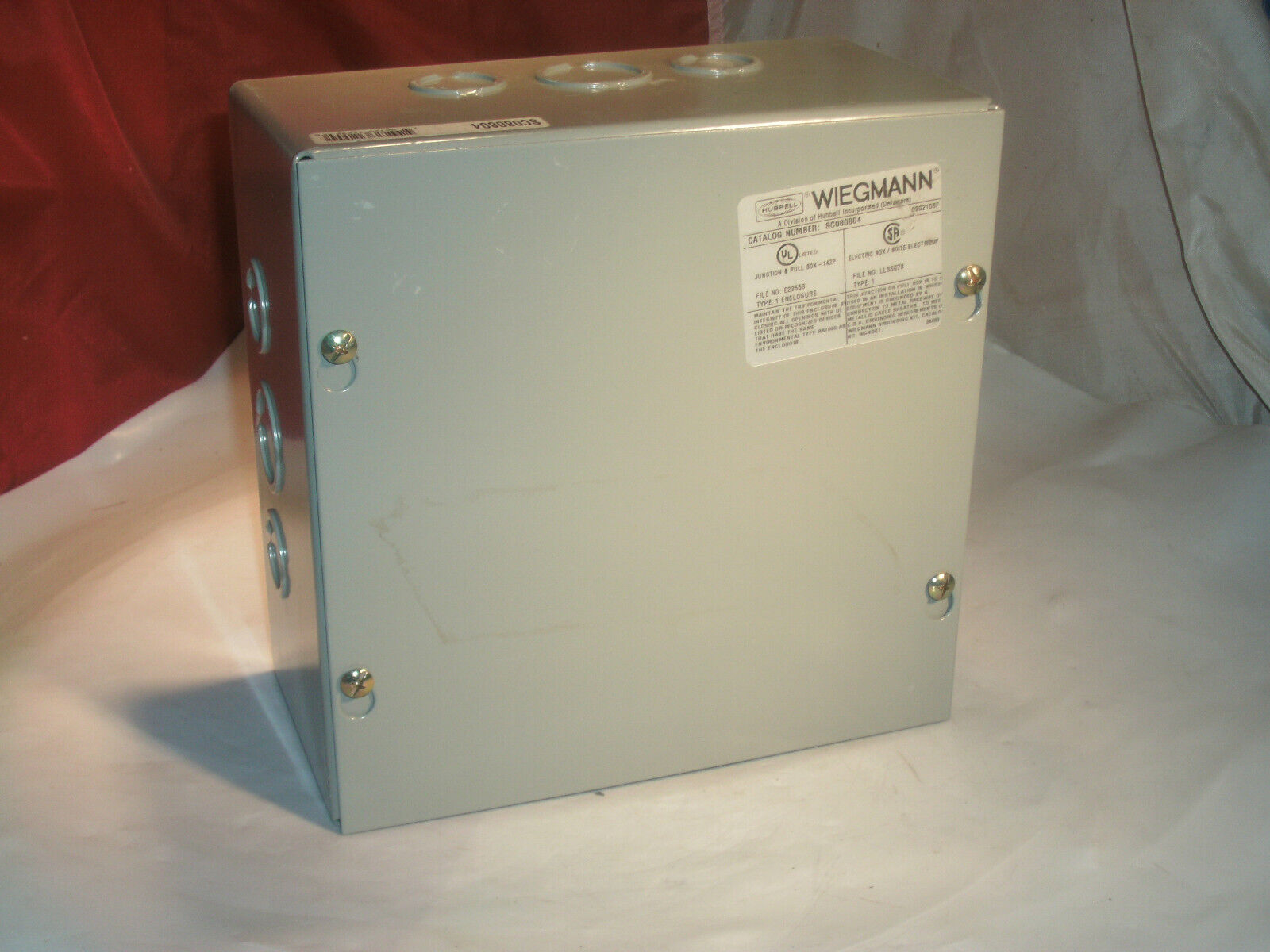

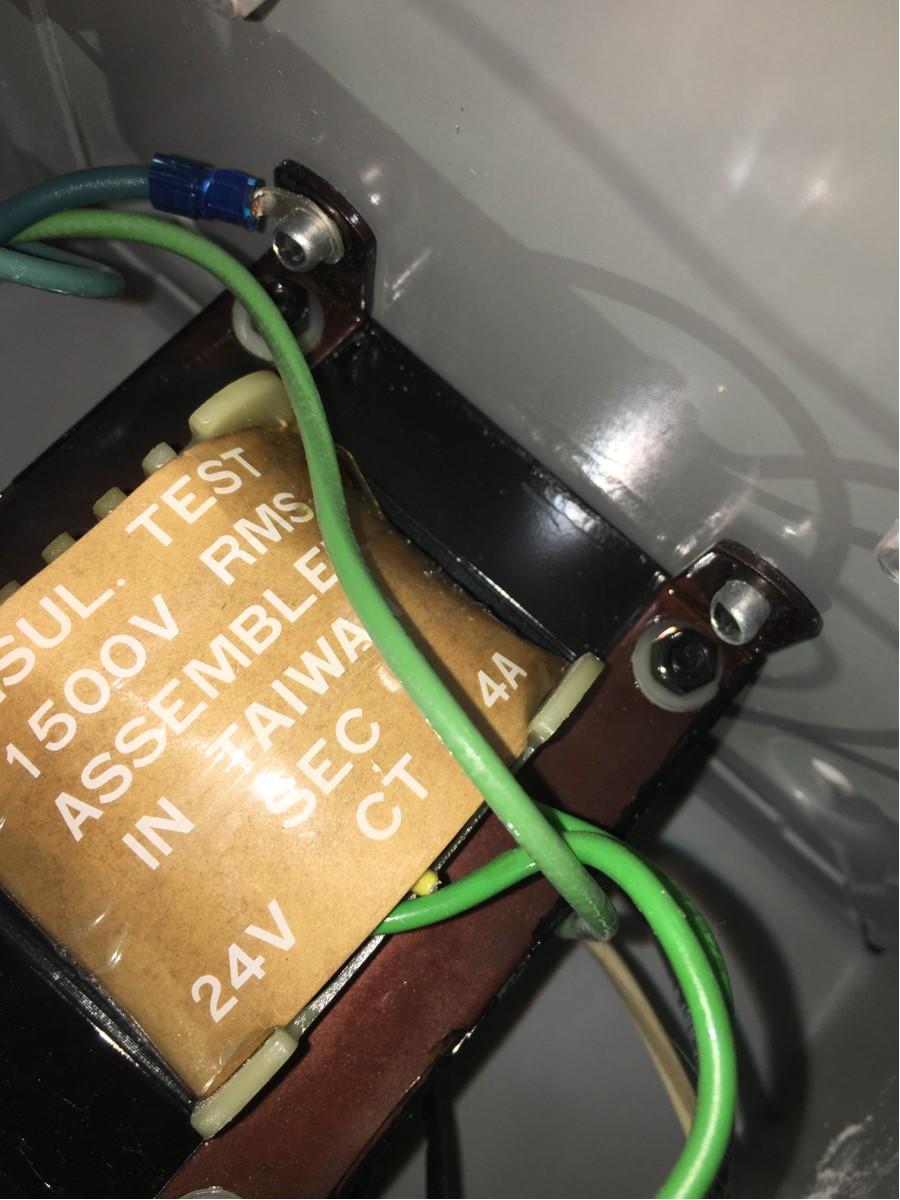

Customer Supplied Photos
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
Questions and Answers
Q: Do you sell just the circuit board for the RDS2
A:
No though had we, there would be no appreciable deduction in price.
