Monarch FXX V

Name: Monarch FXX V Fire Rated Vertical Rod Exit Device
Brand: Monarch
SKU: Monarch FXX V
Price: 1474.35 USD

Monarch FXX V Fire Rated Vertical Rod Exit Device

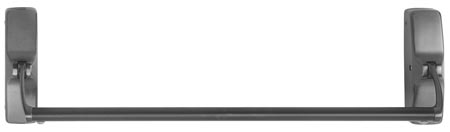

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $1,474.35 USD

Comments (Optional)

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Sales

Technical Support

Product Description:

Fire Rated Vertical Rod Exit Device

UL: “A” label (3 hr.); 8'0" x 10'0" double egress; 8'0" x 10'0"
Strikes: 3788 strikes are surface applied, standard. 2130 strike is mortised into floor.
Arms: Forged brass, aluminum and investment cast stainless steel.
Crossbars: 1" O.D., brass, bronze and stainless steel.
Latchbolt: Top stainless steel, 3⁄4" throw. Bottom stainless steel bolt, 1⁄2" throw.
Deadlocking Latchbolt: Standard.
Latch Retraction Hold: Standard with top latch.
Doors: 1-3⁄4" thick, wood or metal.
Projection: 5" maximum.
Stile: 2-3⁄4" minimum when used in pairs.
Electric Function: Can be interfaced with building security systems.
Fasteners: All mounting screws are concealed. All machine screws standard.
ANSI: Certified ANSI A156.3-2001 Grade 1 standards.
Vertical Rods: Furnished to length based on a 401⁄4" horizontal CL from finished floor, and a 7'0" door standard.
