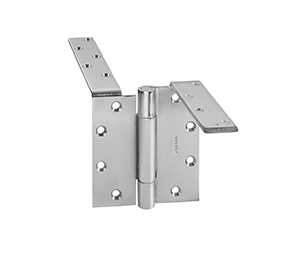

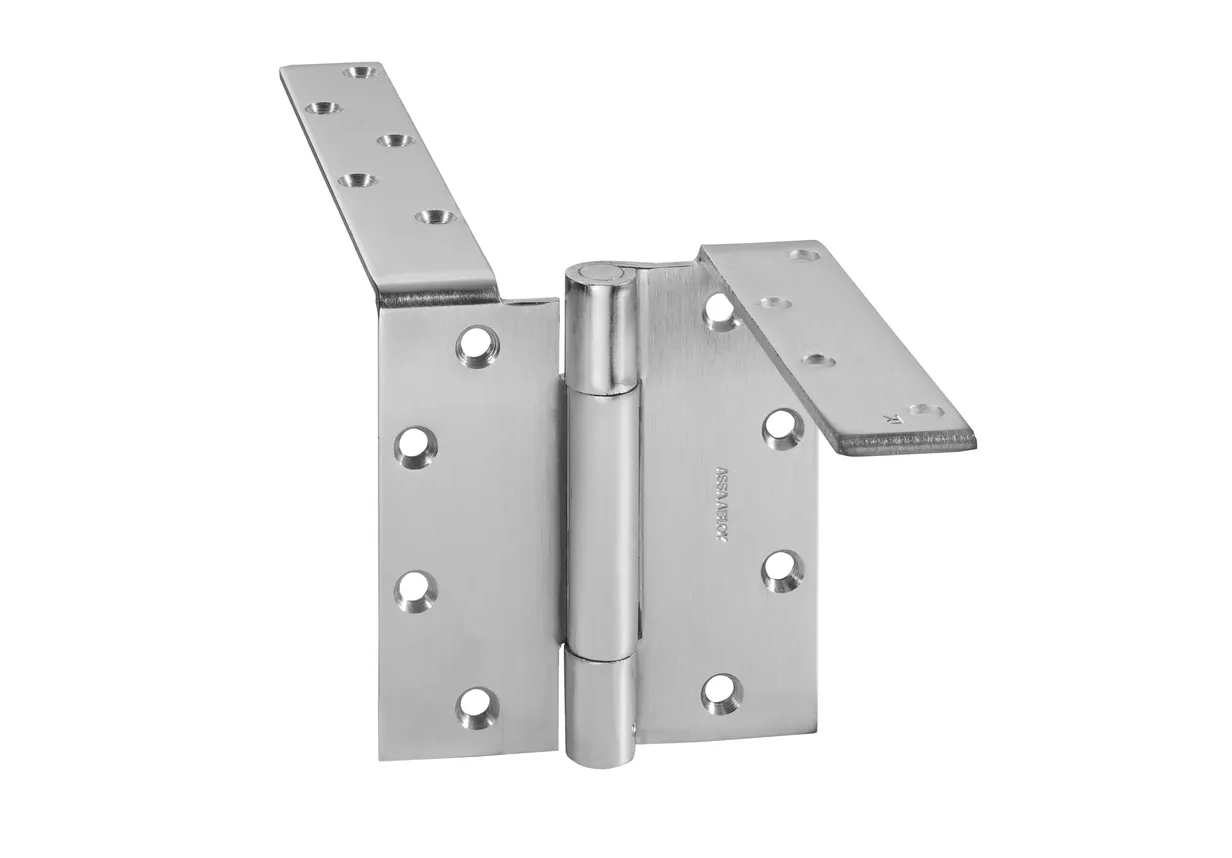

McKinney TA792 LH 26D QC4

The TA392 (stainless steel) and TA792 (steel) three knuckle heavy weight hinge sets come with one anchor hinge and two 5" x 4-1/2" full mortise hinges. They permit use of surface applied holders and closers on doors where high traffic, abuse, or other door hardware place an unusual strain on the door, jamb, and hinges.

• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
• 5" x 4-1/2" Full Mortise Three Knuckle Heavy Weight Stainless Steel Anchor Hinge - Surface Applied
• Steel Bearing Hinge
• Heavy Weight
• Left Handed
• Concealed Bearing
• Size: 5" x 4-1/2"
• Corners: Square
• Base material: Steel
• Finish: Satin Chrome
• Features
• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
• Set includes one anchor hinge and two 5" x 4-1/2" full mortise hinges
• For use on doors where high traffic, abuse, or other door hardware put unusual strain on the door, jamb, and hinges
• Heavy weight - for use on all extra heavy and/or high frequency doors
• Used in conjunction with surface applied holders and closers
• Anchor plate for for door and jamb header
• Packed with all machine and all wood screws
• Pin is held in place by an NRP set screw
• Where doors are beveled edge on hinge side, specify TA5392 or TA5792
• For electrification, please order the electrified hinge separately. Contact Customer Service for requirements.
• Benefits
• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
• Anchor plate permits use of surface applied holders and closers
• Prolongs the life of door and hardware and helps prevent door sagging
• Non-Removable Pin (NRP) ensures hinge is held in place and can't be removed when door is closed
• ANSI Cross Refference: A8551
• Certifications: NFPA 80 Compliant
• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
