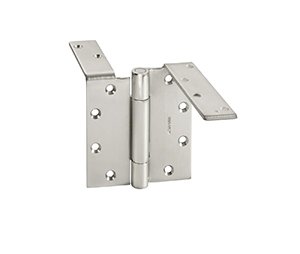

McKinney TA394 LH 32D QC4

The TA394 (stainless steel) and TA794 (steel) three knuckle heavy weight hinge sets with 4" door leg come with one anchor hinge and two 5" x 4-1/2" full mortise hinges. They permit use of surface applied holders and closers on doors where high traffic, abuse, or other door hardware place an unusual strain on the door, jamb, and hinges.

• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
• 5" x 4-1/2" Full Mortise Three Knuckle Heavy Weight Anchor Hinge With 4" Door Leg
• Non-Ferrous Bearing Hinge
• Heavy Weight
• Left Handed
• Concealed Bearing
• Size: 5" x 4-1/2"
• Corners: Square
• Base material: Stainless Steel
• Finish: Satin Stainless Steel
• Features
• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
• Equipped with a 4" door leg
• Set includes one anchor hinge and two 5" x 4-1/2" full mortise hinges
• Heavy weight - for use on all extra heavy and/or high frequency doors
• Anchor plate for jamb header only
• Packed with all machine and all wood screws
• Where doors are beveled edge on hinge side, specify TA5394 or TA5794
• For electrification, please order the electrified hinge separately. Contact Customer Service for requirements.
• Benefits
• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
• Anchor plate permits use of surface applied holders and closers
• Prolongs the life of door and hardware and helps prevent door sagging
• Non-Removable Pin (NRP) ensures hinge is held in place and can't be removed when door is closed
• ANSI Cross Refference: A5551
• Certifications: NFPA 80 Compliant
• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
