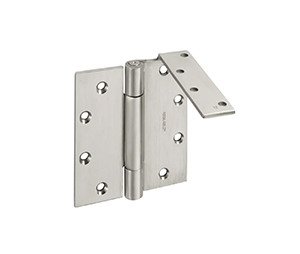

McKinney TA393 LH 32D QC4

The TA393 is a three knuckle heavy weight hinge set that comes with one anchor hinge and two 5" x 4-1/2" full mortise hinges. They are used with concealed door holders or door closers on doors where high traffic, abuse, or other door hardware place an unusual strain on the door, jamb, and hinges.

• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only

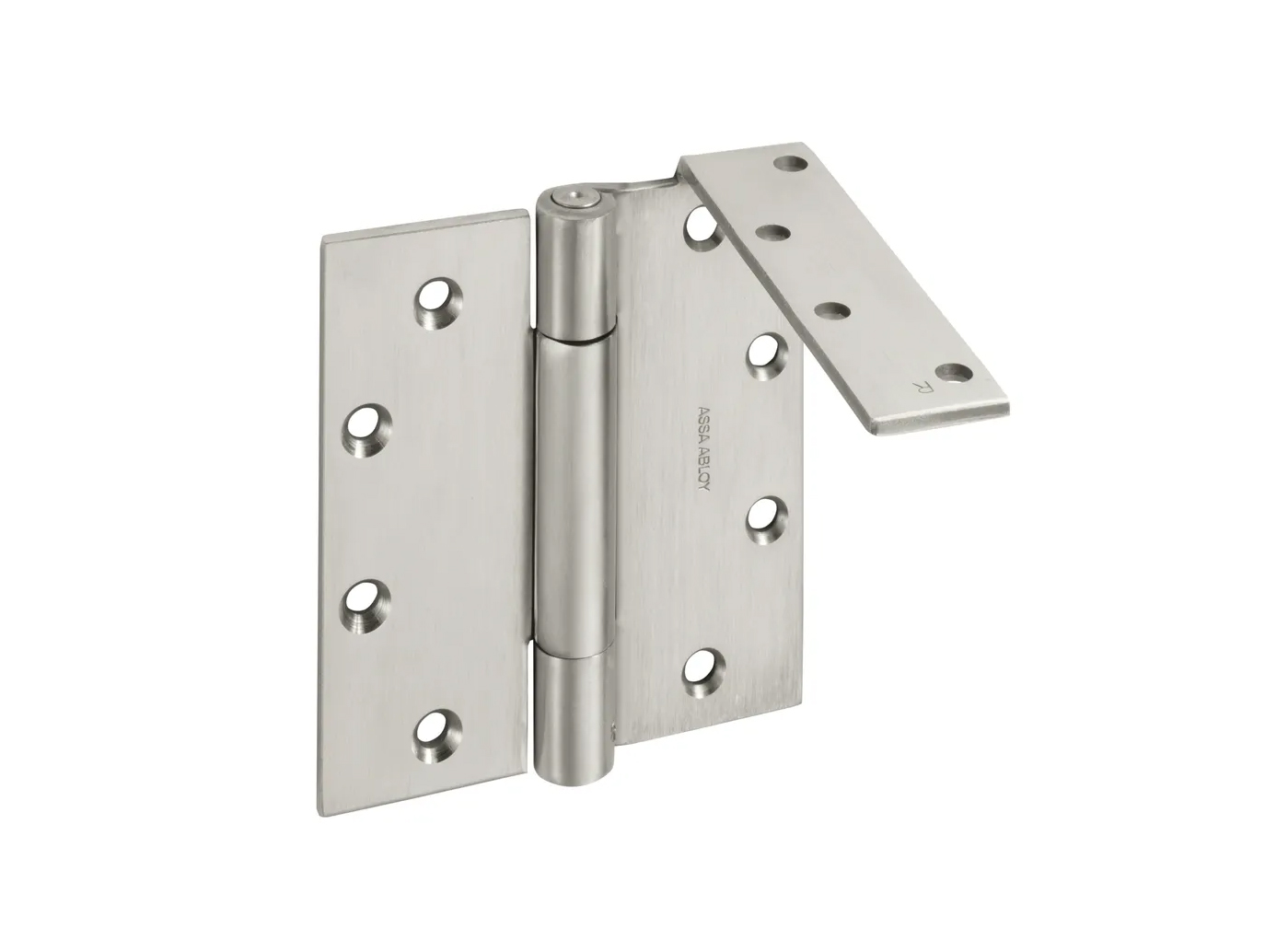

• 5" x 4-1/2" Full Mortise Concealed Three Knuckle Heavy Weight Stainless Steel Anchor Hinge
• Non-Ferrous Bearing Hinge
• Heavy Weight
• Left Handed
• Concealed Bearing
• Size: 5" x 4-1/2"
• Corners: Square
• Base material: Stainless Steel
• Finish: Satin Stainless Steel
• Features
• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
• Set includes one anchor hinge and two 5" x 4-1/2" full mortise hinges
• Used in conjunction with concealed door holders or closers
• Heavy weight - for use on all extra heavy and/or high frequency doors
• Anchor plate for jamb header only
• Packed with all machine and all wood screws
• Pin is held in place by an NRP set screw
• Where doors are beveled edge on hinge side, specify TA5393
• For electrification, please order the electrified hinge separately. Contact Customer Service for requirements.
• Benefits
• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
• Anchor plate permits use of holders and closers concealed in the top of the door
• Prolongs the life of door and hardware and helps prevent door sagging
• Non-Removable Pin (NRP) ensures hinge is held in place and can't be removed when door is closed
• ANSI Cross Refference: A5551
• Certifications: NFPA 80 Compliant
• Electrolynx Quick Connect Concealed 4 Wire Circuit on center hinge of set only
