McKinney 1502-4-1-2X4-1-2-26D

copy to clipboard

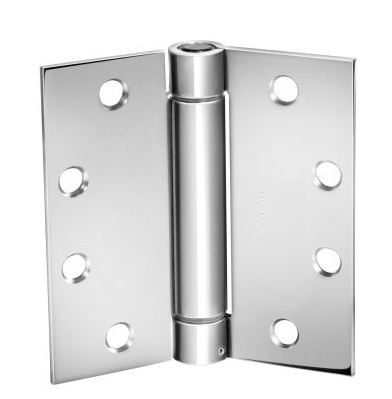

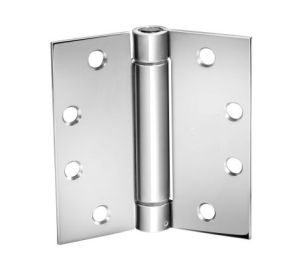

McKinney 1502-4-1-2X4-1-2-26D 4-1/2" x 4-1/2" Single Acting Spring Hinge, Standard Weight, Full Mortise, 3-Knuckle - Satin Chrome Finish

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
McKinney 1502-4-1-2X4-1-2-26D 4-1/2" x 4-1/2" Single Acting Spring Hinge, Standard Weight, Full Mortise, 3-Knuckle - Satin Chrome Finish
More from McKinney
Price: $23.73 USD
Ships From
Comments (Optional)
ADD TO CART
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
McKinney 1502-4-1-2X4-1-2-26D 4-1/2" x 4-1/2" Single Acting Spring Hinge, Standard Weight, Full Mortise, 3-Knuckle - Satin Chrome Finish
  • Single Acting Spring Hinge
  • Finish: Satin Chrome
  • Height: 4.5"
  • Width: 4.5"
  • Material: Steel
  • Number of Knuckles: 3
  • Number of Holes: 8
  • ANSI Cross Reference: K81081, K81081F
  • Gauge: .134
  • Square Corners
  • Ball Bearing
  • Standard Weight
  • UL Listed
  • Adjustable Tension
  • Fasteners:
    - Machine: 1/2 x 12-24
    - Wood: 1-1/4 x 12
  • Recommended for Standard Weight, Medium Frequency Doors
  • Spring hinges are an alternative to door closing devices. Generally two hinges on the door must be spring hinges to provide adequate closing force. NFPA requires a minimum of two (2) spring hinges on labeled doors
  • This non-handed spring hinge series is adjustable and tension can be added or reduced by means of a hex key that is provided
  • Locking screw provides tamper-resistance after the proper tension has been set
  • Caution: Use of gasketing for smoke or sound protection, wind conditions or unbalanced air pressure, twisted or misaligned frames or doors, door bottoms, improper latch adjustment may prevent doors from latching. Additional spring hinges may be required
  • Note: Specifications of product in image may differ from product being sold
  • Packing & Sold as: Each.
  • Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
