Markar HS 103 AL079

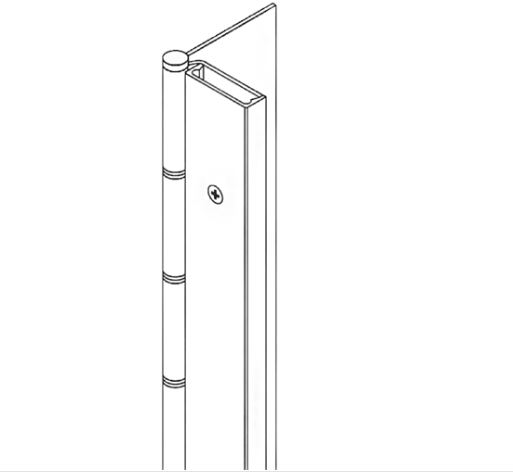

This half-surface aluminum Pin And Barrel continuous hinge can be used to repair doors that need the frame reinforced. It can also be used on openings that have too large a gap between the door and frame. The hinge is edge mounted on the frame and surface mounted on the door. This series is extruded using 30% more aluminum than most geared hinges providing for exceptional strength and durability. Markar 100 Series Hinges are NOT fire rated.

HS103

• Continous Hinge 78.75" long
• 3/16" diameter stainless steel barrel type hinge pin
• Medical bearings
• Aluminum end pins
• 6063-T6 aluminum alloy
• Finished in Dark Bronze Anodized
• Locking Security Covers with brushed aluminum finish
• Fasteners concealed when door is closed
• Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws, 1/4-14 x 3/4 Security TORX TEK Screws.
• ANSI/BHMA Standard A156.26 Grade 2
• Type: Hinges and Pivots
• Sub Type: Continuous Hinge
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
