Markar HG305 70 Satin Stainless Steel Hinge/Guard - Pin and Barrel Hinge - 84" Length - Standard Screw Pack
×

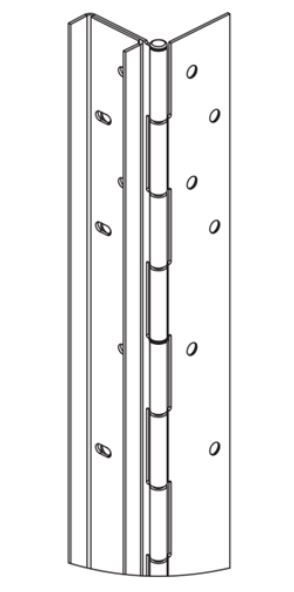

This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
884.24 USD
In Stock Ready for Shipment
Comments
(Optional)
Cut to Length (Add $60.00)
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 3-8 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $165.00 worth of product from Markar to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Markar HG305 70 Satin Stainless Steel Hinge/Guard - Pin and Barrel Hinge - 84" Length - Standard Screw Pack
Nominal Size - 7'0" (84" Length).
Ship Size - 83-1/8".
.187" diameter stainless steel pin (rod)
Stainless steel end pins
Medical bearings
Heavy-duty 14 gauge Stainless Steel
ANSI/BHMA Standard A156.26 Grade 1
Fasteners concealed when door is closed
Custom 12-24 x 11/16" S.S Phillips Flat
Head Undercut TEK Screws
Supports weights up to 600lbs. 4'0" maximum door width
Symmetrically templated
Fire Rating
3 hours- hollow metal doors
90 minutes- hollow metal and composite core wood fire doors
20 minutes- wood doors
Hinge/Guard hinge.
All applicable hinges come with a UL fire rated label as standard. Please specify in the 'Comment' Section if the WHI Label is required.
Standard Screw Pack is included (KMPSS); Security Screw Pack is optional (M91-0031, there will be an additional charge); Adjustable screw pack is optional (M91-0002-630, there will be an additional charge); Thru-Bolts are optional (TB1420SS, there will be an additional charge).
If you have need for a specific cut to length order, please indicate that in the attribute provided before ordering (there will be an additional charge; see ranges below).
For hinges 40" to 83-1/8" in length, $60.00 will be added to 7'0" price.
For hinges 83-3/16" to 95" in length, $60.00 will be added to 8'0" price.
For hinges 95-1/16" to 118-3/4" in length, $60.00 will be added to 10'0" price.
For hinges 118-13/16" to 192" in length (spliced), consult factory.
For security screw pack options see
HG305 70WW
(all wood screws),
HG305 70MM
(all metal screws) and
HG305 70MW
(half metal/half wood).
For adjustable screw pack see
HG305 70ASP
For thru-bolt option see
HG305 70TB
.
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
