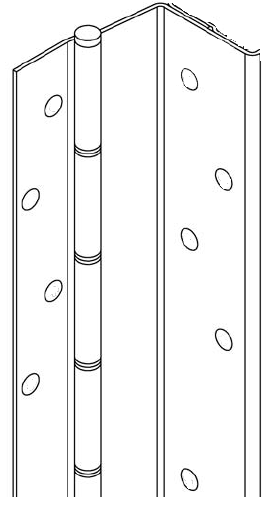

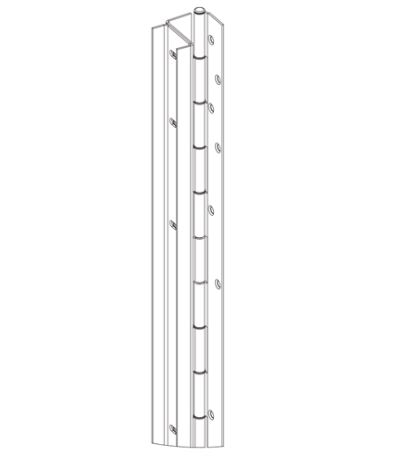

Markar HG 310 US32D079

ADA-compliant barrel-type hinge is used on operating room doors to swing the door out of the opening when moving equipment in and out. The hinge guard also protects the door from dents and gouges.

• Continous Hinge 78.75" long
• 3/16" diameter stainless steel barrel type hinge pin
• Medical bearings
• Stainless steel end pins
• Heavy-duty 14 gauge, stainless steel, finished in US32D
• Fasteners concealed when door is closed
• Fastener screw pack includes.
• Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws.
• Supports weights up to 600lbs. 4'0" maximum door width
• Symmetrically templated hole pattern. Handing required for 6'8", 7'2" and for most optional features.
• Exterior Barrel Diameter .438 (7/16")
• Optional MTSP-100 right angle skewdriver for ease of installation
• Optional features include US32 Bright Polished Stainless, custom lengths (specify handing and length in inches), custom hole patterns, tamper-proof security screws.
• ANSI/BHMA Standard A156.26 Grade 1
• Hinge Type: Continuous Hinge, Full Mortise
• Bearing Type: Pin in Barrel
• Finish: Stainless Steel
• Type: Hinges and Pivots
• Sub Type: Continuous Hinge
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
