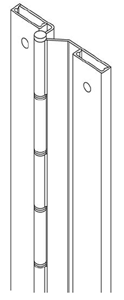

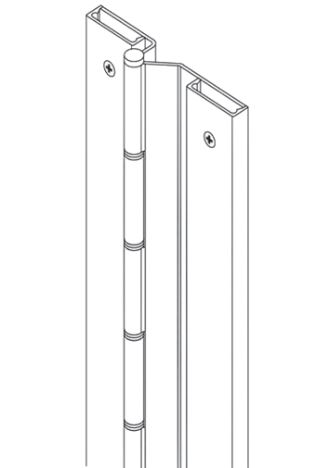

Markar FS 321 US32D079

Featuring our unique edge guard, this economical hinge prevents objects from being placed between the door and frame as well as protecting the door's edge while supporting the door's weight along the entire length of the jamb. This hinge is designed to replace the worn top or intermediate pivots and still work in conjunction with 3/4" offset floor closers.

• Continous Hinge 78.75" long
• 3/16" diameter stainless steel barrel type hinge pin
• Medical bearings
• Stainless steel end pins
• Heavy-duty 14 gauge, 304 stainless steel, finished in US32D
• No exposed mounting fasteners when closed
• Fastener screw pack includes 1/4-14 x 3/4 Security TORX TEK Screws, Zinc #8 x 3/4" PHF Tek, Zinc Cover Clip
• Fastener cover available in brushed aluminum
• Supports weights up to 600lbs 4'0" maximum door width
• Symmetrically templated hole pattern
• Specify handing for 6'8", 7'2" and for most optional features
• Exterior barrel diameter .438 (7/16")
• Optional features include US32 Bright Polished Stainless, custom lengths (specify handing and length in inches), custom hole patterns, tamper-proof security screws
• When installed on a 16 gauge (or heavier) metal frame, hinge reinforcements are not required, nor are they recommended.
• ANSI/BHMA Standard A156.26 Grade 1
• Finish: Satin Stainless Steel
• Type: Hinges and Pivots
• Sub Type: Continuous Hinge
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for on
