Markar FM 100 AL083

Name: Markar FM 100 AL083 83 in Hinge
Brand: Markar
SKU: Markar FM 100 AL083
Price: 399.89 USD

Markar FM 100 AL083 83 in Hinge

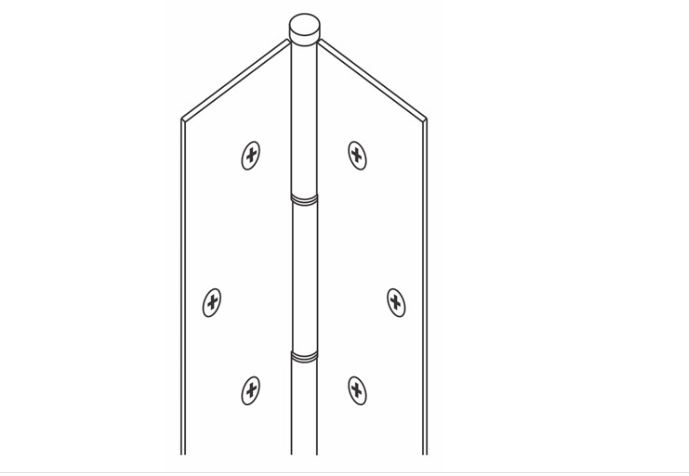

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $399.89 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 14 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Markar FM 100 AL083 83 in Hinge

The Markar 100 Series Continuous Hinges are edge-mounted Pin And Barrel hinges. This series is extruded using 30% more aluminum than most geared hinges providing for exceptional strength and durability. This product is specified in lieu of pivots or butt hinges due to its unique design which distributes the weight of the door down the entire length of the hinge.

Continous Hinge 83.125" long
Stainless steel pin, exterior barrel diameter
Medical bearings
Aluminum end pins
6063-TG aluminum alloy
Finish: Clear Anodized
Fasteners concealed when door is closed
Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
Supports weights up to 600lbs. 4'0" maximum door width
Specify handing for optional features listed
Type: Hinges and Pivots
Sub Type: Continuous Hinge
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for on

Cross Reference

Data Sheet

Questions and Answers

Q: Are there any limits regarding the thickness of the door?

A: Yes, there woul dbe limits regarding door thickness is this is just one variable in determining appropriateness of the Markar FM 100 AL083 83 in Hinge for the desired application.

Q: Our door is 48 ”wide x 10.5’ tall and 4” thick. Aprox. 490 lbs I’ve researching hinges that could work and most talk about a restriction with “big” doors with not much specifics.

A: There are indeed continuous hinges that will handle the 500 lb weight range - however youre going to find that youre established with height thickness and weight are going to all conspire to put you in a position where you do not have a factory warranty on the hinge, and it is for this reason that I imagine there is “not much specifics” as you mentioned. Why not use offset pivots? As a solution to your requirements for this door along with weight, width, thickness and height parameters a pivot would be sublimely positioned as the best solution.
