Lockmasters LKM10KHX10S2

Name: Lockmasters LKM10KHX10S2 Type II Push Pull Handle Model with Kaba Mas X-10 & #2 Strike
Brand: Lockmasters, Inc.
SKU: Lockmasters LKM10KHX10S2
Price: 6139.30 USD

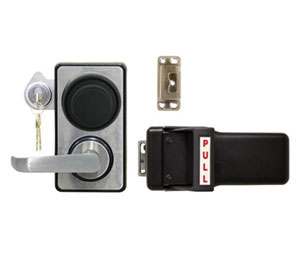

Lockmasters LKM10KHX10S2 Type II Push Pull Handle Model with Kaba Mas X-10 & #2 Strike

× This image is for a similar product but it will differ in size, color and/or other attributes.

Lockmasters LKM10KHX10S2 Type II Push Pull Handle Model with Kaba Mas X-10 & #2 Strike

Price: $6,139.30 USD

Volume Price Information

Buy 22 or more and pay $5,892.30 each (save $247.00)

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 15-20 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Lockmasters LKM10KHX10S2 Type II Push Pull Handle Model with Kaba Mas X-10 & #2 Strike

Type II Push Pull Handle Model with Kaba Mas X-10 & #2 Strike
Series: LKM10K
Model: Handle
GSA Type: Type II
Lock: Kaba Mas X-10
Strike: #2 Outswing Door Single Door Reverse Bevel or Double Doors
Door Thickness: Minimum 1-1/8" Maximum 2-5/8"
Spindle Extension Available up to 3-3/8" door (Part Number - LKM10KEXT
Type II – Pedestrian Door Pre-Assembled Lock (PDPL)

Utilizes electronic access control
ADA compliant
Single motion egress
Non-handed
90 minute fire rating

Compliance & Certifications
- FF-L-2890C Approved
- GSA Approved
- U.L. Fire Rated
- NFPA 80 & 101 Life Safety
- Replaces LKM7000 & LKM7003

SECURITY FEATURES

Dead Bolt - The FF-L-2890B specification requires a locking device equipped with dead bolt and trigger mechanism that operates when the combination lock is in the locked position. The dead bolt automatically extends into the locked position when the trigger mechanism engages the strike.
Encapsulated Strike - The LKM10K Lock Series comes with a strike that surrounds the dead bolt for reinforced security. As specified four strikes are available for inswing, outswing & pairs of doors.
High Security Combination Lock Compatibility - The LKM10K Lock Series is designed to work with any standard footprint combination lock meeting Federal Specification FF-L-2740B (Kaba Mas X-10 and S&G 2740B). No modificiations to the deadbolt is required.
Access Control Device Compatibility - The LKM10K Lock Series is an electrified lock and is compatible with a variety of electronic access control devices (12v or 24v DC - 1 amp).
Security In Depth - When both the combination lock and access control device are installed with the LKM10K Lock tiers of security are created.

First Tier - FF-L-2740B approved combination lock
Second Tier - Access Control Device or Key Override

Example of Day Locking - The supervisor “unlocks/opens” the combination lock to allow staff to enter throughout the day by utilizing the access control device. The LKM10K Lock Series provides this managerial control. However, once the combination lock is “locked/closed” the access control device and Key Override is negated.
Monitoring Switches - Deadbolt Switch - monitors the Pedestrian Device Bolt (Request to Exit - REX); Combination Lock Switch - monitors the FF-L-2740B Combination Lock Bolt and Entry Monitoring Switch - monitors the Lever Handle

SAFETY FEATURES

Single Motion Egress Handle (Push/Pull Model) - One simple push or pull of the ADA and UFSA compliant handle allows exit. One hand guarantees a safe & easy exit even in emergency situations. (Type II)
Key Override Option - A separate module is no longer necessary for this option. Key Override is standard on all LKM10K Lock Series models. However, it is optional to utilize, so it can be added with little effort at a later date if necessary. We recommend Key Override because it allows a key to “override” the access control device only. It will not override the combination lock. This capability is particularly important during the event of power outage, failure or malfunction of an access control device, or an emergency that requires expedited entry.
UL Fire Rating - The LKM10K Lock Series is UL Listed. 90 minute rating when installed with a Kaba Mas X-10 combination lock. This rating is in accordance with the Standard, "Positive Pressure Fire Test of Door Assemblies", ANSI/UL 10C, UBC 7-2 (1997).
Illuminated Labels - All models of the LKM10K feature an illuminated label for easy visibility in no/low light situations.

BENEFITS

Interchangeable - You can install the LKM10K Lock Series in your facility and maintain a consistent look since the appearance of the Exterior Trim has not changed.
Retrofittable - Simply remove the existing LKM7000 Lock Series attach our Retrofit Fixture modify a few existing holes then install either the Push/Pull Model or Panic Bar Model.
Field Tested - With over 25,000 LKM7000 Lock Series in use today, we are confident the improvements we have made in our next generation LKM10K Lock Series will exceed your expectations. We’ve conducted our own internal 1,000,000 cycle tests as well has had a unit in the field for over a year, with great success.
Easy Operation - The internal linear bearing allows for easy entry and exit even with heavy loads applied to the door.
Easy To Order - All three models includes everything you need, no add-ons. You get the Pedestrian Exit Device, the combination lock, the strike, Key Override option and three internal Monitoring "Alarm" Switches.
