Linear RGR

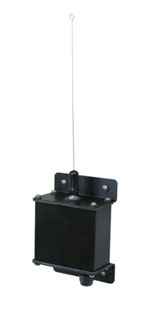

The Model RGR Remote Genie Receiver is designed for use with Linear’s AE1000Plus, AE2000Plus, and AM3Plus access control systems. The RGR functions as a remote device that supports reception of Linear’s GT-30 and GT-31 transmitters.

Three antenna types can be used with this receiver. The enclosure mounted type ”F” connector is for connection to the antenna. The local whip antenna (supplied) screws directly on to the receiver’s connector. The directional (EXA-2000) and omni-directional (EXA-1000) remote antennas wire to the receiver’s antenna connector with type RG-59 cable.

Features

• Receives transmitter signal and outputs proprietary signal to controller which grants or denies access
• Weather-resistant housing for outside or indoor mounting
• Optional directional remote or omni-directional remote antennas
• Integral radio gain control for adjustment of radio range
• Two-color status LEDs indicates ”power on” and ”access granted”
• Radio LED detects transmission
• Power supplied by access controller
• Low voltage cable allows remote mounting without signal loss
• 4.25" W x 6.25" H x 2.5" D (without antenna)
