Linear LS2E26DCR

The full featured LS-2 series locksets provide large system features for an at-the-door solution. The LS2 series locksets are a perfect choice to manage door access that may otherwise not be available through traditional hardwired access systems. The LS-2 series locksets use an ANSI Grade-1 lockset and the powerful management capabilities of the Hub Manager® Professional software.

Model: LS2
Lock Type: Exit Trim
Finish Type: Brushed Chrome
Lever Type: Crescent Lever (not available for Schlage IC core prep)
Cylinder Type: Schlage C (standard)

Features:

• 2,000 individual users per lockset
• 2,000 transactions stored per lockset
• Managed with Hub Manager® Professional Software version 7.4.9 or higher
• Unlimited Access Levels including Time Zones and Holidays
• 20,000 users per system
• Unlimited Sites
• Import user names

Compliance

• ANSI 156.2, Series 4000 Grade 1
• Federal Handicap and ANSI A117.1 Accessibility Code
• Federal FF-H-106C
• California: (Formerly Title 19, State Fire Marshall)

Environmental

• Electronics sealed in conformal coating process
• Through door wire raceway reduces wire exposure to moisture
• Neoprene gasket seals exterior housing
• -20F to 120F, up to 98% humidity (non-condensing)

Electrical

• Power: 4 AA alkaline batteries
• Cycles: Up to 90,000

Lock Type: Exit

Allows the LS Series locksets to be installed in door applications requiring emergency egress exit bar. Easily installs requiring only (2) additional through holes. Exit bar supplied by others.

• Door Thickness: 1 3/4” to 2 1/4”
• Cylinder: Solid Brass 1 1/8” Schlage “C” keyway, 6 pin mortise cylinder, with (2) nickel silver keys. 1 1/8” and 2” can be used with optional spacers
• Also compatible with Rim panic devices, surface horizontal rod devices. Contact factory for installation instructions for these applications
• Requires Exit Device Mounting Kit: see configuration guide for details
• Cylinder Options: Standard Schlage C cylinder or "LC" less core (no cylinder provided)

Finishes

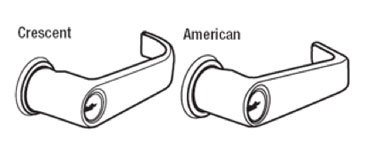

Lever Choices

Cylinders and Keying

The standard cylinder is a solid brass Schlage "C" keyway installed in the lockset body or handle.

For field installation of commonly available OEM lock cylinders, Cylindrical locksets can be ordered with an I/C core prep lever (lockset lever machined to accept a specific OEM cylinder, no cylinder is included in the lockset lever).

Mortise, Exit, and Deadbolt locksets can only be ordered with the standard Schlage "C" keyway or with no cylinder in the lockset body.

Specifications:

General

• Backset: 2 3/4” Standard
• Strike: 4 7/8” ASA Strike
• Door Thickness: 1 5/8” to 1 7/8”
• Handing: Field reversible, left or right hand

LS Series Dimensions
