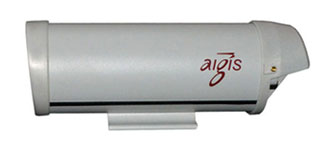

The HS9480 Designer Series of indoor/outdoor camera housings offers a smooth, sleek, look that complements any environment. This series includes a 3.5 inch diameter x 11-inch length to accommodate camera/lens combinations up to 7.75 inches in length. The series is both cost competitive and easy to install. For quick installation or service, simply remove the two captive screws and slide off the cover to fully expose the camera and lens. This allows access to all camera and lens controls when the camera is in its mounted position. Power, video, and lens control cabling can be routed through liquid tight fittings in the bottom rear of the housing or can be routed through the mounting base. Feed-through mounts and J-mounts are available for these housings to hide the cabling. The base of the housings permits mounting to pan/tilts, adjustable heads, and various wall mounts. These sturdily constructed housings are available with a preinstalled heater. The heater maintains the internal temperature of the housing in cold temperature conditions. .
Designer series housing, 3.5-inch diameter x 11-inch length, four liquid tight cable fittings, accepts Camera/Lens combinations up to 7.75 inches in length.
Features
Designer Series Installation
Datasheet
Feed-Through Mount Installation
