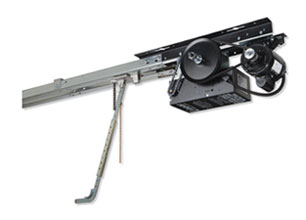

Linear AUD5021S 1/2 HP Extended-Duty Drawbar Commercial Door Operator
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
800.62 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 10-15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Linear AUD5021S 1/2 HP Extended-Duty Drawbar Commercial Door Operator
The AUD SERIES - extended-duty drawbar commercial door operators (for standard lift sectional doors), available in 1/3, 1/2, and 3/4 horsepower, various supply voltages and phases, 12-foot rail standard, optional 14-foot, 16-foot, or 18-foot rail available. Not to exceed 35 cycles per hour, 100+ cycles per day.
Ratings
Maximum duty cycle: 35 cycles per hour, 100+ cycles per day
Maximum door height: 22-1/2 feet
Features
Solid state control circuit
Constant pressure required to close if no entrapment devices are installed
All steel frame
Adjustable friction clutch
3/4" Shafting used throughout
#65 Roller chain on 1/3 HP
#41 Roller chain on 1/2, 3/4 HP
Solenoid brake standard on 3/4 HP (optional on 1/3 & 1/2 HP)
Motor overload protection
Wired to accept reversing devices
Internally adjustable limit switches
High starting torque, continuous duty motor
24-Volt control circuit with OPEN, CLOSE and STOP 3-button station
OPEN button (and single button) will automatically override down travel and reverse door to the full open position
External terminals for single button (residential type) radio control
Rail Options
Rail for up to 14' 6" high doors
Rail for up to 16' 6" high doors
Rail for up to 18' 6" high doors
Rail for up to 20' 6" high doors
Rail for up to 22' 6" high doors
Common Options
Linear Photo Beam Kit: HAE00056
Solenoid brake: Add -BK to model number
MVP-MR 3-channel open-close-stop modular receiver installed: P/N 2650-159
Warranty
2 years
AUD SERIES Models
MODEL
HP
VOLTAGE & PHASE
TYPE DRIVE
MANUAL DISCONNECT
MAXIMUM DOOR HEIGHT
AUD3311
1/3
115V 1P
Drawbar
Quick release door arm
22-1/2 FT.
AUD3321
230V 1P
AUD3323
230V 3P
AUD3343
460V 3P
AUD5011
1/2
115V 1P
Drawbar
Quick release door arm
22-1/2 FT.
AUD5021
230V 1P
AUD5023
230V 3P
AUD5043
460V 3P
AUD7511
3/4
115V 1P
Drawbar
Quick release door arm
22-1/2 FT.
AUD7521
230V 1P
AUD7523
230V 3P
AUD7543
460V 3P
