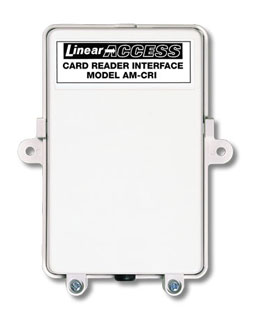

Linear AM-CRI

The AM-CRI is a card reader that will support one or two 26-bit, 30-bit, or 31-bit Wiegand input devices. If the readers used have a hold or buffer connection, two readers may be used to the AM-CRI. If the readers do not have a hold or buffer connection, one reader may be used with the AM-CRI. Usually mounted near the readers, the AM-CRI interface connects to the control unit through a PBUS cable. Each reader connects to the AM-CRI through a six-wire (one LED in reader) or seven-wire (two LEDs in reader) cable.

Features:

• For equipping a Linear access control system with one or two Wiegand devices
• Card Reader Interface can be used with up to two 26, 30, or 31-Bit Wiegand input devices
• Power is supplied by system controller or external source for locally powered readers
• Dimensions: 4.45" W x 5.75" H x 1.5" D
