Q: Is the 4111 closer handed?

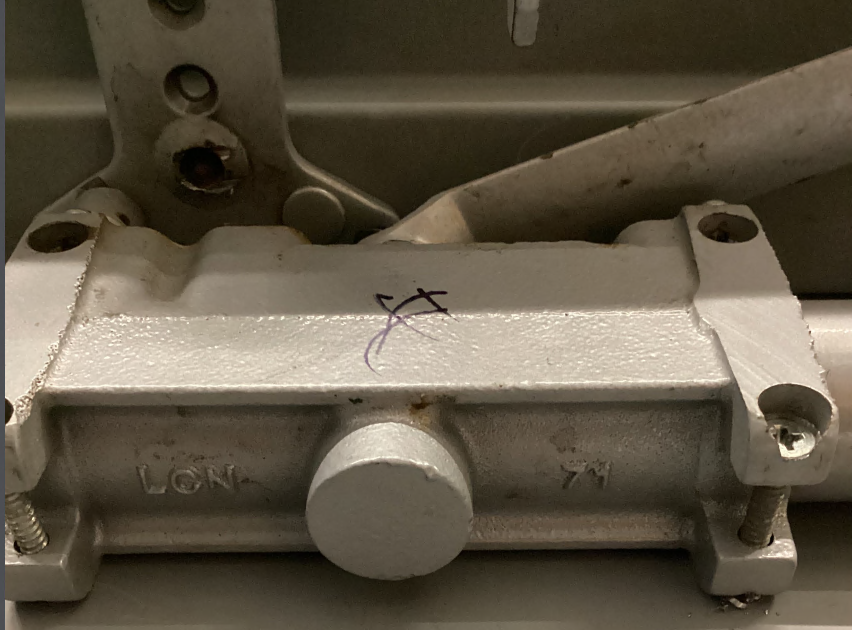

A: The 4110 closer is handed, and will have an "RH" and "LH" on the casting next to the closer shaft. The regulating valves are going to be on the same side as the hand of the closer.
Q: What is the difference between a 4110 and a 4111?
A: The 4110 is a closer series number and the 4111 is the closer model number. This also applies to the 4112, 4113, 4114, 4115, and the 4116 closer models. All of these, except the 4111 and 4116 models were discontinued as of 2010.
Q: Hi recently purchased the 4111 left hand ,hold open ,fusible link . cannot figure out how to keep it open at about 85 degree angle . there’s a wall directly in line with the door as you open it to the left. Installed using template ,all good. Read the instructions .it says loosen hold open nut, ok I loosen it an it tightens up ??? is this righty tighty lefty loosey
A: It doesn't sound as if you have the wrong hand closer arm.
The Fusible Link Arm is handed and cannot be reversed. Hand of arm and hand of door must correspond. The hand of arm is stamped on
the vertical part of the shoe facing the Hold Open Nut. (CAN ONLY BE USED WITH SIZE 1-5 CLOSERS).
Please do indeed that you have the proper hand closer arm according to the door and then review the installation instructions as seen here:
Download File
Q: What is the difference between a 4210 and a 4110?
A: The 4210 and 4110 use the same door closer cylinder body. The 4210 is the security version of the 4110.
Q: Are LCN metal covers a ferrous or non ferrous Material?
A: All LCN metal covers are steel which is a Ferrous material
Ferrous
These are metals which contain iron. They may have small amounts of other metals or other elements added, to give the required properties.
All ferrous metals are magnetic and give little resistance to corrosion
Non-Ferrous Metals
These are metals which do not contain any iron. They are not magnetic and are usually more resistant to corrosion than ferrous metals.
Examples are aluminum, copper, lead. zinc and tin. Q: How do you order a 4110 hold open spring cush arm only?
A: The 4110 hold open spring Cush (Spring H Cush) arm part number is 4110-3049SCNS as seen here:
Click Here
Q: Are there special brackets needed when using the 4110 series with a coordinator?
A: When using the 4111 with a bar style coordinator
MB-mounting brackets ordered from IVES are required.
The brackets wrap around the coordinator to provide a surface for mounting the parallel arm closer shoe.
Order the 4111 by the below ST numbers
ST-1384 4111EDA with mounting bracket for use with bar style coordinator.
ST-1496 4111CNS with mounting bracket for use with bar style coordinator.
The STs are used for proper length screws and template to mount the 4111 and MB bracket and not interfere with the coordinator. Q: What is the difference between the 4040, 4010, 4020, and 4110 series closers?
A: 4040XP Series (4040 DEL) is a universal closer. *(see note)
Non Handed closer. Can be mounted on a RH or LH door.
4041XP - Adjustable size 1 to 6.
Can mount push side or pull side of the door.*(see note)
Non Handed arms with the exception of HEDA arms are handed.
Non Handed cover.
Handed metal cover.***
The mounting hole pattern of a 4040XP/4041 is a "staggered hole pattern" 2-1/4" vertical center of top corner to center of bottom corner mounting holes, and 5" horizontal center of top corner to center of bottom corner mounting holes.
4010 Series is a handed closer. **(see note)
Regular arm pull side mount closer.
Same closer body as 4020.
4011 - Adjustable size 1 to 5.
4016 - Size 6 only.
Regular arms are Non Handed. The Hold open arms are handed.
Non Handed plastic cover. (plastic cover same as 4110)
Handed metal cover.***(see note)
The mounting hole pattern of a 4010 series is 2-1/2" vertical from center to center of mounting holes, and 6" horizontal center to center of mounting holes.
4020 Series is a handed closer. **(see note)
Regular arm push side top jamb mount closer. (longer rod and shoe than 4010)
Same closer body as 4010.
4021 - Adjustable size 1 to 5.
4026 - Size 6 only.
Regular arms are Non Handed. The Hold Open arms are handed.
Handed plastic cover. (plastic cover different than 4010/4110)
Handed metal cover.***(see note)
The mounting hole pattern of a 4020 series is 2-1/2" vertical from center to center of mounting holes, and 6" horizontal center to center of mounting holes.
4110 Series is a handed closer. **(see note)
Parallel arm push side mount closer.
4111 - Adjustable size 1 to 5.
4116 - Size 6 only.
EDA, Cush, and HCush are Non Handed arms. The HEDA arm is Handed.
Non Handed plastic cover. (plastic cover same as 4010)
Handed metal cover. ***(see note)
The mounting hole pattern of a 4110 series is 2-1/2" vertical from center to center of mounting holes, and 6" horizontal center to center of mounting holes.
Q: What is a surface mounted door closer?
A: Surface Mounted door closers are the most durable and common type of door closer.
Mounted to the surface of the door or frame
Can be configured (through installation or arm type) to meet a wide variety of applications.
SC Series & 1000 Series:
Surfaced mounted commercial (non-handed) closers designed to fit aluminum or glass doors primarily in aftermarket applications.
4000 Series
Features both handed and non-handed products that are ideal for new construction and aftermarket applications. The 4000 series is the most robust and durable product offered by LCN, and also features our industry leading 4040XP closer.
4200 & 4500 Series
High Security Series (handed) closers utilize special components to minimize tampering and vandalism. The difference in model numbers denotes the variety of ways the closer can be mounted; either pull or push side with regular, parallel, or track style arm.
Q: What maintenance is required for an LCN closer?
A: Closers mounted according to LCN installation instructions require no periodic maintenance or seasonal adjustments. Monthly, quarterly, and annual visual inspections are recommended for Fire/Life and Safety products as well as ADA Automatic Operators. Refer to the installation instructions for complete, product specific details.
