Knape & Vogt KV8250P-20 75 lb Ball Bearing Pencil Drawer Slides, 20" Length - Anochrome Finish - 1 Set
×

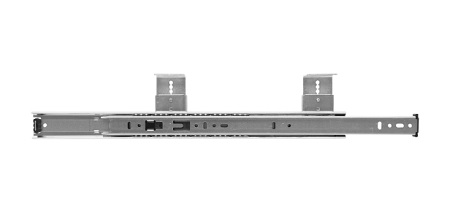

This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
52.06 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Vernon Hills, IL Warehouse Qty: 2
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $35.00 worth of product from Knape & Vogt to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Knape & Vogt KV8250P-20 75 lb Ball Bearing Pencil Drawer Slides, 20" Length - Anochrome Finish - 1 Set
Pencil Drawer Ball Bearing Slides
3/4 Extension Slide with Variable Height Adjustment
Open/Close Features:
Hold-In Anti-Rebound
Load Class:
75 lb
Length:
20"
Finish:
Anochrome
KV Model # 8250, made in the USA

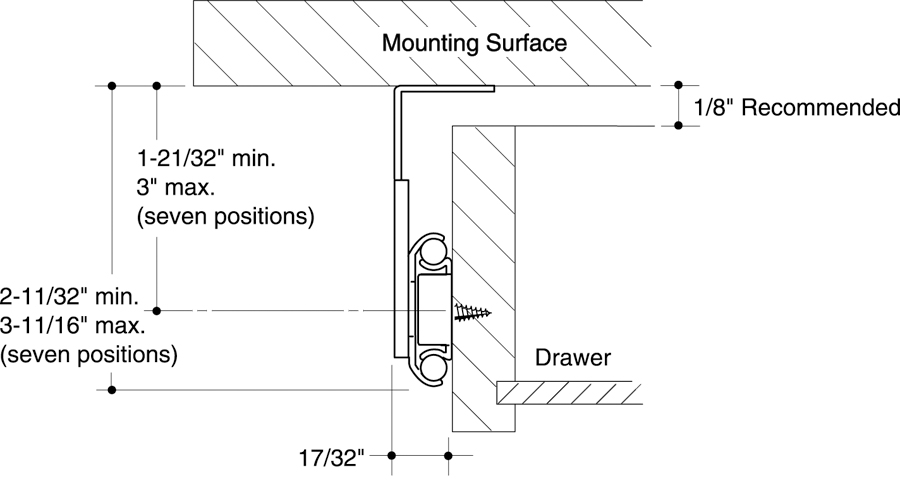

Side clearance 1-5/8" per side outboard, 17/32" per side inboard
Side Height: Overall drop height: 2-11/32" to 3-11/16" in 7/32" increments
32mm Pattern: No
Features: Mounting brackets adjust to 7 heights from 2-11/32" to 3-11/16" in 7/32" increments, anti-bounce feature
Recommended fasteners: #7 x 1/2" Phillips Pan Head (WW44190)
MPN Code:
8250P 20
Packing & Sold as:
Set contains 1 pair of slides with screws, 10 sets per box. Sold in both broken and full box quantities.
Note:
Unit of measure is Set and Boxes. Each Box contains 10 sets. When you are purchasing a quantity of 1 you will get one set. When you are purchasing a quantity of 10 you will get one box of 10 sets. We are able to break open the box quantity, therefore we are able to sell you this item in multiples other than 10. Price is for one set.
