Kawneer 133626-40

Name: Kawneer 133626-40 Cylinder Mounting Pad for A 1686 Exit Device, Dark Bronze
Brand: Kawneer
SKU: Kawneer 133626-40
Price: 63.62 USD

Kawneer 133626-40 Cylinder Mounting Pad for A 1686 Exit Device, Dark Bronze

× This image is for a similar product but it will differ in size, color and/or other attributes.

Kawneer 133626-40 Cylinder Mounting Pad for A 1686 Exit Device, Dark Bronze

Price: $63.62 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 1

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Kawneer Cylinder Mounting Pad for A 1686 Exit Device, Dark Bronze

Exit Device Service Part
Cylinder Mounting Pad for A Exit Device
Price includes: Cylinder pad, cylinder retaining ring, (2) screws for 1-3/4" door, and (2) screws for 2" door
Finish: Dark Bronze
NOTE: We also sell this product in different variant Kawneer 133626-17 in Clear Aluminum Finish.

We have requested from the factory a template as to where to locate this cylinder mounting pad to confirm its height and its correlation to the device centerline but also its backside and then finally where to locate the two pad mounting screws but they're unable to provide this information.

Service Parts Catalog

Finishes

Installation Instructions

Parts Drawing

Customer Supplied Photos
Kawneer Automatic Door Openers Parts

(Click to Enlarge)

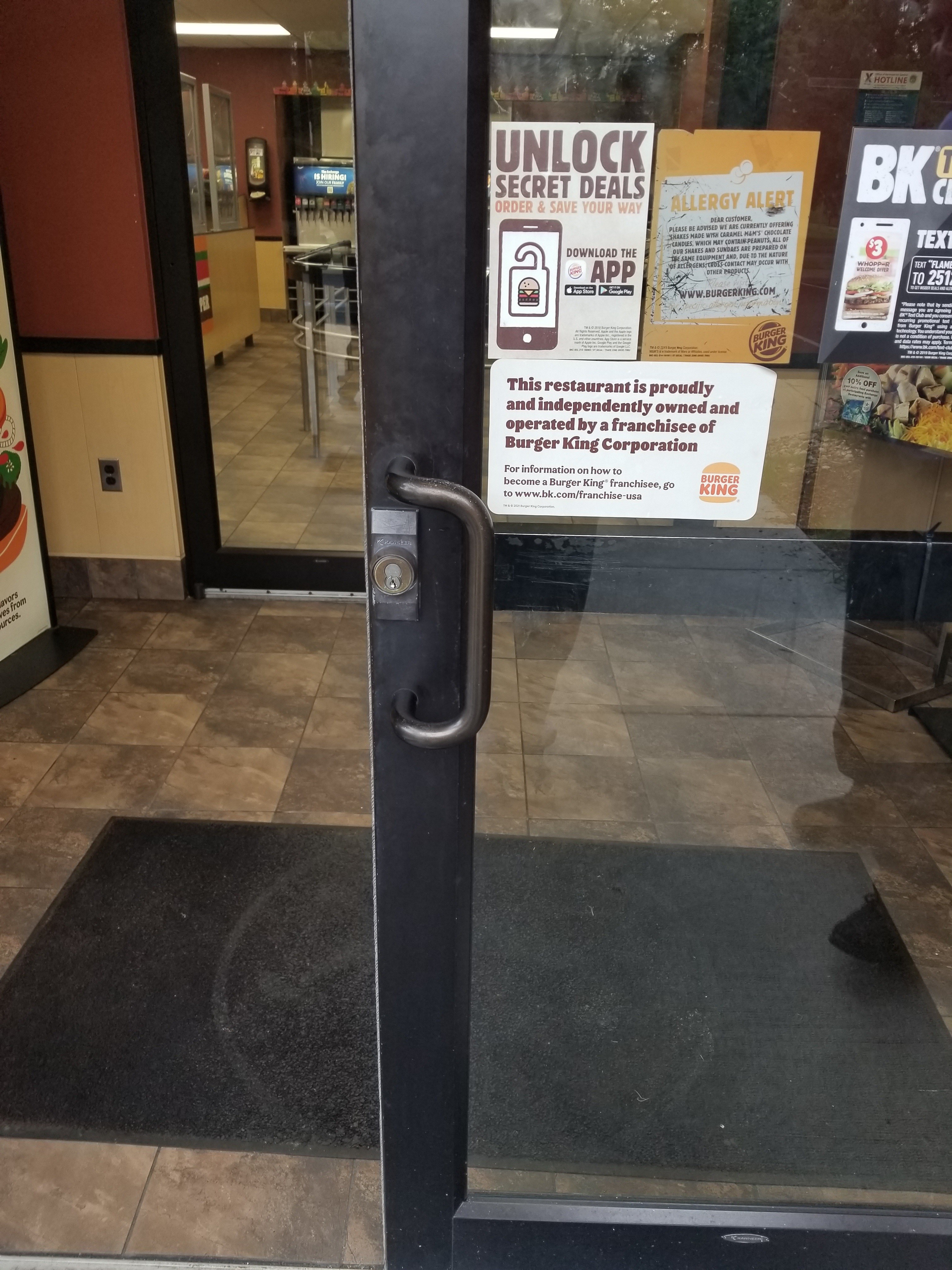

Customer Supplied Photo
