Kawneer 050423

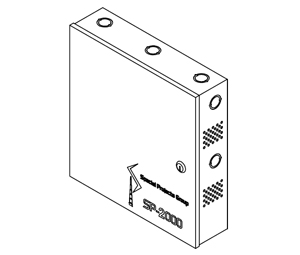

SP-2000 Power Supply for use with Paneline Motorized Electric Latch (MEL) Exit Devices
Operates up to 2 Devices

SPECIFICATIONS:
INPUT:
- Input 115VAC 60Hz, 2.5A or 230VAC, 50Hz, 1.5A.
- Two (2) NO trigger inputs.
- FACP Normally Closed (N.C.) input.
- Two normally open ADA inputs fro special mode of interfacing with automatic door operators.
- Input fuse rating: 3A.
OUTPUTS:
- Power options: Two (2) 19.8VDC to 26.4VDC individually controlled lock outputs configurable for applications with battery back-up. 24VDC to 26.4VDC rated for applications without battery back-up (US applications only). Current rating 2A combined.
- One (1) 19.8VDC to 26.4 VDC @0.8A rated filtered regulated auxiliary output for applications with battery back-up, 24VDC-26.4VDC @ 0.8A rated for applications in US not requiring battery back-up. Not affected by FACP trigger.
- One (1) 12VDC filtered regulated auxiliary output rated @ 0.5A. Not affected by FACP trigger. - Two (2) follower Normally Open relay outputs for controlling ADA actuators/accessories rated 28VDC @ 0.5A.
- Two momentary door operator activation relay outputs.
- Trouble relay output indicating low AC voltage trouble and battery trouble.
BATTERY BACK-UP:
- Requires two (2) 12V batteries to be wired in series for 24 operations.
- When 7AH batteries are used, battery capacity for emergency stand-by is 30 minutes.
- Built-in charger for sealed lead acid batteries.
- Maximum charge current 650mA.
- Automatic switch over to stand-by battery when AC fails.
- Battery PTC rating: 6A.
- Battery leads included.
VISUAL INDICATORS:
- Green AC Power LED indicates AC present.
- Red trigger output LEDs indicate panic device status/opened (activated, short circuit).
- Green Fire Alarm Interface (FAI) LED indicates FACP interface is activated.
- Red Battery LED indicates low battery during AC failure and battery test.
- Green AC LED indicates loss of AC trouble.

• Note: Batteries not included with the power controller, must be ordered separately.
