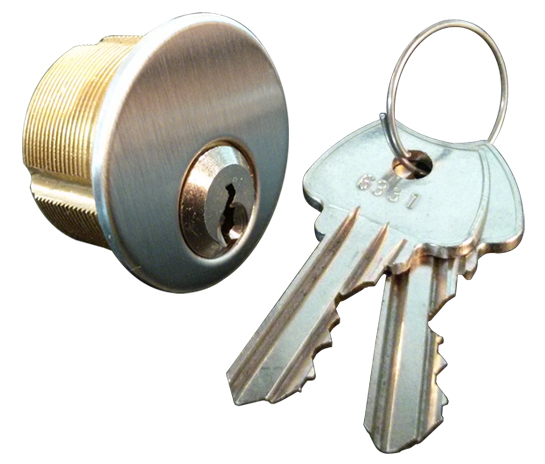

Q: Hello, I’d like to request your help. I’m interested in ordering a pair of ILCO 3/4” mortise cylinders. I already have one in possession but it’s not meeting my needs. The plug extends a fair bit out of the cylinder shell’s face. I need it to be completely flush for my installation. I’ve seen pictures from ILCO’s catalog that show the plugs being completely flush with the cylinder face, but I’m wondering if a different keyway would affect how far the plug protrudes. The one I currently have is a Lockwood keyway. I’ve attached a picture. The cylinder I currently have is 7124LA19-10B-KD The main requirements are that the 2 pieces: · 3/4’ cylinder · oil rubbed bronze (10B) · keyed alike · and preferably with Adam Rite Cam (2). Although I received this in a different Clover CAM, I happen to have 2 Adams Rite cams from other locks so am happy to swap them in if ordering the correct cam requires more leadtime from ILCO. Separately, do you carry gray magnetic catches that are relatively light pull? Thanks so much for the help!
A: Do you have a specific requirement in terms of keyway?
Q: ?Hello I have no requirements for keyway and am completely open to a different type if it means that we can get a keyway plug that's flush with the rest of the lock face.
A: The Kaba Ilco 7124 is available in only the LOCKWOOD 1004 (as it is the only one available from Kaba that features a 4 pin length cylinder) keyway and is only available with a raised, beveled profile to the face of the cylinder plug.
The 15/16" length and longer cylinders will feature a flush cylinder plug profile.
Is there any room in your design requirement? It might be possible to have custom cylinder manufacture red for you, but would expect the cost to be astronomical.
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: Hello, Would you be able to get me a pair (2) of these in 10B finish (oil-rubbed bronze), keyed alike? Thanks again
A: Our pleasure to take any order for you. Do be prepared for a 4 - 6 week lead time and if this is accepable - please contact our sales department below to process this order (and if the lead time too long, we do generally keep the satin chrome on hand).
