Jacknob JN7423

Name: Jacknob JN7423 Toilet Door Hardware Component - Surface Mount Hinge Kit
Brand: Jacknob Corp.
SKU: Jacknob JN7423
Price: 1.65 USD

Jacknob JN7423 Toilet Door Hardware Component - Surface Mount Hinge Kit

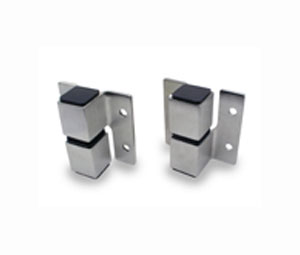

× This image is for a similar product but it will differ in size, color and/or other attributes.

Jacknob JN7423 Toilet Door Hardware Component - Surface Mount Hinge Kit

Price: $1.65 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 10-15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:


	Toilet Door Hardware Component - Surface Mount Hinge Kit, Satin Stainless Steel Finish

Two hinge sets recommended for up to 50 lbs doors
JN7100 Series are recommended by DuPont for use on Corian doors
The hand of the door is determined from the outside of the stall. Example: Facing the stall from the outside if the door swings into the stall the hinges are on the right and this is an example of a right hand in-swing
Kit includes: top hinge, bottom hinge and all necessary hardware and screws to install one door
Description: 3” H, Square Barrel
Door Type: LH In-Swing/RH Out-Swing
Material: Cast Stainless Steel
Finish: Satin Stainless Steel

Packing & Sold In: Hinge Set (Pair)
Price given $/Set (Pair)

Questions and Answers

Q: Hi, I have some toilet partition doors from floor to ceiling in phenolic laminate the doors weight is about 90lbs. My question is if I can pre-mount the hinges on the door side, line up the door with the pilasters and drill the holes and mount the screws on the pilaster? I want to use two sets of hinges per door correctly distributed on the door to help for the weight. Door size is about 60cms. X 245cms.

A: I think your approach is the standard approach to hanging partition doors.

Q: So with the two sets of hinges we will be OK?

A: My guess is , yes but since those hinges are not load rated, I cannot tell you they are correct for the width. You would also have to incorporate your panel width and frequency of volume on the opening.

A Continuous hinge would be the way I would write the hardware set.

Q: Thanks, what type of continuous hinge are you talking about for phenolic partitions?

A: I would suggest full surface perhaps spomethign not unlike the Markar FS 402 AL054 TP 54 in Spring Loaded Toilet Partition Hinge as seen here:
