International Closers 311-RVLS
International Closers 311-RVLS
International Closers 311-RVLS Hydraulic Pedestrian Gate Closer for Swinger 300 Pedestrian Gate Closer
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,221.87 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships in 3 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

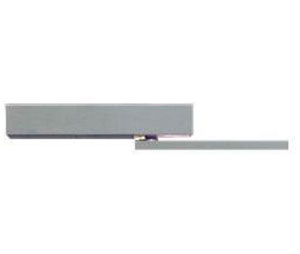

International Closers 311-RVLS Hydraulic Pedestrian Gate Closer for Swinger 300 Pedestrian Gate Closer
Hydraulic Pedestrian Gate Closer
Tough, Dependable and Vandal Resistant
2” x 4” x 12” 16 gauge galvanized Steel housing
Two Separate Closing and Latching valves adjustable after installation without removing the closer
Adjustable spring power to accommodate various size gates
Non Handed (right or left swing)
Opens to full 105 degrees
Fully adjustable top arm for proper gate alignment
Adjustable zinc plated Bottom Hinge with sealed ball bearings rated for 350 lbs. Slotted Yoke for Adjustability
Designed to close gate into its latch position without slamming
Smooth operation
Factory tested to over 1,000,000 cycles
Click to enlarge image
Product Catalog
Installation

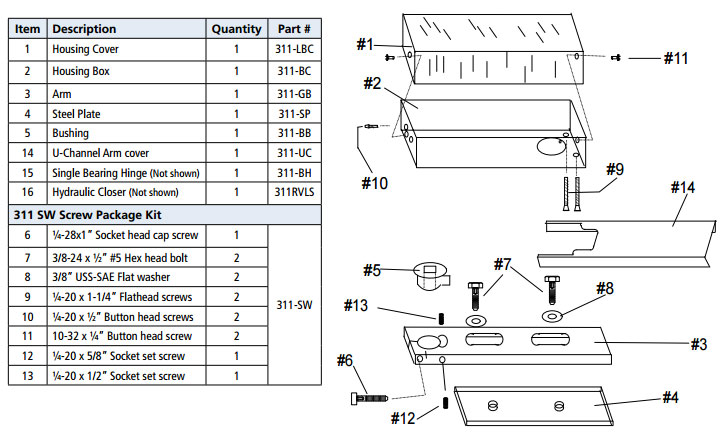

311-RVLS Parts:
Housing Cover
311-LBC
Housing Box
311-BC
Arm
311-GB
Steel Plate
311-SP
Bushing
311-BB
U-Channel Arm cover
Single Bearing Hinge
311-BH
Screw Package Kit
311-SW
Questions and Answers
Q: im looking for installing guide
A:
Please see this link to the installation instructions:
Click Here
Q: how much does this weigh
A:
According to International Door Closers the International Closers 311-RVLS Hydraulic Pedestrian Gate Closer for Swinger 300 Pedestrian Gate Closer weighs 20 lb.
Q: Is this product considered ADA compliant?
A:
This is adjustable from 5 pounds of opening force (with ZERO turns) to Medium Spring Tension (with NINE turns) and therefore would be considered ADA compliant with no adjustment.
Q: What is the warranty period for this closer?
A:
The warranty period for the International Closers 311-RVLS Hydraulic Pedestrian Gate Closer for Swinger 300 Pedestrian Gate Closer is 5 years per the cut sheet as seen here:
Download File
