International Closers 9001-TP-DU

• Adj Spring Pwr Tri-Pack Surf Mnt Door Closer
• This is a complete unit. Includes:
• Dress Cover
• Complete Arm Assembly - 901
• Parallel Bracket for Regular Arm - 525
• Thru Bolt & Grommet Nut (Set of 4 each) optional - TBGN-50
• Finish: Storefront Bronze

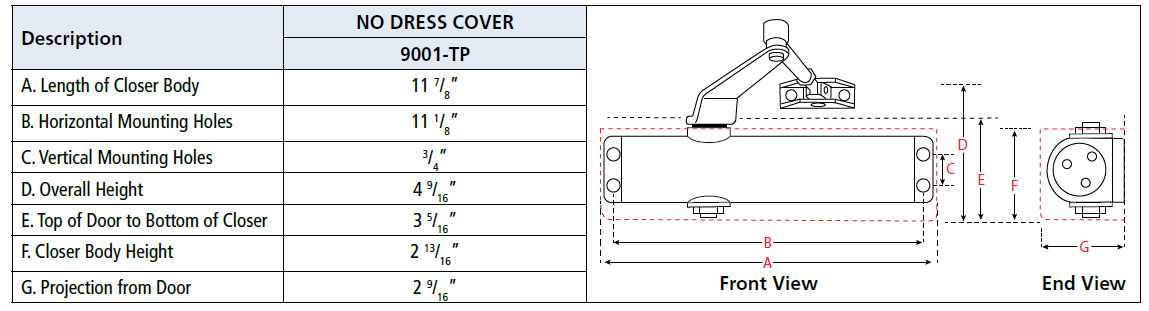

• Length of Closer Body (With Cover): 11-7/8”
• Horizontal Mounting Holes: 11-1/8”
• Vertical Mounting Holes: 3/4”
• Overall Height: 4-9/16”
• Top of Door to Bottom of Closer: 3-5/16”
• Closer Body Height: 2-13/16”
• Projection from Door: 2-9/16”
• 9001-TP replaces 9001 & 9003 models
• Adjustable spring power (1-6) Opening Force with adjustable back check and delayed action controlled by a separate regulating valve.
• ADA (Handicap) multi-sized closer with adjustable Spring Power for a range of sizes adjustable after installation.
• Two Speed Control Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Universal Application: Non handed for standard, top jamb or parallel arm installation (parallel arm bracket included).
• Rack and pinion mechanism contained in a high tensile precision cast aluminum housing.
• Stable hydraulic door check fluid for any climatic operation and constant lubrication.
• Furnished with a high impact molded PVC Dress Cover (door closer body casting is finished for use without the dress cover).
• 10 year Warranty
• ANSI/BHMA A156.4 Grade 1 Certified
• UL/C-UL Listed
• UL 10B and UL 10C Compliant for positive pressure
• Certified to Conform to UBC 7-2 (1997, UL 228)
• Barrier Free Operation to Comply with Federal Accessibility Standards (ADA): Complying with ANSI A117.1 (4.13.11)

9001-TP Series Door Closer Parts

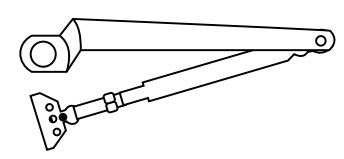

	Complete Arm Assembly	901
	Parallel Bracket for Regular Arm	525
	Thru Bolt & Grommet Nut	TBGN-50
