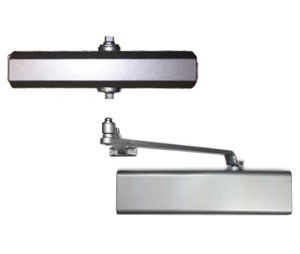

International Closers 8051-TP-H-BC AL

• Surface Mount Closer with Hold-Open Arm
• Use for 60" interior door size and 54" swing out exterior door size and 48" swing in exterior door size
• Back Check
• This is a complete unit. Includes:
• Thru Bolt & Grommet Nut (Set of 4 each) - TBGN-50
• Main Arm - 520
• Regular Forearm - 521
• Hold-Open Forearm - 522
• Parallel Bracket for Regular Arm - 525
• Dress Cover - DC-8000
• Standard with Sweep, Latching
• Adjustable Spring Power Size 1 through 6
• Cast Aluminum body; forged steel arm
• Tri-packed for regular arm, top jamb and parallel arm application
• Hold-open arms are adjustable for holding from 90° to 180°
• 8051-TP replaces 8051, 8053, 8054 & 8916 models
• Narrow design permits installation on most glass and aluminum doors without adapters
• Standard application for regular arm and Top Jamb installation; parallel arm installation
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation. (Three valves with optional back-check)
• Factory tested to meet or exceed ANSI 156.4 Grade 1
• Barrier Free operation to comply with Federal Accessibility Standards (ADA) complying with ANSI 117.1

8051-TP Series Door Closer Parts

	Thru Bolt & Grommet Nut (Set of 4 each)	TBGN-50
	Main Arm	520
	Regular Forearm	521
	Hold-Open Forearm	522
	Parallel Bracket for Regular Arm	525
	Dress Cover	DC-8000
