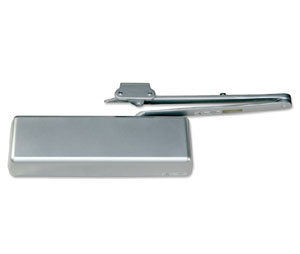

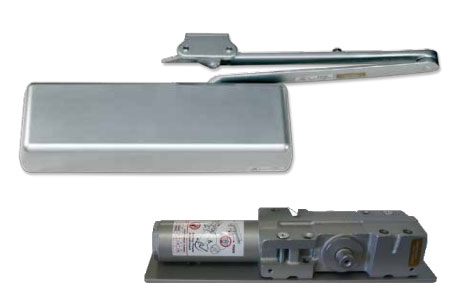

International Closers 44CI AL

• Adjustable Spring Power Surface Mount Closer
• This is a complete unit. Includes:
  • Unit Body
  • Dress Cover - DC-44
  • Complete Arm Assembly - 2021
  • Standard Arm Assembly - 44-2021
  • Parallel Bracket - 425
  • Drop Plate - 18
  • -
  • Finish: Aluminum
  • Application for HIGH TRAFFIC Doors
  • Cast Iron Body; Forged Steel Arm
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • Non-Handed
  • Non-Sized Adjustable 1 Through 6;Standard with Back Check
  • Universal Application for Regular Arm,Top Jamb, or Parallel Arm Mounting
  • Standard Plastic Cover - Non Handed
  • 10 year Warranty
  • Length of Closer Body (With Cover): 12-1/4"
  • Vertical Mounting Holes: 2-1/4"
  • Overall Height: 4-7/8"
  • Top of Door to Bottom of Closer: 3-11/16"
  • Closer Body Height: 3-1/2"
  • Projection from Door: 2-1/4"
  • ANSI/BHMA A156.4 Grade 1 Certified
  • UL/C-UL Listed
  • UL 10B and UL 10C Compliant for positive pressure
  • Certified to Conform to UBC 7-2 (1997, UL 228)
  • Barrier Free Operation to Comply with Federal AccessibilityStandards (ADA): Complying with ANSI A117.1 (4.13.11)

44CI Series Door Closer Parts

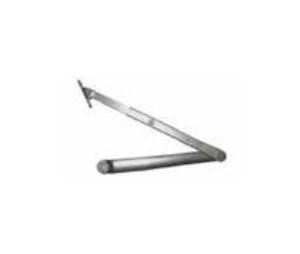

	Complete Arm Assembly	2021
	Cushion - Hold-open arm - Mechanical Turn Type	2022

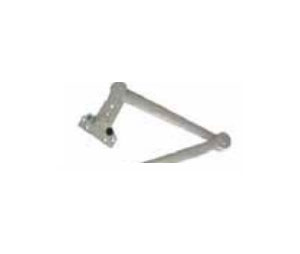

	Cushion Stop Arm	2023
	Friction Hold Open Arm	2024
	Heavy Duty Arm (EDA)	2026
	Parallel Bracket	425
	Drop Plate for Pull Side installation when top Door Rail is less than 3-3/4". Requires a 2" minimum height Door Rail.	18
	Drop Plate for Top Jamb installation when ceiling is flush to top of Header. Requires a minimum 1-3/4" header height.	18G
	Drop Plate for Top Jamb installation on Door Headers less than 3-1/2" in height.	18J
	Drop Plate for Parallel Arm installation on Door Rails less than 5-1/2" (measured down from the door stop). Requires a 2" minimum height Door Rail.	18PA
	Cush Shoe Support	44-20
