Horton C1334-2

copy to clipboard

Horton C1334-2 1" Red Handicap Switch Assembly, 4" Square

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Horton C1334-2 1" Red Handicap Switch Assembly, 4" Square
Main ImageVideo Review Horton C1334-2 1" Red Handicap Switch Assembly, 4" Square
More from Horton
Price: $132.01 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Ben Wheeler, TX Warehouse Qty: 1
Charlotte, NC Warehouse Qty: 2
Sparks/Reno, NV Warehouse Qty: 2
Standard - ships in 7 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
Horton C1334-2 1" Red Handicap Switch Assembly, 4" Square
Use for: Door Closers > Automatic Door Openers > Parts > Horton > 4000 Hercules > Swinger > 1" Red Handicap Switch Assembly, 4" Square
Use for: Door Closers > Automatic Door Openers > Parts > Horton > 7000 Easy Access > Swinger > 1" Red Handicap Switch Assembly, 4" Square
Use for: Door Closers > Automatic Door Openers > Parts > Horton > 4200 Series > Bi-Fold > 1" Red Handicap Switch Assembly, 4" Square
Use for: Door Closers > Automatic Door Openers > Parts > Horton > 7600 Series > Bi-Fold > 1" Red Handicap Switch Assembly, 4" Square
  • For use on handicap designated openings. Momentary contact microswitch assembly with 1" (25) diameter red button with junction box. Junction box is 4" (102mm) square x 1 1/2" (38) deep, molded plastic with 1/8" (3) thick blue plastic cover with raised white lettering and handicap logo. This unit may be surface mounted on the wall or a post.
  • Operates at 300Mhz
  • This is a wireless switch
  • The Surface Box, Plate (with 4 - screws), Push Button, 9v Battery and Wireless 300 Mhz Transmitter
  • For Automatic Doors
Customer Supplied Photo
Image from 2006 catalog
Customer Supplied Photo
 Horton C1334-2 1
(Click to Enlarge)
Questions and Answers
Q: Is the housing made of steel or plastic on this and if plastic, do they make a metal replacement for this?
A: It is plastic and no they do not make a metal or steel version of this unit as radio transmitters don’t work well in metal boxes.

Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with

Q: What type of batteries does this unit use?
A: The Horton C1334-2 1" Red Handicap Switch Assembly is powered by a single 9v Battery.

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

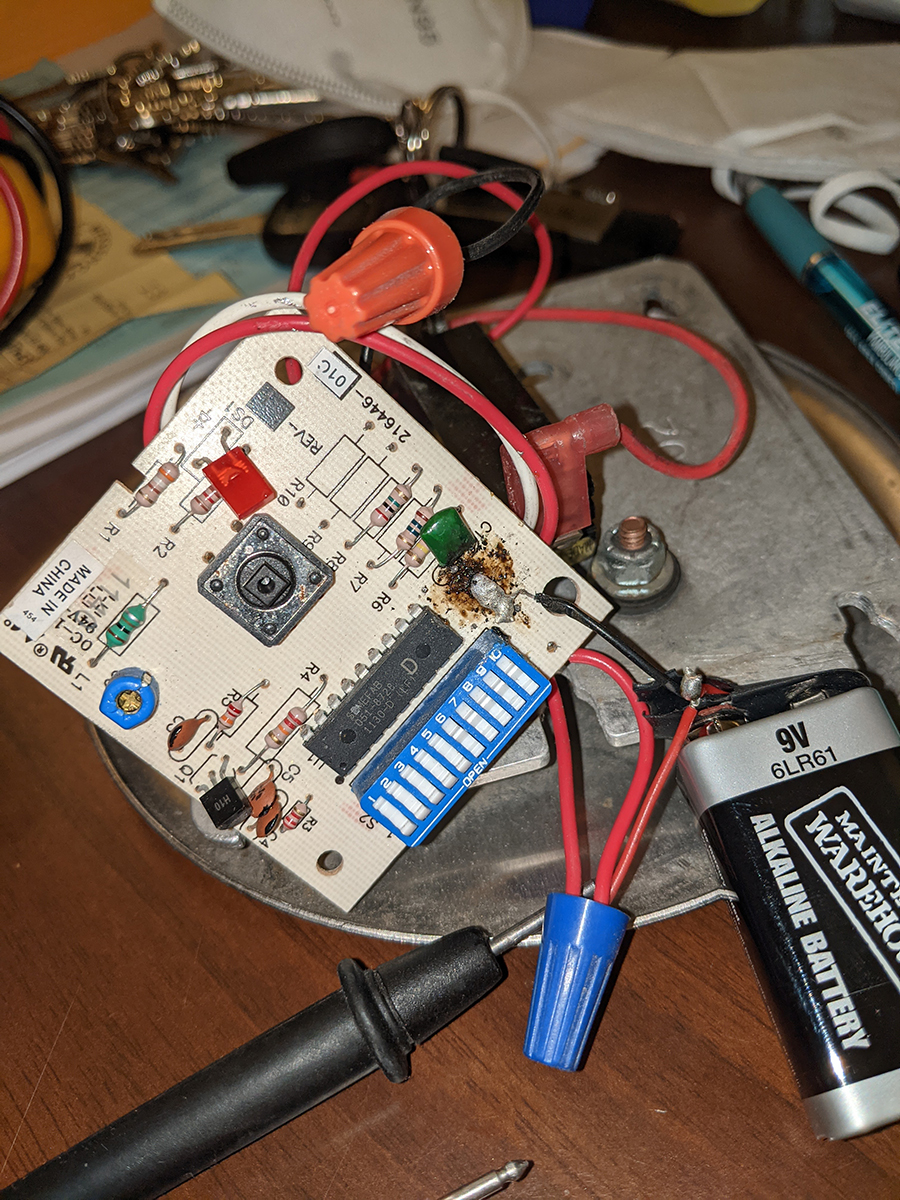

Q: I am looking at this and for the 1334-2 locate the code switch on the circuit board (see other page) what other page? I cannot locate a code #. This is a picture of what I am looking at. I assume the little white tabs need to be set but is there a correct code or any # work ( I tried different #) The light lights up when you press the buttons so I am not sure what is wrong. Let me know if you have any ideas? Thanks,
A: Per the installation instructions as seen here:

Download File

Set the Code Switches of both the transmitters and the receiver exactly the same.

Q: I'm looking for the cover only for this unit
A: The switch plate cover only for the Horton C1334-2 1" Red Handicap Switch Assembly, 4" Square is the Horton C1319-1 Switch Plate Only - C1334/1335-2 as seen here:

Click Here

Q: Is this switch adaptable to Bluetooth?
A: No - i'm not aware of any way to add bluetooth functionality to the Horton C1334-2 1" Red Handicap Switch Assembly, 4" Square.
Q: Is this product suitable for exterior use? If not is there a similar product that is weatherproof. Also I assume this can be used with an existing receiver by matching the dip switches.
A: The Horton C1334-2 1" Red Handicap Switch Assembly, 4" Square is not exterior rated.

Change your installation to the exterior rated BEA 10EMS475L Panther 4-3/4" Square Slim Profile Push Plate, Blue Handicap Logo Only as seen here:

Click Here

and replace the receiver with the BEA 10RD433 433 MHz Digital Receiver as seen here:

Click Here
