Hager 550 US26D

copy to clipboard

Hager 550 US26D Satin Chrome Single Acting - Heavy Weight Rack and Pinion

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Hager 550 US26D Satin Chrome Single Acting - Heavy Weight Rack and Pinion
Video Review Hager 497 3/4in Offset Bottom Pivot-Ball and Thrust Bearing
More from Hager
Price: $489.84 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 1
For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

1-844-809-3667

Sales
Technical Support
Product Description:

550 US26D Satin Chrome Single Acting - Heavy Weight Rack and Pinion

  • 1-3/4" (44 mm) thick doors
  • Maximum weight not over 150 pounds
  • Not to exceed 3' (914 mm) wide and 7' (2134 mm) high
  • Frame not to have door stop at head and pivot jamb
  • Consult engineering for doors other than 1-3/4" (44 mm)
  • ANSI A2792
  • Pivot opens door to 105 degree maximum
  • Non-handed
  • Concealed
  • Adjustable alignment
  • Finish: Satin Chrome (US26D)

Additional Images:
Questions and Answers
Q: can you send it to mexico?
A: Yes - in fact we ship internationally everyday.

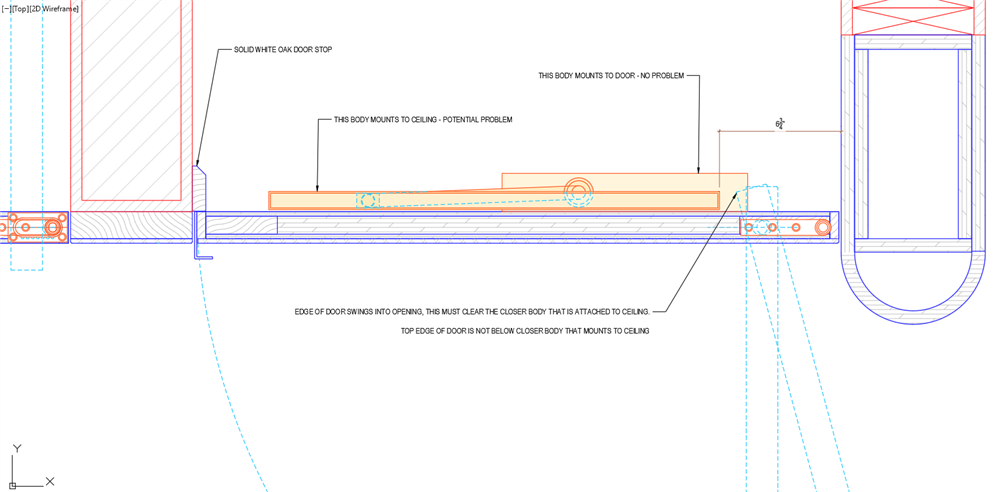

Q: Are there installation diagrams with this? Thank you
A: There are installation instructions included with this and as seen here:

Download File

I will provide technical support before, during and after your installation as well.
