Hager 47CE RH WTN ALM 1-3/4"

Name: Hager 47CE RH WTN ALM 1-3/4" Right Handed Cylinder Escutcheon with Withnell Lever - Aluminum
Brand: Hager
SKU: Hager 47CE RH WTN ALM 1-3/4"
Price: 217.68 USD

Hager 47CE RH WTN ALM 1-3/4" Right Handed Cylinder Escutcheon with Withnell Lever - Aluminum

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hager 47CE RH WTN ALM 1-3/4" Right Handed Cylinder Escutcheon with Withnell Lever - Aluminum

Price: $217.68 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

47CE RH WTN ALM 1-3/4" Right Handed Cylinder Escutcheon with Withnell Lever - Aluminum

4700 Series Trim
Applications: ideal use for standard duty commercial applications
The 4700 Series is UL305 Panic Listed and UL and cUL listed for up to 3 hour rated fire doors for the Rim device and 1-1/2 hours for the Surface Vertical Rod device. The 4700 Series Rim device also meets the requirements of ANSI A250.13 to be listed as a Severe Windstorm Resistant Component.
Function: 08 - Key locks or unlocks lever
Escutcheon: 2-5/8” x 8” (67 mm x 203 mm)

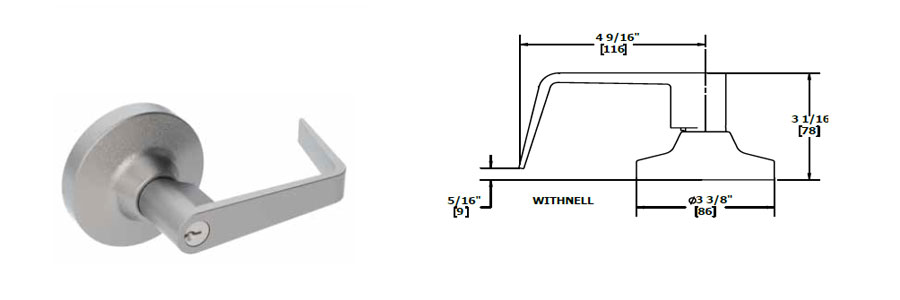

Lever Type: Withnell
Also Available Levers:
- August
- Archer
Projection: 2-7/8” (73 mm) for Archer; 2-7/8” (73 mm) for August; 2-3/4” (70 mm) for Withnell
4700 trim have steel bodies and zinc handles. The exception being US32D which is stainless
Requires the use of a mortise cylinder, 3902, sold separately
Handing: Right
Must specify handing when ordering!
For doors thicker than 1-3/4" or when used with a shim kit, specify total door thickness when ordering!
Case Quantity: 6
Finish: Aluminum
Five-year warranty
