Hager 4701 RIM F 36" ALM

Name: Hager 4701 RIM F 36" ALM 1-3/4" Thick Door Fire Rated 36" Length Standard Duty Rim Device - Aluminum
Brand: Hager
SKU: Hager 4701 RIM F 36" ALM
Price: 372.59 USD

Hager 4701 RIM F 36" ALM 1-3/4" Thick Door Fire Rated 36" Length Standard Duty Rim Device - Aluminum

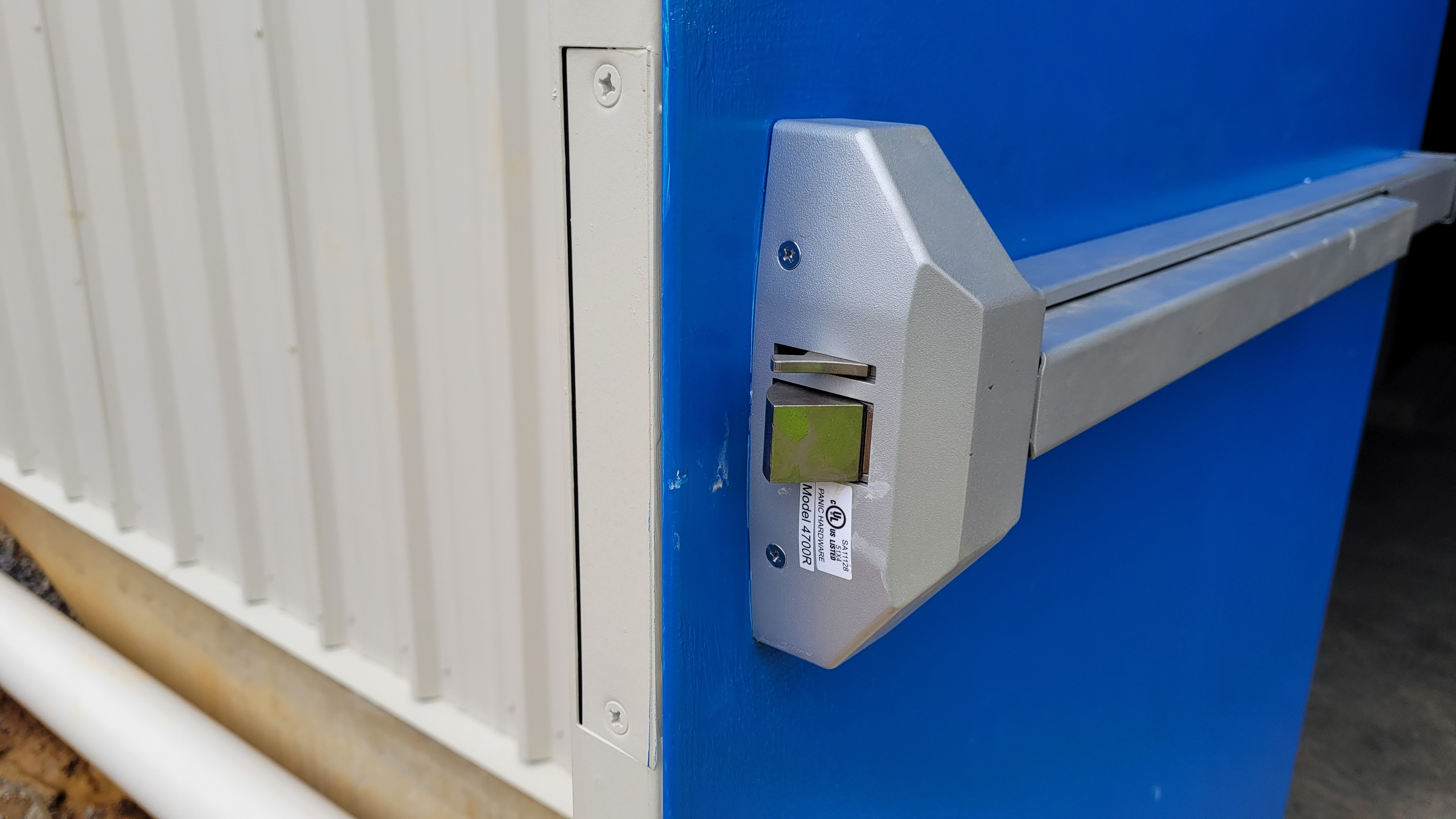

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hager 4701 RIM F 36" ALM 1-3/4" Thick Door Fire Rated 36" Length Standard Duty Rim Device - Aluminum

Price: $372.59 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hager 4701 RIM F 36" ALM 1-3/4" Thick Door Fire Rated 36" Length Standard Duty Rim Device - Aluminum

Hager 4700 Series exit device meets Life Safety codes and Fire Safety requirements providing a perfect fit for use in light commercial and standard duty applications
The 4700 Series is UL305 Panic Listed and UL and cUL listed for up to 3 hour rated fire doors for the Rim device and 1-1/2 hours for the Surface Vertical Rod device
The 4700 Series Rim device also meets the requirements of ANSI A250.13 to be listed as a Severe Windstorm Resistant Component
It is constructed with die cast head covers and is packaged for convenience and versatility with thru-bolts included
The 4700 Series has a five-year warranty for devices and trims
Product Group: 4700 Series Standard Duty Exit Devices
Product Type: Rim Device (RIM)
Rating: Fire Rated (F)
Size: 36" (914 mm) Length
Finish: Aluminum (ALM)
Door Thickness: 1-3/4" (44 mm)

Installation Instructions

Additional Product Information

4700 Series Exit Devices
Certifications:
- ANSI A250.13 Severe Windstorm Resistant Component (Rim device only
- UL/cUL Listed for up to 3 hours for "A" labeled doors
- UL10C/UBC 7-2 (1997) Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Hex dogging feature standard on non-fire labeled doors
- UL305 Listed for panic hardware
- Complies with ANSI 117.1 for accessible buildings and facilities
Applications: Light commercial and Standard duty commercial
Finishes: US3, US32D, ALM, DBZ
Covers: Casted brass, bronze, stainless steel, zinc
Cover Tube: Painted steel, plated steel, stainless steel
End Caps: Painted steel, plated steel, stainless steel
Door Width:
- 36'' (914 mm) field sizeable to 30'' (762 mm) door
- 48'' (1219 mm) field sizeable to 36'' (914 mm) door
Door Thickness: 1-3/4" (44 mm) - Standard
Stile Width:
- 4-1/2'' (114 mm) - Minimum stile width required for single door and 5/8" (16 mm) stop)
- 4-1/2'' (114 mm) - Minimum stile width required for double door x surface vertical rod device with double door strike
- 3-3/4" (95 mm) - minimum stile width required for double door x mullion x 4920 strike
- 5" (127 mm) - Minimum stile width required for double doors with 2" (51 mm) mullion
- All stile widths are measured from door edge
Trim:
- Archer, August, William or Withnell lever with escutcheon
- Archer, August, Withnell lever with key-in-lever trim
- Raised lip pull
- Pull plate trim
- Rim cylinder x optional pull
Fasteners:
- Wood and machine screws
- Thru-bolts
Latchbolt: 5/8" (16 mm) throw, pullman type with automatic dead-latching, stainless steel
Strikes:
- Stainless steel with roller - Included standard with panic and fire rated devices
- Surface applied to frame with slotted holes for easy adjustment
- Optional double door strike for use with surface vertical rod and rim devices
Projection:
- 2-7/16" (62 mm) in undogged position
- 1-3/16" (30 mm) in dogged position
Case Quantity: 3
Sold: Per Piece
Notes:
- Cylinders sold separately
- Recommended to be used on appropriately reinforced doors
