Hager 4501 LBR 0 36" x 84" US10B

Name: Hager 4501 LBR 0 36" x 84" US10B 1-3/4" Thick Door Non-Fire Rated 36" x 84" Heavy Duty Surface Vertical Rod Less Bottom Rod - Oil-Rubbed Bronze
Brand: Hager
SKU: Hager 4501 LBR 0 36" x 84" US10B
Price: 1340.45 USD

Hager 4501 LBR 0 36" x 84" US10B 1-3/4" Thick Door Non-Fire Rated 36" x 84" Heavy Duty Surface Vertical Rod Less Bottom Rod - Oil-Rubbed Bronze

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hager 4501 LBR 0 36" x 84" US10B 1-3/4" Thick Door Non-Fire Rated 36" x 84" Heavy Duty Surface Vertical Rod Less Bottom Rod - Oil-Rubbed Bronze

Price: $1,340.45 USD

ADD TO CART

This item is not in stock and typically ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


Hager 4501 LBR 0 36" x 84" US10B 1-3/4" Thick Door Non-Fire Rated 36" x 84" Heavy Duty Surface Vertical Rod Less Bottom Rod - Oil-Rubbed Bronze

Hager 4500 Series Grade 1 exit device meets Life Safety codes and Fire Safety requirements providing a perfect fit for use in commercial office buildings, medical and educational facilities, as well as hospitality structures The 4500 Series is BHMA-Certified to the requirements of ANSI 156.3 for Grade 1 exit devices and is UL 305 Panic Listed and UL and cUL Listed for up to 3 hour rated fire doors for both rim and surface vertical rod These devices have also met the requirements of ANSI A250.13 to be listed as a Severe Windstorm Component The 4500 Series exit device offers a lifetime warranty to provide peace of mind from the distributors to the building owner Product Group: 4500 Series Grade 1 Exit Devices Product Type: Surface Vertical Rod Less Bottom Rod (LBR) Rating: Non-Fire Rated (0) NOTE: Fire rated LBR devices must be ordered in pairs of vertical rod devices and with a spring loaded fire bolt, Hager #2-649-0166, to ensure the device's fire rating Size: 36" (914 mm) Door Width; 84" (2134 mm) Door Height Finish: Oil-Rubbed Bronze (US10B) Door Thickness: 1-3/4" (44 mm)	Data Sheet How to Order	Template Door Prep Installation Instructions Product Catalog

Additional Product Information

4500 Series Exit Devices Certifications: BHMA Certified ANSI A156.3 Grade 1 UL305 Listed for Panic Hardware UL/cUL Listed for up to 3 hours for "A" label single doors UL10C Positive Pressure Rated UL10B Neutral Pressure Rated Complies with ANSI A117.1 for accessible buildings and facilities Applications: Heavy Duty Commercial Finishes: US3, US4, US10, US10B, US26, US26D, US32D Covers: Stainless steel, Zinc Chassis: Aluminum End Caps: Zinc Door Width: 36'' (914 mm) field sizeable to 30'' (762 mm) door 48'' (1219 mm) field sizeable to 36'' (914 mm) door 36" (914 mm) minimum w/electric latch retraction, electric dogging, or alarm kit Door Height: 84" (2134 mm) - standard 96" (2438 mm) - optional 120" (3048 mm) - optional (panic device only) Door Thickness: 1-3/4" (44 mm) - Standard Projection: 3" (76 mm) in undogged position 2-5/8" ( 67 mm) in dogged postion Stile Width: 5-3/8" (137 mm) - minimum stile width required for single doors and standard 5/8" (16 mm) stop 4-7/8" (124 mm) minimum stile width required for double doors 4-7/8" (124 mm) minimum stile width required for double door x Rim device with double door strike All stile widths are measured form the door edge Trim: Archer, August, William or Withnell lever with escutcheon Pull plate trim (excluding 45PT) Rim cylinder x optional pull Fasteners: Wood and machine screws Thru-bolts Rod Length: Rods for 7' (2134 mm) door - standard Rods for 8' (2438 mm) door - optional Door height of 7' (2134 mm) requires 33-1/4" (845 mm) top rod length Door height of 8' (2438 mm) requires 45-1/4" (1149 mm) top rod length Extension rods kits available, 2' (610 mm) or 3' (914 mm) Latchbolt: Top - 1/2" (13 mm) throw, Pullman type with automatic dead-latching, stainless steel Strikes: Stainless steel with plated rollers - Included standard with panic devices Solid stainless steel - Included standard with fire rated devices Surface applied to frame with slotted holes for easy adjustment Double door strike for use with surface vertical rod and rim device available Dogging: Hex key dogging standard on panic rated devices Cylinder dogging available on panic rated devices, specify CD (3902 1-1/8" (29 mm) mortise cylinder sold separately) Case Quantity: 3 Sold: Per Piece Notes: Hole plug for head cover included standard Recommended to be used on appropriately reinforced doors Fire rated LBR devices must be ordered in pairs of vertical rod devices and with a spring loaded fire bolt, 2-649-0166, to ensure the device's fire rating

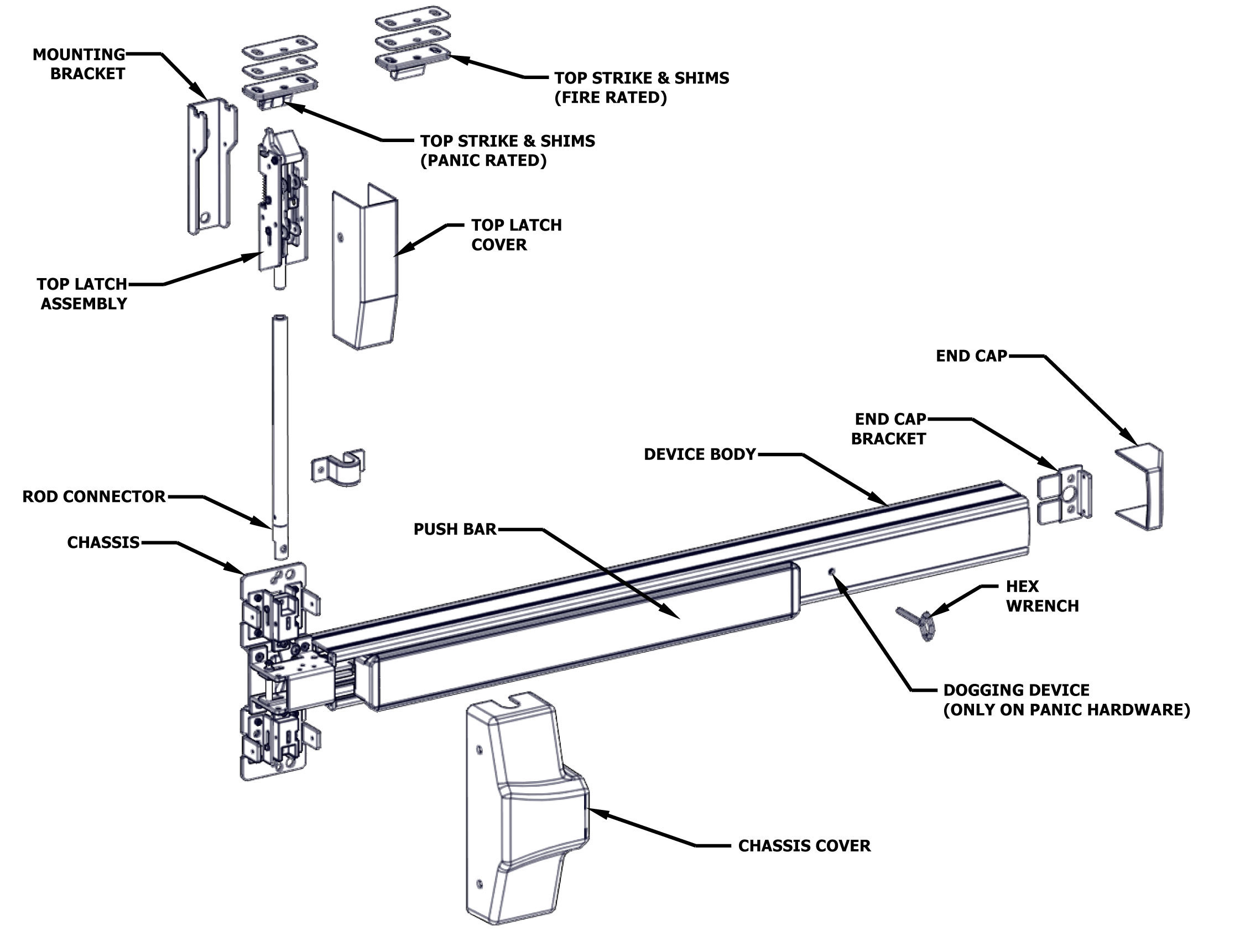

LBR Device Profile Click to Enlarge
