Hager 4501 CVR 0 36" x 84" AMC US32D
Hager 4501 CVR 0 36" x 84" AMC US32D
Hager 4501 CVR 0 36" x 84" AMC US32D 1-3/4" Thick Door Non-Fire Rated 36" x 84" Heavy Duty Concealed Vertical Rod with Anti-Microbial Coating - Satin Stainless Steel
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,896.17 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hager 4501 CVR 0 36" x 84" AMC US32D 1-3/4" Thick Door Non-Fire Rated 36" x 84" Heavy Duty Concealed Vertical Rod with Anti-Microbial Coating - Satin Stainless Steel
Hager 4500 Series Grade 1 exit device meets Life Safety codes and Fire Safety requirements providing a perfect fit for use in commercial office buildings, medical and educational facilities, as well as hospitality structures
The 4500 Series is BHMA-Certified to the requirements of ANSI 156.3 for Grade 1 exit devices and is UL 305 Panic Listed and UL and cUL Listed for up to 3 hour rated fire doors for both rim and surface vertical rod
These devices have also met the requirements of ANSI A250.13 to be listed as a Severe Windstorm Component
The 4500 Series exit device offers a lifetime warranty to provide peace of mind from the distributors to the building owner
Product Group: 4500 Series Grade 1 Exit Devices
Product Type: Concealed Vertical Rod (CVR)
Coating: with Anti-Microbial Coating (AMC)
Rating: Non-Fire Rated (0)
Size: 36" (914 mm) Door Width; 84" (2134 mm) Door Height
Finish: Satin Stainless Steel (US32D)
Door Thickness: 1-3/4" (44 mm)
Data Sheet
How to Order
Door Prep
Installation Instructions
Additional Product Information
4500 Series Exit Devices
Certifications:
BHMA Certified ANSI A156.3 Grade 1
UL305 Listed for Panic Hardware
UL/cUL Listed for up to 3 hours for "A" labeled doors up to 10' in height
UL10C Positive Pressure Rated
UL10B Neutral Pressure Rated
Complies with ANSI A117.1 for accessible buildings and facilities
Applications:
Heavy Duty Commercial
NOT recommended for single-rabbet double egress frames, with jamb depths over 5-¾" or greater. For additional information, contact Hager Companies
Finishes:
US3, US4, US10, US10B, US26, US26D, US32D. Trim not available in US32D
Covers:
Stainless steel, Zinc
Chassis:
Aluminum
End Caps:
Zinc
Door Width:
36'' (914 mm) field sizeable to 30'' (762 mm) door
48'' (1219 mm) field sizeable to 36'' (914 mm) door
36" (914 mm) minimum w/electric latch retraction, electric dogging, or alarm kit
Door Height:
84" (2134 mm) - standard
96" (2438 mm) - optional
120" (3048 mm) - optional
Door Thickness:
1-3/4" (44 mm) - Standard up to 3", except with night latch which is 2-1/2"
Projection:
3" (76 mm) in undogged position
2-5/8" ( 67 mm) in dogged postion
Stile Width:
4" (102 mm) minimum stile width required
All stile widths are measured form the door edge
Trim:
Archer, August, William or Withnell lever with escutcheon
Rim cylinder x optional pull
Fasteners:
Wood and machine screws
Thru-bolts
Rod Length:
Rods for 7' (2134 mm) door - standard
Rods for 8' (2438 mm) and 10' (3048 mm) doors - optional
Door height of 7' (2134 mm) requires 34-5/8" (879 mm) top rod length
Door height of 8' (2438 mm) requires 46-5/8" (1184 mm) top rod length
Extension rods kits available, 2' (610 mm) or 3' (914 mm)
Latchbolt:
Top - 1/2" (13 mm) throw, Pullman type with automatic dead-latching, stainless steel
Bottom - 1/2" (13 mm) throw, Pullman type, held retracted during door swing, stainless steel
Strikes:
Stainless steel with plated rollers - Included standard with panic devices
Solid stainless steel - Included standard with fire rated devices
Top strike mortised into frame
Dogging:
Hex key dogging standard on panic rated devices
Cylinder dogging is available on panic-rated devices - specify CD (3902 mortise cylinder with standard cam sold separately)
Case Quantity:
3
Sold:
Per Piece
Notes:
Center line prep is 40" (1016 mm) - If door prep elevation is lower, a longer top rod will need to be ordered
Recommended to be used on appropriately reinforced doors

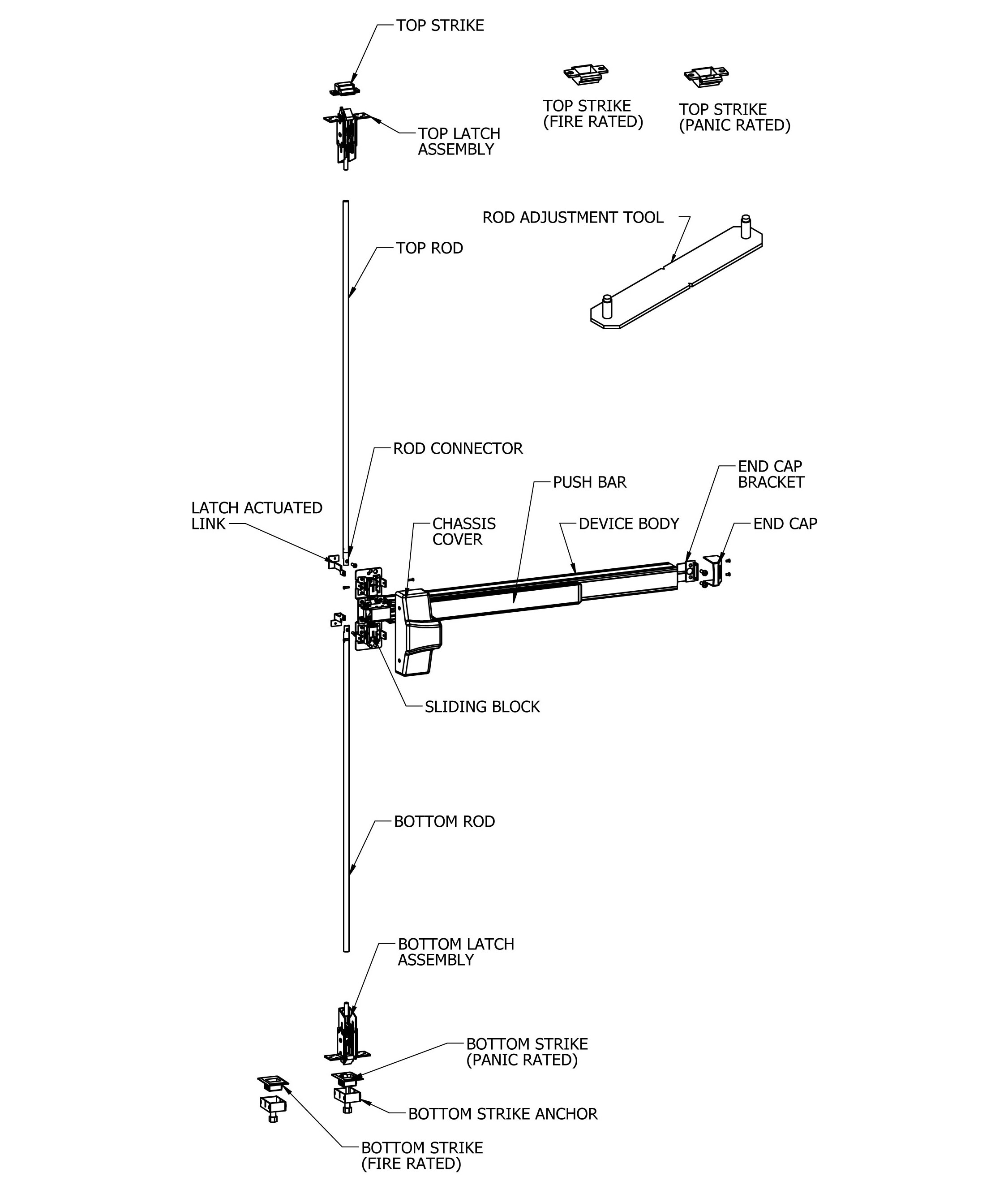

CVR Device Profile
Click to Enlarge
