Hager 3902 US26D
Hager 3902 US26D
Hager 3902 US26D Fixed Cylinder - Mortise Cylinder - Satin Chrome
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
47.28 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
3902 US26D Fixed Cylinder - Mortise Cylinder - Satin Chrome
Specify Keyway on Conventional cylinders (Schlage C and Hager Keyways standard)
Conventional cylinders are 6-pin drilled, 5-pin keyed (Hager keyways are 7-pin standard)
Thread size is 1.150" x 32 UNS
Cylinder face diameter is 1.360"
Machined from solid bar brass
Finish: US26D - Satin Chrome
Conventional Cylinder Lengths: 1-1/8" (29 mm), 1-1/4" (31 mm), and 1-5/8" (41 mm) for mortise devices.
Key markings (Standard key symbols or Non-standard code key symbols, called Visual Key Control (VKC)) and core markings can be fully reviewed here:
Keying Manual
For any questions or specifications please feel free to contact us.
Template
Cut Sheet
Product Catalog
Hager Locks Cylinders & Keying SFIC explained

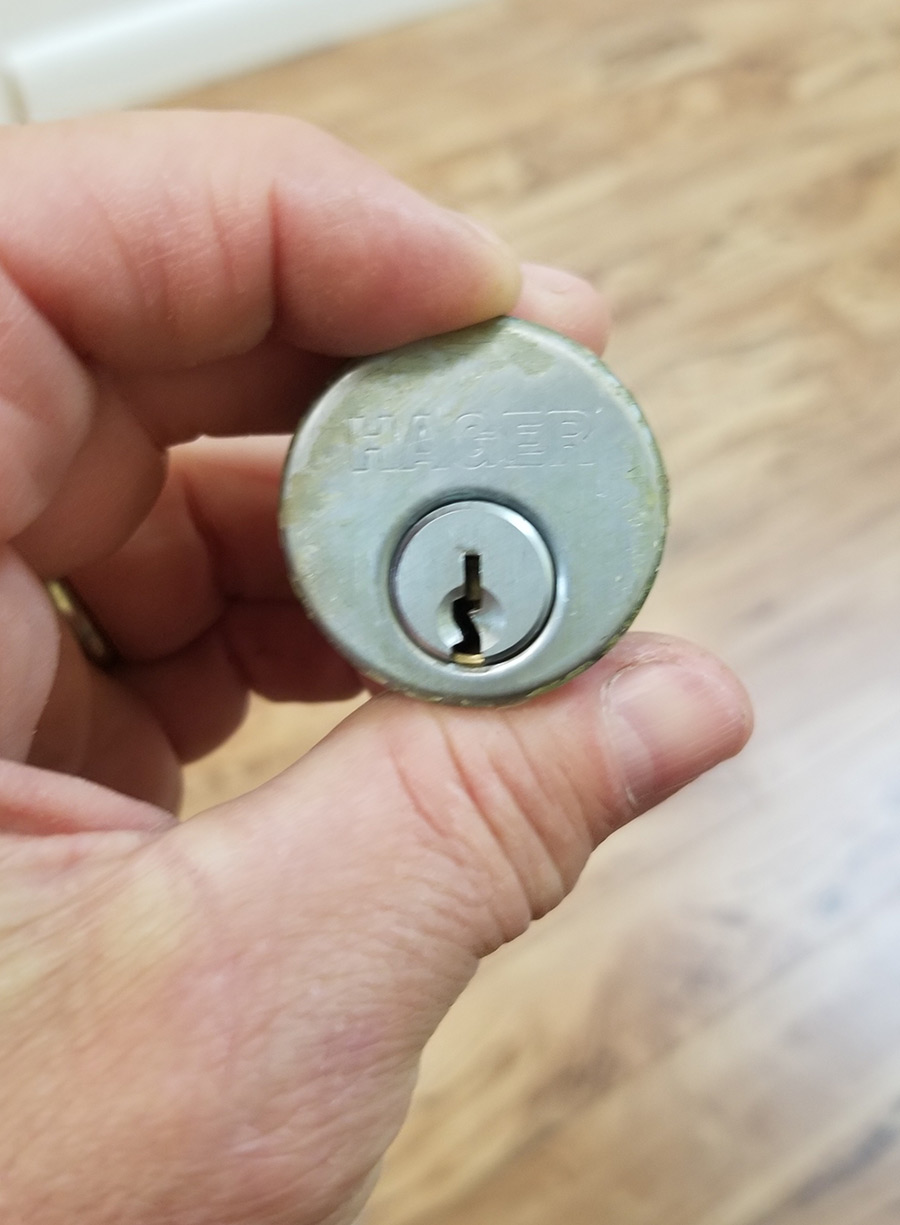

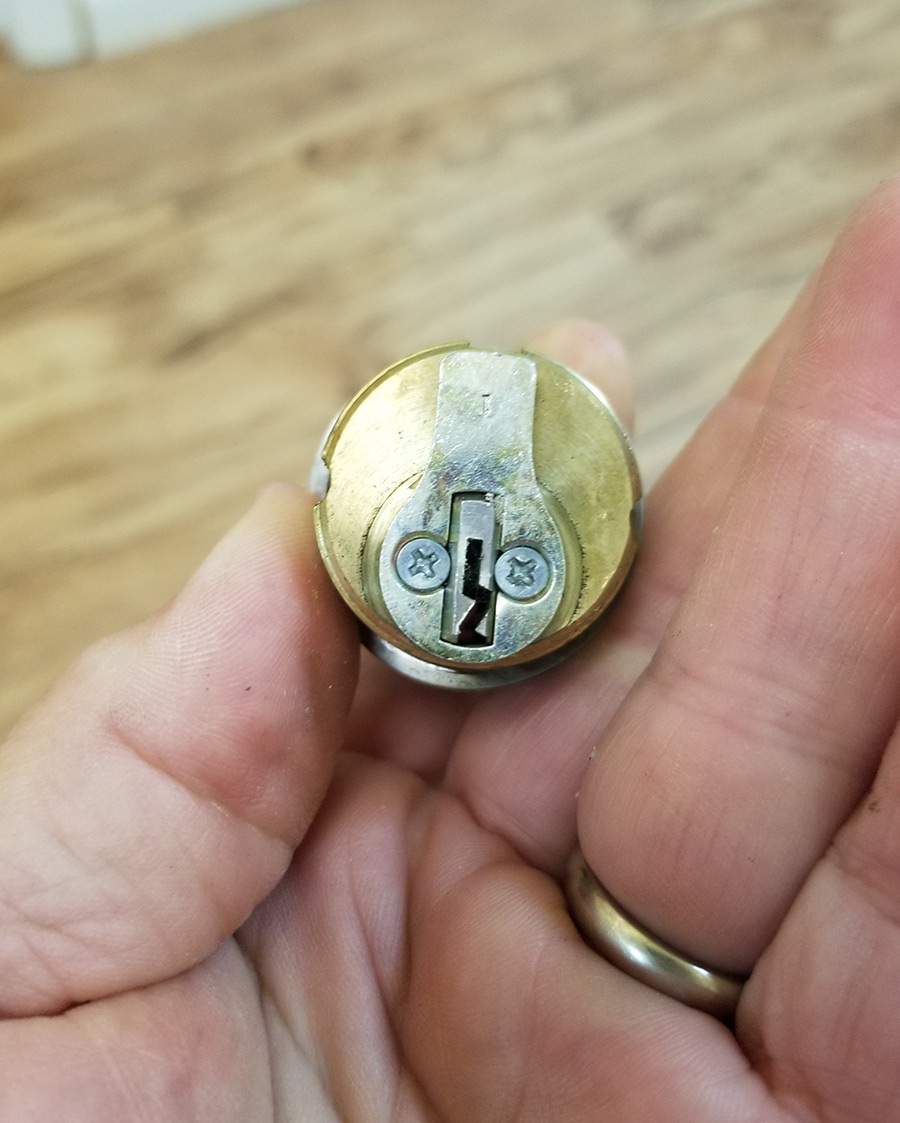

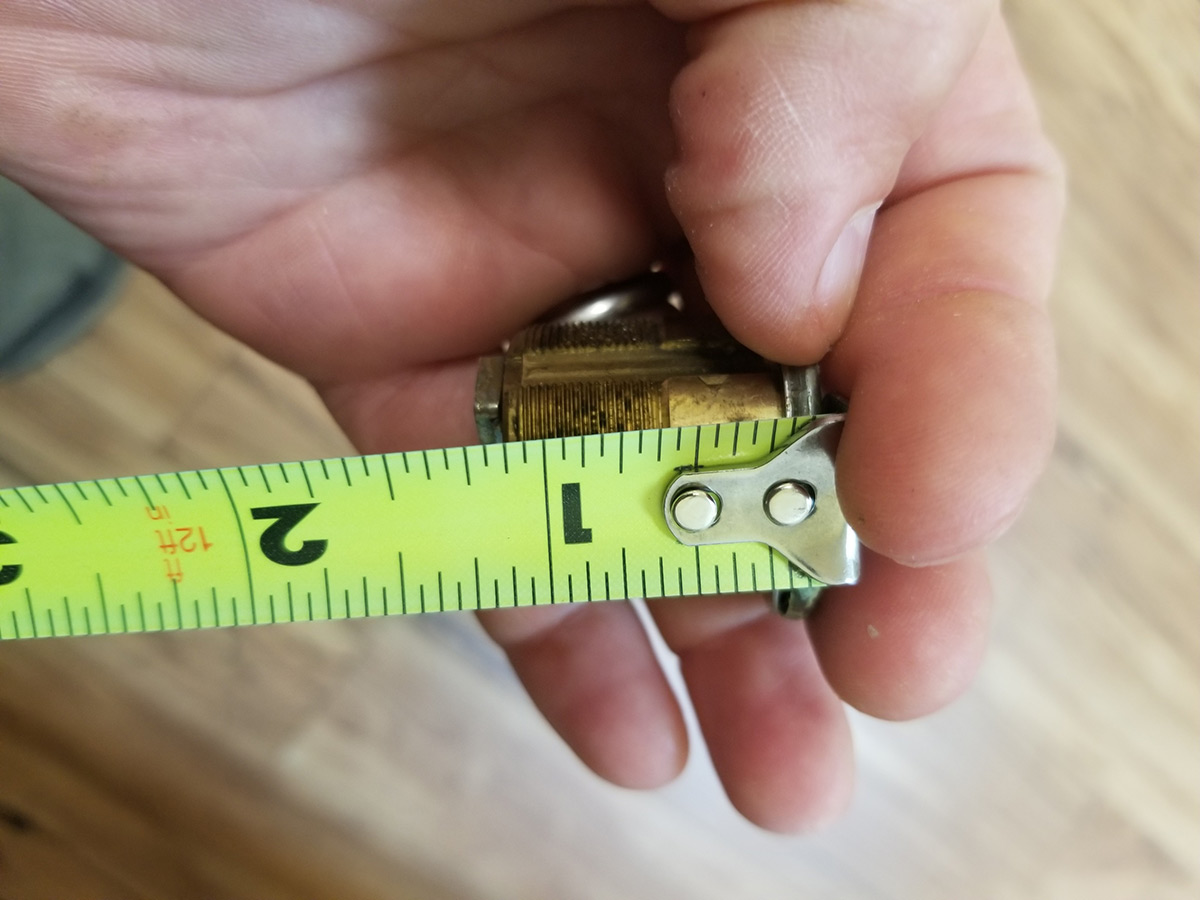

Customer Supplied Photos
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
Video Detail Page
