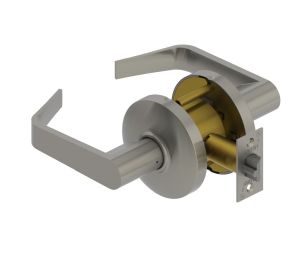

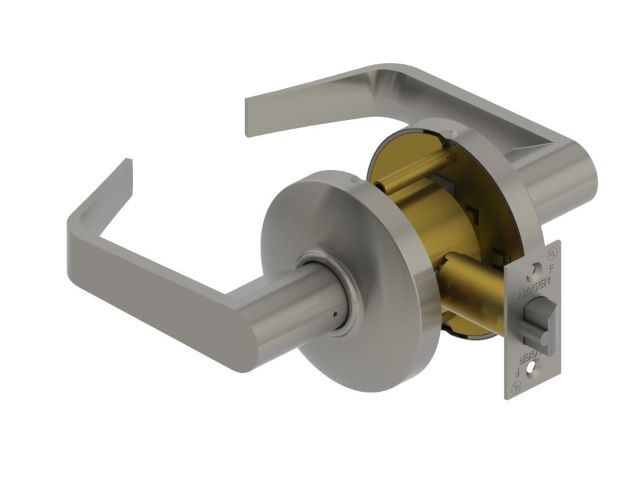

- 3500 Series Grade 2 Cylindrical Hager Lock
- Function: Classroom
- Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latchbolt is operated by inside lever.
- Lever option: Withnell Lever
- No Cylinder Keyway
- Mounting: Standard Screws
- Finish: US26D - Satin Chrome
- Strike: 3935 ASA 1-1/4" x 4-7/8" (32 mm x 124 mm) strike, standard
- Backset: Round Corner, 2-3/4" (70 mm)
- Rose Diameter: 3-11/32" (85 mm) levers
- Door Thickness: Levers: 1-3/8" - 2" (35 mm - 51 mm)
- Latchbolt:
- 1/2" (13 mm) Throw
- Stainless steel
- 1-1/8" x 2-1/4" (25 mm x 57 mm) Faceplate for 2-3/4" (70 mm) backset
- Standard Door Prep:
- 2-1/8" diameter (cross bore)
- Latch hole: 1" diameter (edge bore)
- Exposed Trim:
- Levers: cast zinc
- Rose: Wrought brass or stainless steel
- Drilled 6-pin, keyed 5-pin
- We have the most common versions of keying as selectable definable attributes up above. However we can key the 3500 series cylindrical lock anyway you like:
- Keyed to specific or existing number
- Extra Cut Keys
- Key Markings - Standard key symbols (AA1) - Visual Key Control (VKC)
- Key Markings - Non-standard code - Visual Key Control (VKC)
- Cylinder Markings
- 3998 - Bitting List - Factory Keyed
- Bitting List - Hager designed system - Keyed by others
- Lock Chassis:
- Heavy gauge steel, zinc dichromated for corrosion resistance
- Free wheeling (levers only)
- Removable thru-bolts
- Failure to install thru-bolts and removable screw posts voids BHMA certification, UL Rating, and Warranty.
- Applications:
- Standard duty commercial
- No exposed mounting screws
- Non-handed
- Certifications:
- BHMA Certified ANSI A156.2, Series 4000, Grade 2
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors (for double doors application, UL/cUL Listed when used with 3/4" latchbolt)
- ANSI A250.13 Severe Windstorm Component
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Lifetime warranty
- Split finishes are available, priced at the higher finish. Contact us if you need to order split finish for your application
- Case quantity: 6
