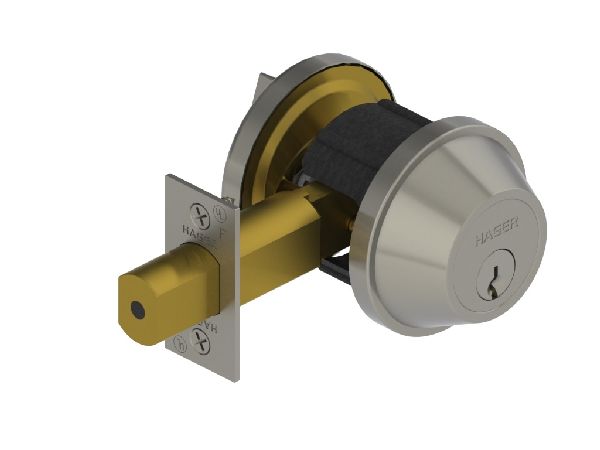

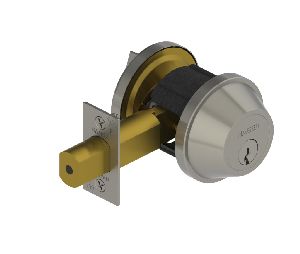

Hager 3215-IC-US26D

3215 Cylinder x Thumbturn Deadlock

• Certification:
  - BHMA Certified ANSI A156.5 Grade 2
  - ANSI A250.13 Severe Windstorm Resistant Component
  - UL/cUL Listed for all functions up to 3 hours for"A" label single doors
  - UL10C Positive Pressure Rated
  - UL10B Neutral Pressure Rated
  - ADA - Thumbturn
  - Lifetime warranty
• Exposed Trim: Wrought brass, Stainless Steel or bronze
• Mechanism: Steel, zinc dichromate plating
• Keys: Two operating keys supplied per lock
• Cylinders:
  - Brass 6-pin - Keyed Different - Schlage C Keyway - standard
  - Cylinder drilled 6 pin, Keyed 5 pin - standard
  - Other keying options, including keyed 6 pin, available from factory
  - Zero bit cylinders will be 6 pin keyed - standard
  - SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
• Door Thickness:
  - 1-3/8'' - 1-3/4'' (35 mm - 45 mm) - Standard
  - 1-3/4" (35 mm) Only - 3214 SFIC and 3216
  - 2" - 2-1/4" (51 mm - 57 mm) available for conventional cylinder - Must specify
• Backset:
  - 2-3/4'' (70 mm) - Standard
  - 2-3/8'' (60 mm) - Optional
• Latchbolt:
  - 1'' (25 mm) Throw - Brass with concealed hardened steel roller to prevent sawing or cutting
  - 2-1/4'' x 1-1/8'' (57 mm x 29 mm) square corner faceplate
• Strikes:
  - 3930 Square Corner, 1-1/8'' x 2-3/4'' (29 mm x 70 mm) with dustbox - Standard
  - 3929 ASA Deadbolt Strike - Optional
• Standard door prep:
  - Cylinder hole: 2-1/8'' (54 mm) diameter (cross bore)
  - Latch hole: 1'' (25 mm) diameter (edge bore)
• Options:
  - Split finish
  - Additional deadbolts and strikes available
• Functions: Deadbolt Key X T-Turn
• Basket: 2-3/4"
• Cylinder Type: Conventional Cylinder
• Images may not represent actual product and finish
• Manufacturer: Hager
• Security Lock UID: HAG1003215ICUS26D
• Packing & Sold as: Each
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
