Hager 2525 2-34 US10B ARC TW LL T-strike
Hager 2525 2-34 US10B ARC TW LL T-strike
Hager 2525 2-34 US10B ARC TW LL T-strike Grade 2 Cylindrical Exit Lock - 2-3/4" Backset - Archer Lever - Oil-Rubbed Bronze
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
225.14 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
2525 2-34 US10B ARC TW LL T-strike Grade 2 Cylindrical Exit Lock - 2-3/4" Backset - Archer Lever - Oil-Rubbed Bronze
2500 Series Lock
Applications:
Standard duty commercial
Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
Latch hole - 1" (25 mm) diameter (edge bore)
Exposed Trim:
Wrought brass, bronze, and stainless steel
Lever is zinc based, plated to match BHMA symbols
Lever Style: Archer Lever with Tactile Warning and Leadlined
Function: 25 - Exit
Finish: US10B - Oil-Rubbed Bronze
Case Quantity: 6
Rose Diameter: 3-11/32" (85 mm)
Door Thickness: 1-3/8" - 2" (35 mm - 51 mm)
Lock Chassis:
Heavy gauge steel, zinc dichromated for corrosion resistance
Removable thru-bolts
Failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating, and warranty
Non-Clutching levers
Backset: 2-3/4" (70 mm) standard
Latchbolt:
1/2'' (13 mm) throw, stainless steel
1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
Strike: T-strike
Drilled 6-pin, keyed 5-pin
Certifications:
ADA Compliant ANSI A117.1 Accessibility Code
UL/cUL Listed for all functions up to 3 hours "A" label single doors
UL10C Positive Pressure Rated
UL10B Neutral Pressure Rated
Meets BHMA A156.2 test standards
Notes:
One-year warranty
Interchangeable Cores are sold separately
No exposed mounting screws
Non-handed
Standard cylinder or Small Format Interchangeable Core housing available
Blank plate projection is 13/16" (21 mm) for function 25
Data Sheet
Template
Product Catalog
Installation Guide

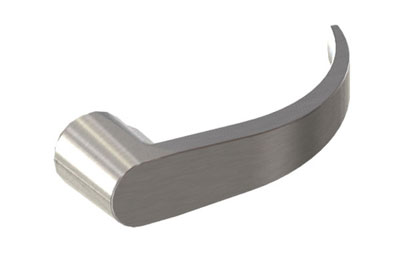

Archer Lever

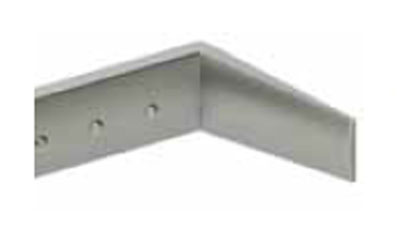

Tactile Warning
