Hager 1752 4x4 2D

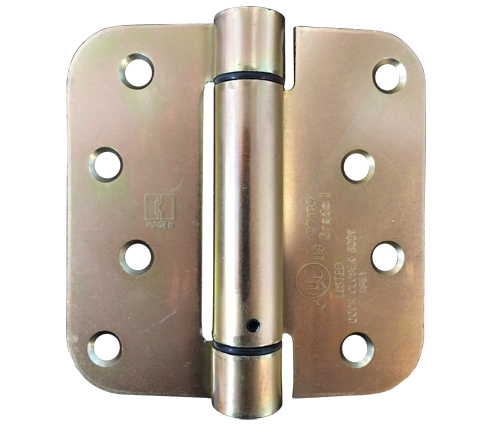

Name: Hager 1752 4x4in 2D - Brass Tone Dichromate - 04680 Single Acting Spring Hinge-Full Mortise-Residential Weight-Steel Base
Brand: Hager
SKU: Hager 1752 4x4 2D
Price: 21.66 USD

Hager 1752 4x4in 2D - Brass Tone Dichromate - 04680 Single Acting Spring Hinge-Full Mortise-Residential Weight-Steel Base

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hager 1752 4x4in 2D - Brass Tone Dichromate - 04680 Single Acting Spring Hinge-Full Mortise-Residential Weight-Steel Base

Video Review Hager 1752 4x4 2D - Brass Tone Dichromate - 04680 Single Acting Spring Hinge-Full Mortise

Price: $21.66 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 1

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

4" x 4" 2D - Brass Tone Dichromate - 04680 Residential Weight Full Mortise Steel Spring Hinge

Must be purchased in quantities of 2
Full Mortise
Steel Hinge
Gauge: .097
5/8" Radius Corners
Residential Weight
Hole Count: 8
Wood Screw Size: 1 x 9 FH
Recommended Maximum Door Weight
- 45 lbs with one spring hinge and two butt hinges
- 70 lbs with two spring hinges and one butt hinge
- 90 lbs with three spring hinges
For automatic closing of door. Light weight for residential use.
Note: Hinges provided without lubrication. Hager recommends lubricating the hinges after installation.
Note: Specifications of product in image may differ from product being sold. Read description carefully.
Note: Price is per hinge.


Template	Installation Instructions	Product Catalog

Video Review of Hager 1752 4x4 2D - Brass Tone Dichromate - 04680 Single Acting Spring Hinge-Full Mortise

Video Detail Page

Questions and Answers

Q: My door has 3 1/2 " hinges. Does Hager make that size? Also, How do I know how many self closing hinges I need? My door is a bedroom door. Not heavy at all.?

A: Hager certainly does make a 3-1/2" x 3-1/2" size as seen here :

Click Here

and I would purchase two spring hinges for your application.

Q: Why is there a 2nd pin-hole in the bottom of the hinge?

A: You might be referring to the whole that is there to keep the end of the spring in a specific location so that when you set tension you can actually set and hold a tension on a compressed spring.

Q: How do you remove a door that has these hinges? Can the hinge pin be removed like a regular door hinge, or do you have to unscrew the hinge from the door or the frame?

A: The only way to remove the hinge is to indeed unscrew the hinge from the door or the frame.
