Hager 1250 3.5x3.5 US10B

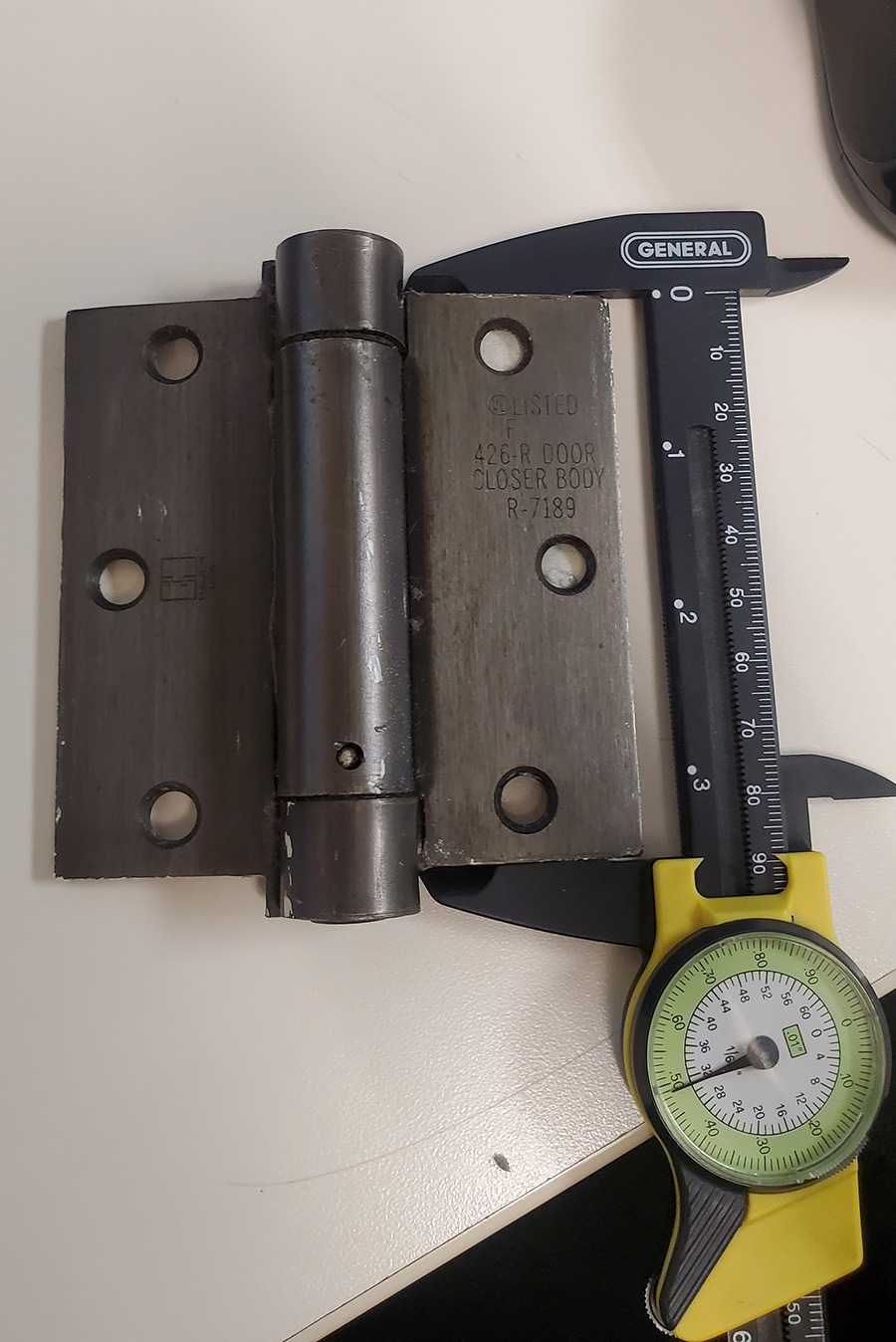

3-1/2" x 3-1/2" US10B Antique Bronze, Oiled Full Mortise Standard Weight Steel Single Acting Spring Hinge

• UL Listed
• ANSI K81071F
• Full Mortise
• Single Acting Spring Hinge
• Steel Hinge with Steel Components
• Gauge: .131
• Standard Weight
• Corners: Square
• Door Width: 1-3/8"
• Maximum Door Weight:
  • With 1 Spring Hinge and 2 Ball Bearing Hinges: 40 lbs
  • With 2 Spring Hinges and 1 Ball Bearing Hinge: 70 lbs
  • With 3 Spring Hinges: 90 lbs
• Hole Count: 6
• Screw Size:
  • Machine: 1/2 x 10-24
  • Wood: 1 x 9
• For automatic closing of door
• Meets codes for hotels, motels, institutions, and commercial buildings
• For maximum versatility, use all spring hinges or a combination of spring and ball bearing hinges. Do not use plain bearing hinges.
• Full spring tension may not be required on all hinges.
• Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges.
• Note: Specifications of product in image may differ from product being sold. Read description carefully.
