Hafele 950.10.733

Name: Hafele 950.10.733 Retractable Door Seal, KG-S, Planet, For Sliding Doors, 925 mm (36-13/32") Length, Left Hand
Brand: Hafele
SKU: Hafele 950.10.733
Price: 347.64 USD

Hafele 950.10.733 Retractable Door Seal, KG-S, Planet, For Sliding Doors, 925 mm (36-13/32") Length, Left Hand

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 950.10.733 Retractable Door Seal, KG-S, Planet, For Sliding Doors, 925 mm (36-13/32") Length, Left Hand

Price: $347.64 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 16

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 950.10.733 Retractable Door Seal, KG-S, Planet, For Sliding Doors, 925 mm (36-13/32") Length, Left Hand

Retractable door seal
Model series: KG-S
Area of application: For sliding doors without lock
Release force via floor guide, only 1 Nm per running metre of seal
Sliding door does not bounce back
Mounting: DIN left

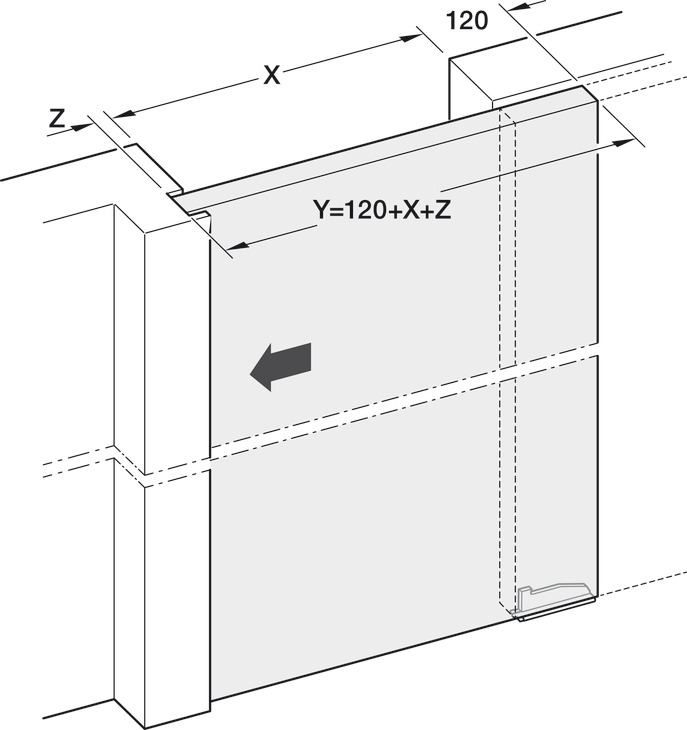

Opening width X + Z: 680 - 805 mm (26-3/4" - 31-11/16") (please check on the picture below)
Length: 925 mm (36-13/32")
Soundproofing level: 44 dB with floor gap 7 mm (9/32")
Sealing height max.: 16 mm (5/8")
Installation:
- Retractable door seal: For full mortice fitting with mounting brackets (flush or recessed)
- Floor gap: 7–16 mm (9/32" - 5/8")
- Adjustment of sealing height on release pin with SW 3 hex key
- Floor guide: With retaining plate for screw fixing
Material:
- Carrier: Aluminum
- Sealing profile: Silicone
- Floor guide: Plastic with aluminum retaining plate
Finish:
- Carrier: Bright
- Sealing profile: Gray
- Floor guide: Black
Supplied with:
- 1 Sliding door seal
- 2 Mounting brackets with screws
- 3 Floor guides for floor gap 7–10 mm (9/32" - 13/32") / 10–13 mm (13/32" - 1/2") / 13–16 mm (1/2" - 5/8")
Order reference: Individual lengths up to 6000 mm (236-1/4") available on request.
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
