Hafele 943.55.003

In the version without a floor guide, we recommend setting the gap size between the floor and the bottom edge of the door to 7 to 12 mm, since the door leaf package could otherwise come into contact with the floor because of the slightly swinging folding movement if the gap dimension is too small.

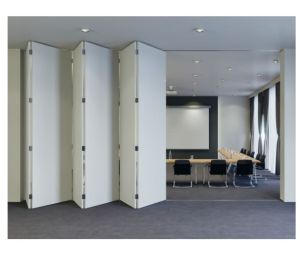

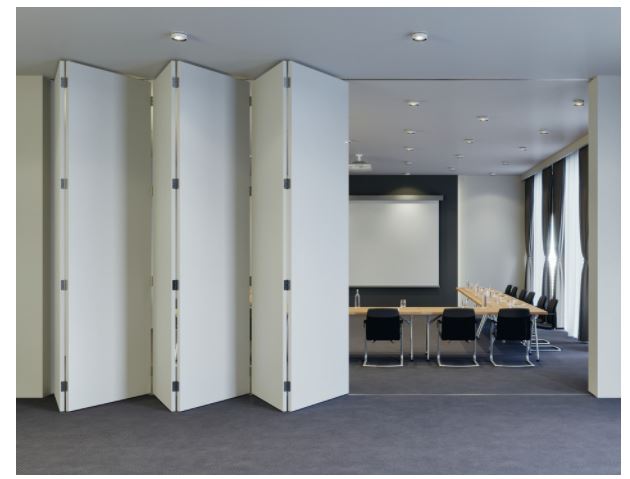

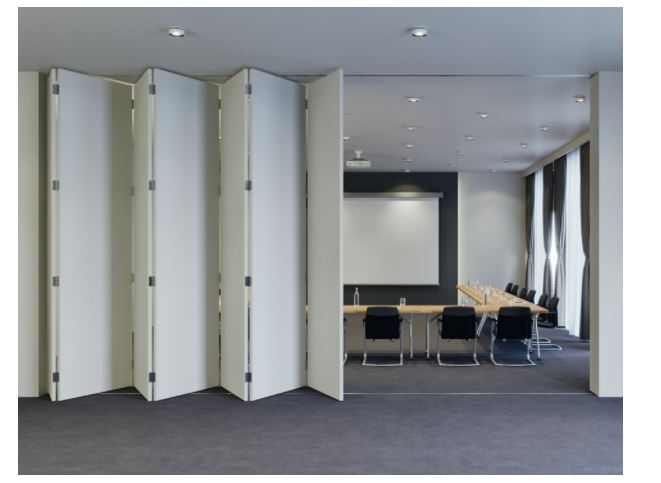

• Folding Wall Fitting
• Hafele Slido Fold 100-T
• Folding and access door fitting

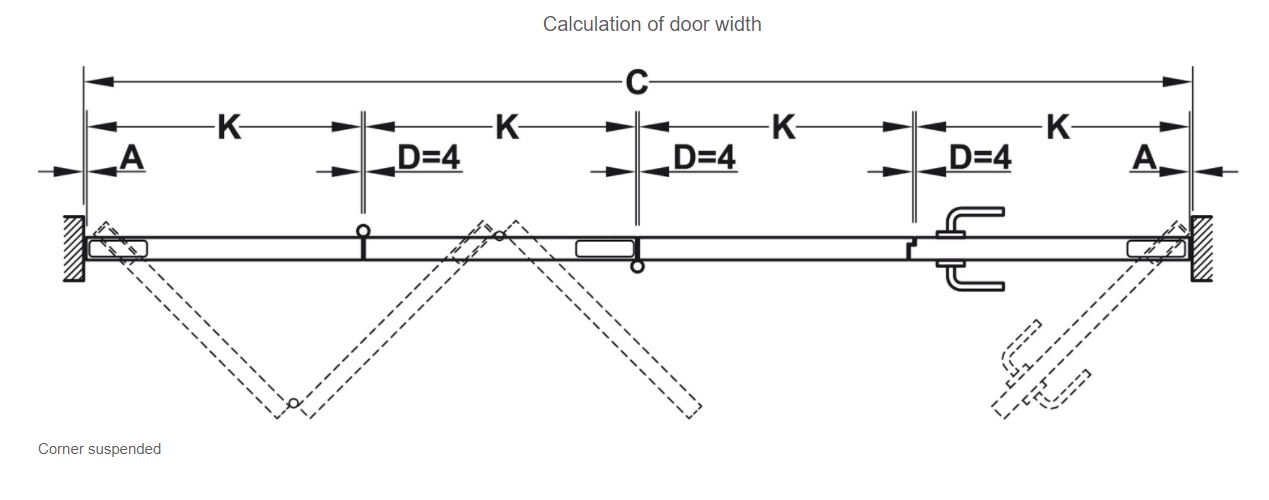

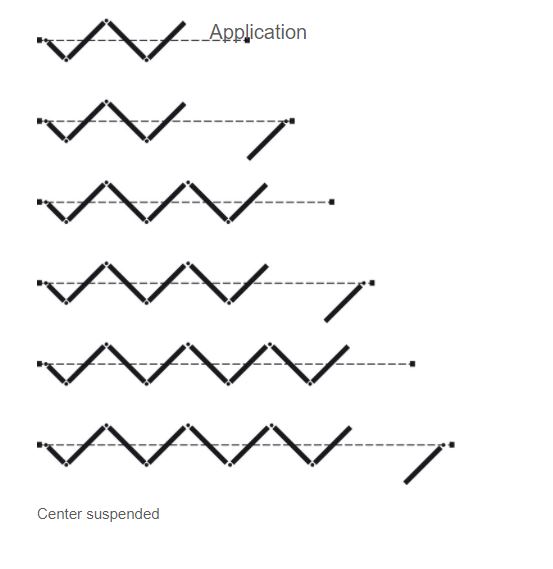

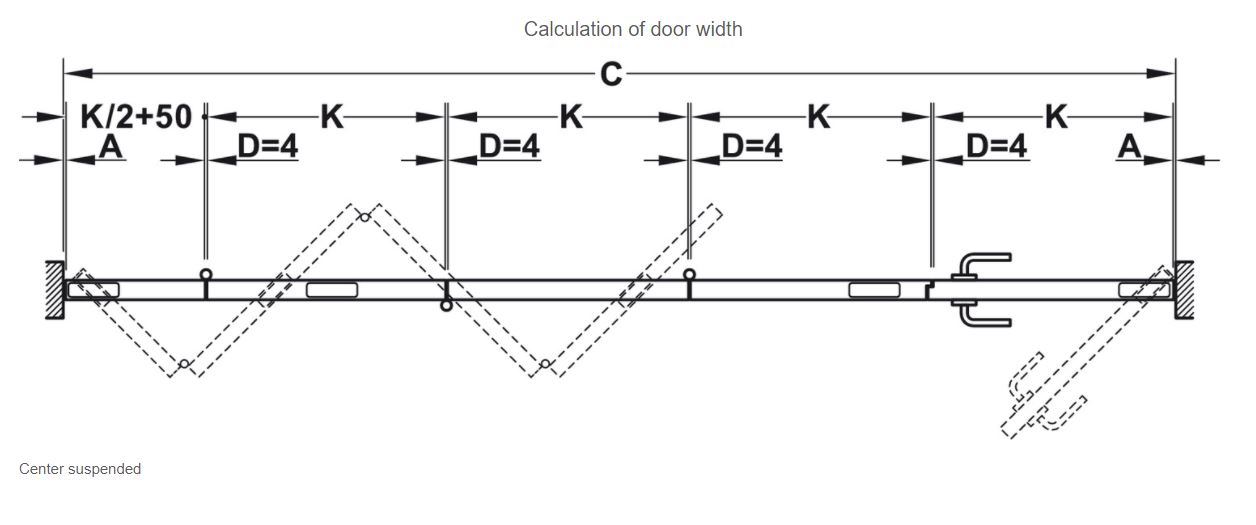

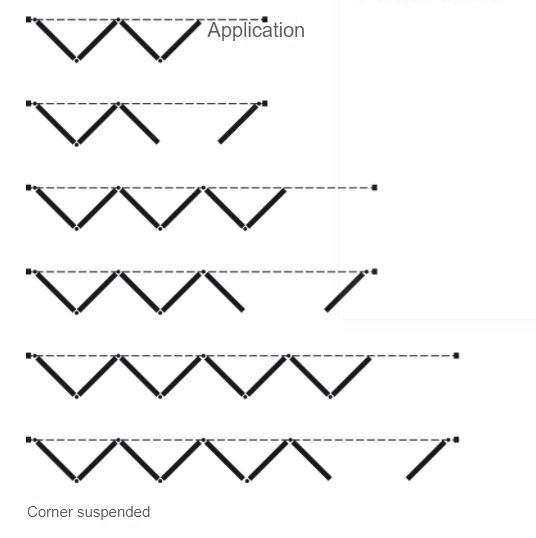

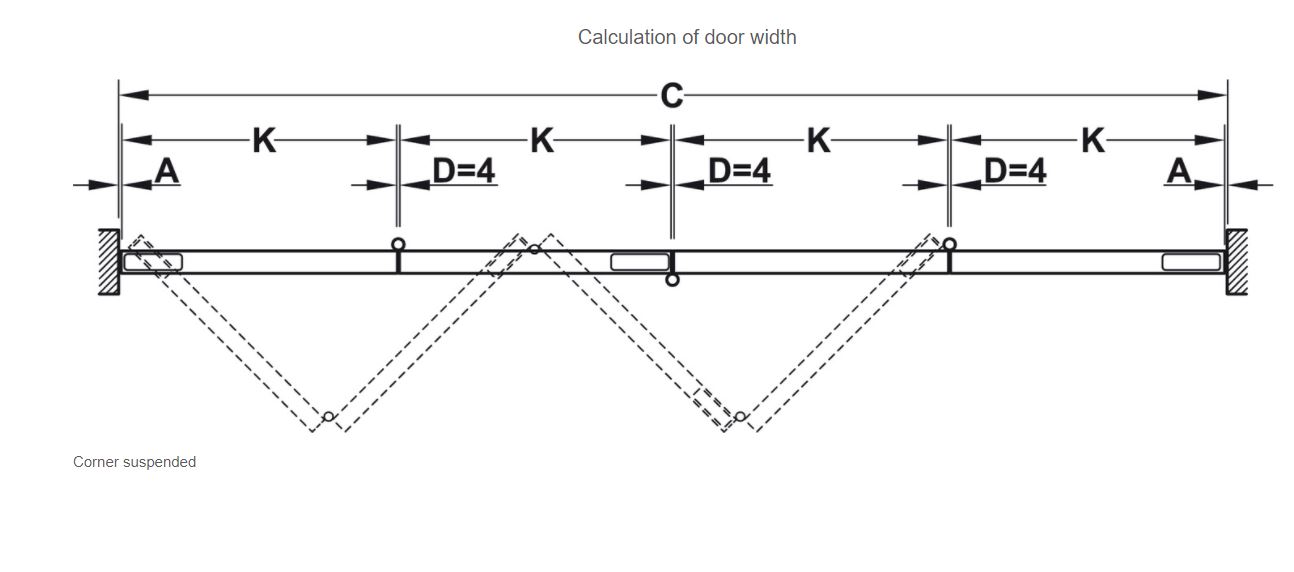

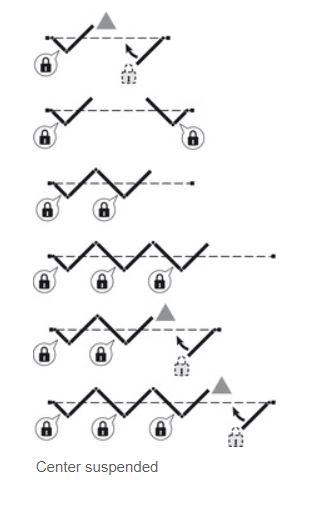

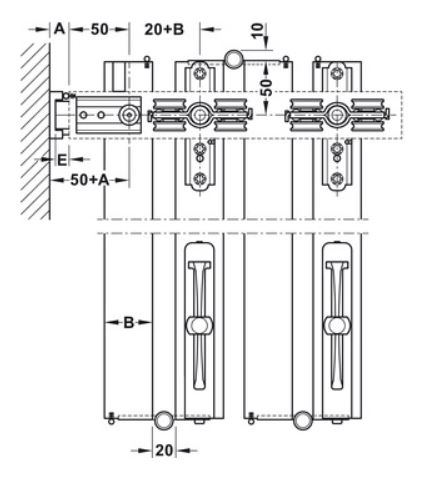

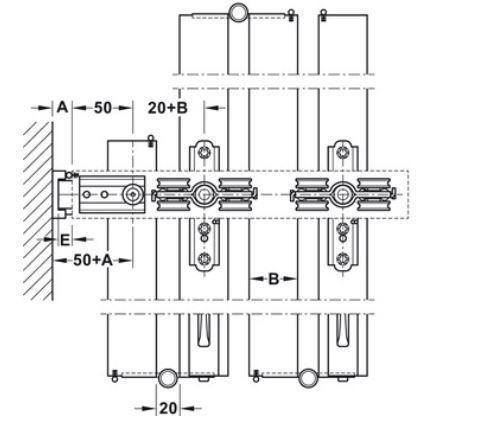

• Corner and center suspension
• Required number of hinges for each door:
  • Door height: Up to 2000 mm - Quantity: 2 pieces
  • Door height: 2001–2750 mm - Quantity: 3 pieces
  • Door height: 2751–3500 mm - Quantity: 4 pieces
• Application: For systems with bottom track
• Door weight: up to 100 kg
• Door height up to 3,500 mm
• Door width: 500-1,000 mm
• Door thickness: 35-60 mm
• Adjustment Height: ±5 mm
• Note: Other processing dimensions and further details can be found in the installation instructions.
• Internal opening width:
  • 1-sided system 6 m
  • 2-sided system 12 m
• Material:
  • Running and guide tracks: Aluminum
  • Running gear: Steel
  • Roller: Plastic
• Finish: Running and guide tracks: Silver colored anodized

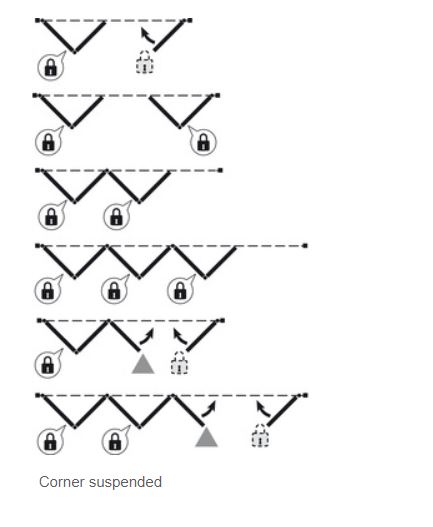

• Supplied with: 1 set of locking components for flush bolt
• Images may not represent actual product and finish.
• Packing & Sold as: Set.
• Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Running tracks, pre-drilled: 943.55.040, 943.55.041
• Guide tracks, pre-drilled: 943.55.050, 943.55.051

Optional accessories:

• Angled supporting fascia profile: 943.55.060, 943.55.061
• Floor spring: 943.55.070, 943.55.071
• Espagnolette locks: 946.21.100
• DS 9608 rebate seal: 950.09.483, 950.09.484
• Tool Set: 943.55.074
• Hexagon Socket Key: 943.55.072
