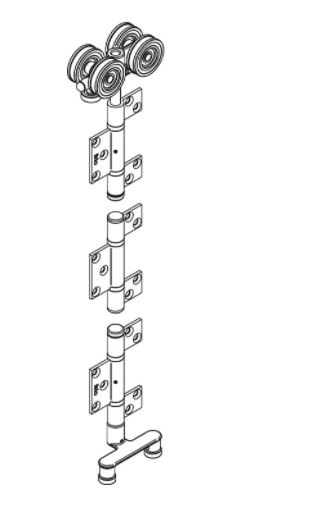

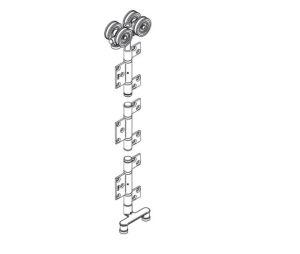

Hafele 943.34.064 Non-Mortise Intermediate Hanger Set, Al Fresco Summit, Stainless Steel, PVD Rustic Black

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Hafele 943.34.064 Non-Mortise Intermediate Hanger Set, Al Fresco Summit, Stainless Steel, PVD Rustic Black
More from Hafele
Price: $496.41 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Charlotte, NC Warehouse Qty: 5
For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
Hafele 943.34.064 Non-Mortise Intermediate Hanger Set, Al Fresco Summit, Stainless Steel, PVD Rustic Black
  • Non-Mortise Intermediate Hanger Set
  • Al Fresco Summit
  • For door width: (3' 3-3/8") 1000 mm
  • For door height: (10' 9-15/16") 3300 mm
  • For panel thickness: Non-mortise: (1-3/8 - 2-3/4") 35 - 68 mm
  • Load bearing capacity: (220 lbs.) 100 kg
  • Material: Marine grade 316 stainless steel
  • Finish: PVD Rustic Black
  • Packing & Sold as: Set.
  • Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

The above listed part is a component of the Al Fresco Summit 75/100 slding/folding hardware system. The specifcations of the Al Fresco system are:

  • Door weight: Max. (165 lbs.) 75 kg or (220 lbs.) 100 kg
  • Door height: Max. (10 9-15/16") 3.3 m
  • Door width: Max. (39-3/8") 1.0 m
  • Maximum numbers of doors: 16 (8 left/8 right)
  • Door thickness:
    • Non-mortise: (1-3/8" - 2-11/16") 35 - 68 mm
    • Mortise: (1-3/4" - 2-11/16") 44 - 68 mm
  • Full corrosion resistant construction
  • 316 marine grade stainless steel parts for improved strength and maximum corrosion resistance
  • Hardware finishes: Satin stainless, polished stainless, PVD brass, and PVD rustic black
  • Conealed channels enhances appearance
  • Mortise and non-mortise hinges and hangers available
  • Precision bearings top and bottom decrease rolling resistance
  • Ideal for coastal climates
  • For doors exceeding 2.4 m (96-1/2"), refer to spare hinges, optional jamb pivot and security aligner.
  • 150 kg (330 lbs.) option is available
